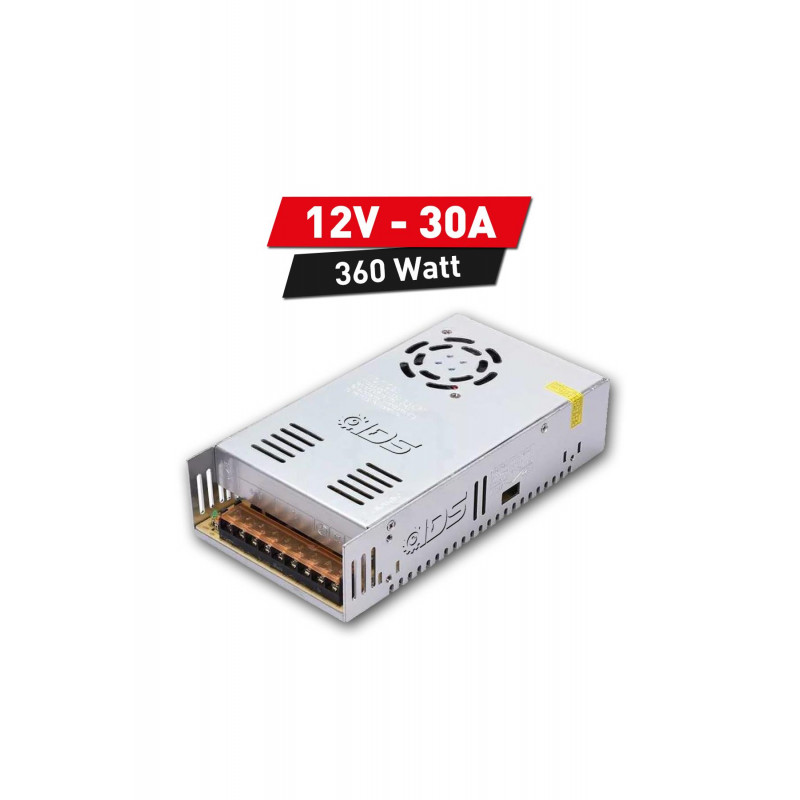

Deliver stable, high-power 12V to your projects. The DA-30A is a switch-mode power supply rated 12 V / 30 A (360 W) with a vented metal chassis and screw terminals for quick wiring. Perfect for LED strips & signage, light-box modules, CCTV cameras, instruments, 3D printers and general 12V applications. A V-ADJ trimmer provides fine output voltage adjustment.
Highlights
-
DC 12V / 30A output — 360 W continuous
-
Wide AC input 100–264V | 50/60 Hz
-
V-ADJ fine voltage trim
-
Screw terminals: L / N / PE, V− / V+ (x2)
-
IP44 for protected indoor installations
-
Rated lifetime 20,000 h | ≥15,000 on/off cycles
-
Compact size: 210 × 115 × 50 mm
Technical specs
-
Model: DA-30A (ET-31004)
-
Output: DC 12V, 30A, 360W
-
Input: AC 100–264V, 50/60 Hz
-
Ingress protection: IP44
-
Dimensions: 210 × 115 × 50 mm
-
EAN: 8056991310040
-
Importer: Europa Tek S.r.l.
-
Warranty: 2 years
Terminal layout (summary)
Input: L (live), N (neutral), PE (earth) — Output: V− / V+ / V+ — V-ADJ (trimmer).
Safety notes
-
Indoor, dry, well-ventilated use only; do not obstruct vents.
-
Always connect earth (PE). Wire with the unit disconnected.
-
Adjust V-ADJ only with load connected and a multimeter.
-
Do not exceed the 360 W rated load.
