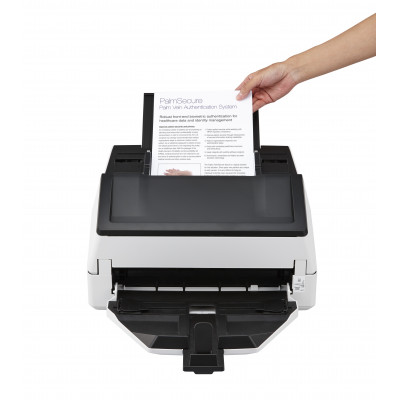

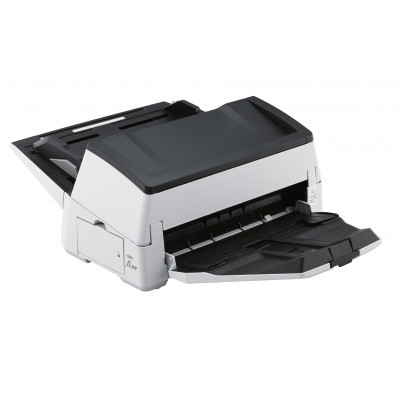

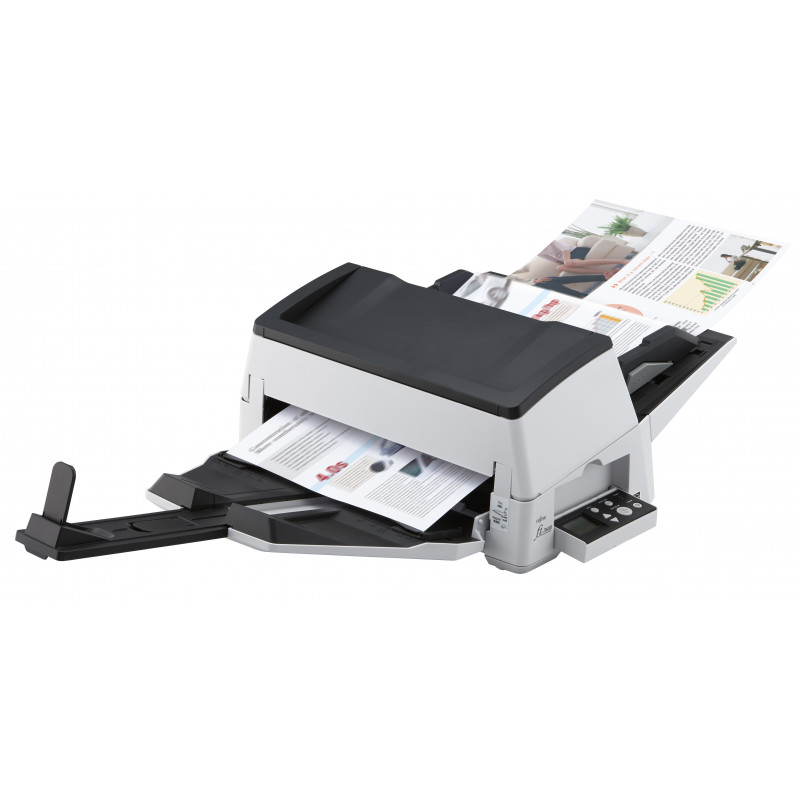

Ricoh fi-7600 ADF + Manual feed scanner 600 x 600 DPI A3 Black, White
PA03740-B501
5 Items
The fi-7600 achieves scanning speeds of 100 ppm/200 ipm (A4 landscape, color, 200/300 dpi), is capable of loading up to 300 sheets at a time and scanning up to as many as 44,000 sheets a day. With its high quality technologies and user-friendly design, the scanner is suitable for continuous high volume scanning. The scanner's ability to scan various documents such as thin paper, plastic cards, envelopes and long page documents boosts user productivity.
Ricoh fi-7600. Maximum scan size: 304.8 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF + Manual feed scanner, Product colour: Black, White, Display: LCD. Sensor type: Dual CCD, Daily duty cycle (max): 44000 pages, Light source: White LED (4x). Auto document feeder (ADF) input capacity: 300 sheets. Maximum ISO A-series paper size: A3, Scanning media types supported: Envelopes, Plain paper, Plastic Card, Thin paper, ISO A-series sizes (A0...A9): A3, A3+, A4, A5, A6, A7, A8
Ricoh fi-7600. Maximum scan size: 304.8 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF + Manual feed scanner, Product colour: Black, White, Display: LCD. Sensor type: Dual CCD, Daily duty cycle (max): 44000 pages, Light source: White LED (4x). Auto document feeder (ADF) input capacity: 300 sheets. Maximum ISO A-series paper size: A3, Scanning media types supported: Envelopes, Plain paper, Plastic Card, Thin paper, ISO A-series sizes (A0...A9): A3, A3+, A4, A5, A6, A7, A8
Scanning | |
Maximum scan size | 304.8 x 5588 mm |
Optical scanning resolution | 600 x 600 DPI |
Colour scanning | Yes |
Duplex scanning | Yes |
Output colour depth | 24 bit |
Output greyscale depth | 8 bit |
Output monochrome depth | 1 bit |
ADF scan speed (b/w, A4) | 100 ppm |
ADF scan speed (colour, A4) | 100 ppm |
Duplex ADF scan speed (colour, A4) | 200 ipm |
Black/white scanning colour modes | Grayscale, Monochrome |
Design | |
Scanner type | ADF + Manual feed scanner |
Built-in display | Yes |
Product colour | Black, White |

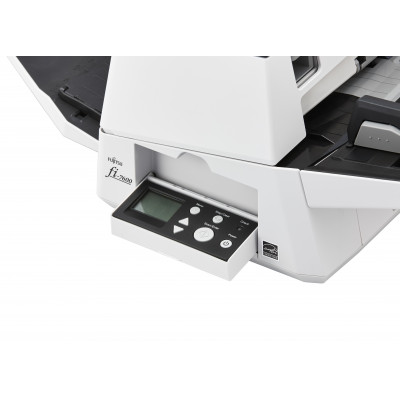

Display | LCD |
Performance | |
Sensor type | Dual CCD |
Light source | White LED (4x) |
Daily duty cycle (max) | 44000 pages |
Scan drivers | ISIS, TWAIN |
Input capacity | |
Auto document feeder (ADF) input capacity | 300 sheets |
Paper handling | |
Maximum ISO A-series paper size | A3 |
Scanning media types supported | Envelopes, Plain paper, Plastic Card, Thin paper |
Multi feed detection | Yes |
ISO A-series sizes (A0...A9) | A3, A3+, A4, A5, A6, A7, A8 |
Auto Document Feeder (ADF) media weight | 20 - 413 g/m² |
Minimum scan area (ADF) | 50.8 x 69 mm |
Ports & interfaces | |
USB port | Yes |
USB version | 3.2 Gen 2 (3.1 Gen 2) |
Socket connector type | C5 |
Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power | |
Power consumption (typical) | 64 W |
Power consumption (standby) | 0.35 W |
Power consumption (off) | 0.35 W |
Power consumption (PowerSave) | 1.7 W |
Input voltage | 100-240 V |
Weight & dimensions | |
Width | 236 mm |
Depth | 432 mm |
Height | 214 mm |
Weight | 11 kg |
Packaging data | |
Quantity per pack | 1 pc(s) |
Package width | 396 mm |
Package depth | 595 mm |
Package height | 506 mm |
Package weight | 16 kg |
Packaging content | |
Stacker | Yes |
Drivers included | Yes |
Bundled software | PaperStream Capture, PaperStream IP, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools |
Sustainability | |
Sustainability certificates | ENERGY STAR |
System requirements | |
Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Operating relative humidity (H-H) | 20 - 80% |
Other features | |
Compliance certificates | RoHS |
Selectable background colour | Yes |
Background colours | Black, White |
Logistics data | |
Country of origin | Indonesia |
Glass packaging weight | 0 g |
PA03740-B501
5 Items
Data sheet
- Product colour
- Black, White
- Optical scanning resolution
- 600 x 600 DPI
- Maximum ISO A-series paper size
- A3
- Built-in display
- Yes
- Scanner type
- ADF + Manual feed scanner
- Duplex scanning
- Yes
- Sensor type
- Dual CCD
- Daily duty cycle (max)
- 44000 pages
- USB port
- Yes
- Power supply type
- AC
- Maximum scan size
- 304.8 x 5588 mm
