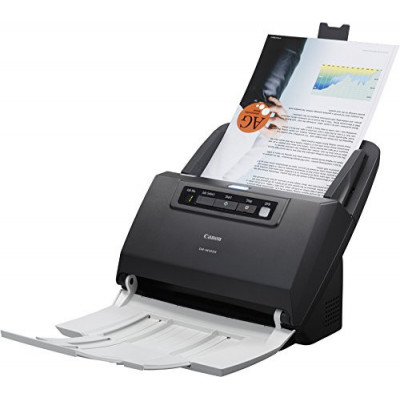

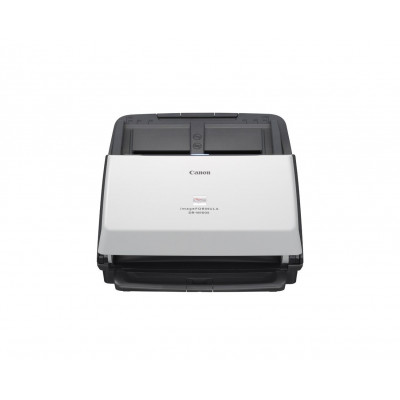

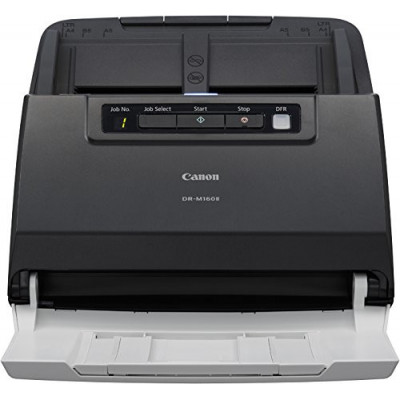

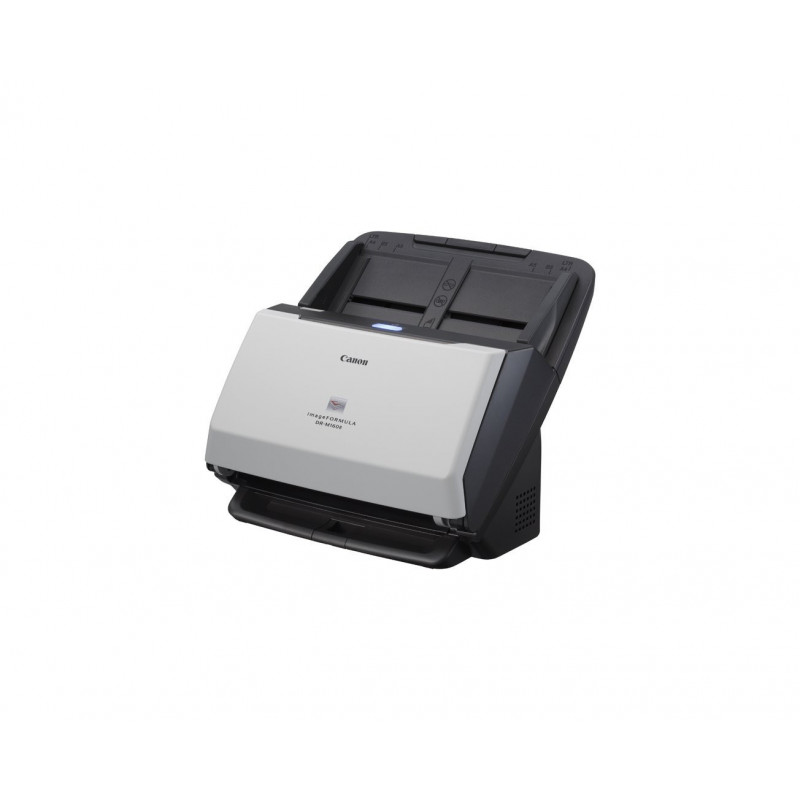

Canon imageFORMULA DR-M160II ADF scanner 600 x 600 DPI A4 Black, Grey

Well suited for workgroups and departments in any industry, the DR-M160II scanner provides the basis for efficient records management and helps reduce paperwork. It delivers capture capabilities that make it an ideal addition, especially in the legal, financial, healthcare, and government sectors.

The strength of the DR-M160II scanner is seen in its throughput, capacity, and overall performance. Scanning up to 60 pages per minute - both sides in a single pass - and holding up to 60 sheets in the ADF, it quickly captures and converts paperbased documents into usable, digital information.

Exceptional Performance:
- Scans up to 60 pages per minute
- Single-pass duplex scanning
- Both sides of a sheet in one pass
- Up to 60 sheet ADF

Usable Design:
- Simple hardware and features designed with the user in mind:
- Dimensions (H x W x D): 9.09" x 11.02" x 9.76" (with trays closed)
- Weight: 7.05 lb.
- LED control panel
- One-touch access to pre-configured customizable scan tasks
- Easy interior access for cleaning and maintenance

Reliable Feeding:
- Double-feed & non-feed prevention
- Weight 7.05 lb.
- LED control panel
- One-touch access to pre-configured customizable
- Can handle embossed plastic cards
- Can handle thick or thin sheets
- Can handle long or oversized documents

High Quality Scanning:
- Character Emphasis improves legibility
- Shadow Cropping
- Background Smoothing
- Auto Resolution setting for scanning mixed batches of text documents and photographs
- Optical Character Recognition (OCR) to help create searchable and editable information

Bundled Software Solutions:
- Windows ISIS / TWAIN and Mac TWAIN drivers
- Industry standard interfaces for connecting software applications and scanners
- Eases integration with third-party capture or content management systems
- Device sharing between Windows and Mac users
- Canon CaptureOnTouch (Windows or Mac)
- Pre-configure repetitive scan jobs
- One-touch scanning
- Intuitive user interface
- Full Auto mode
- Automatically adjusts multiple settings with a single click
- Scan to cloud applications
- Microsoft SharePoint
- Evernote
- Google Docs
- PDF/A format output
- Canon CapturePerfect 3.1 (Windows)
- Kofax Virtual ReScan (VRS) Elite (Windows)
- Nuance eCopy PDF Office Pro (Windows)
- PDF encryption and password protection

Environment In Mind:
- Meets ENERGY STAR guidelines
- Eu RoHS compliant
- WEEE compliant

Customer Care:
- One year warranty included - Advanced Exchange Service
- Optional eCarePAK extended service available

Canon imageFORMULA DR-M160II. Maximum scan size: 279.4 x 431.8 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF scanner, Product colour: Black, Grey. Sensor type: CMOS, Light source: RGB LED, Scan drivers: ISIS, TWAIN. Auto document feeder (ADF) input capacity: 60 sheets. Maximum ISO A-series paper size: A4

Scanning
Maximum scan size	279.4 x 431.8 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
Film scanning	No
Greyscale levels	8
ADF scan speed (b/w, A4)	60 ppm
ADF scan speed (colour, A4)	60 ppm
Duplex ADF scan speed (colour, A4)	120 ipm
Black/white scanning colour modes	Grayscale, Monochrome
Design
Scanner type	ADF scanner
Product colour	Black, Grey
Performance
Sensor type	CMOS
Light source	RGB LED
Scan drivers	ISIS, TWAIN
Input capacity
Auto document feeder (ADF) input capacity	60 sheets
Paper handling
Maximum ISO A-series paper size	A4
Ports & interfaces
USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0
Power
Power consumption (typical)	27 W
Power consumption (PowerSave)	1.8 W
Weight & dimensions
Width	230.8 mm
Depth	248 mm
Height	280 mm
Weight	3.2 kg
Packaging content
Drivers included	Yes
Bundled software	Canon CaptureOnTouch CapturePerfect Nuance eCopyPDF Pro Office Kofax VRS AIPE
Sustainability
Sustainability certificates	ENERGY STAR
System requirements
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Other features
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84716070
