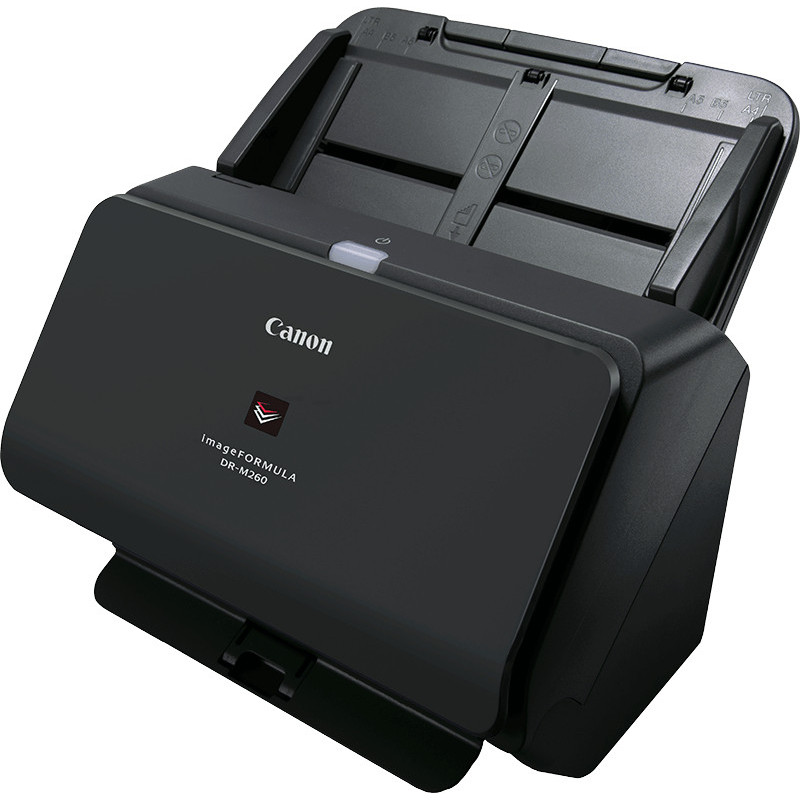

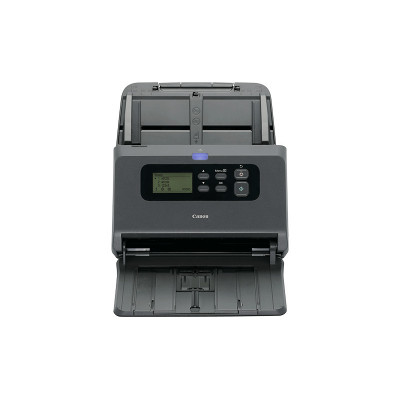

Canon imageFORMULA DR-M260 Sheet-fed scanner 600 x 600 DPI A4 Black
2405C003AB
10 Items
Robust, reliable, high-speed document scanner, offering impressive image quality and fast capture speeds.
Productivity-boosting, elegantly designed desktop scanner
The compact imageFORMULA DR-M260 has a small frame, yet produces a big performance. This dependable scanner is packed with innovative features and delivers outstanding image quality, with capture speeds of up to 60 ppm/120 ipm.
Slender, modern design
With its contemporary, compact body, the imageFORMULA DR-M260 integrates seamlessly into a wide variety of customer-facing environments.
Fast scanning speeds
The new on-board processing chip takes the strain away from PCs, unlocking scanning speeds of up to 60 ppm in black and white, and 60 ppm in full colour.
Virtuoso versatility
The DR-M260 tackles media from 27 g/m2 up to 413 g/m2, and furthers its flexible credentials by accepting credit cards, passports, and long-form documents.
Canon imageFORMULA DR-M260. Maximum scan size: 216 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: Sheet-fed scanner, Product colour: Black, Display: LCD. Sensor type: CMOS CIS, Daily duty cycle (max): 7500 pages, Light source: RGB LED. Standard input capacity: 80 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), Media thickness (min): 0.04 mm
Productivity-boosting, elegantly designed desktop scanner
The compact imageFORMULA DR-M260 has a small frame, yet produces a big performance. This dependable scanner is packed with innovative features and delivers outstanding image quality, with capture speeds of up to 60 ppm/120 ipm.
Slender, modern design
With its contemporary, compact body, the imageFORMULA DR-M260 integrates seamlessly into a wide variety of customer-facing environments.
Fast scanning speeds
The new on-board processing chip takes the strain away from PCs, unlocking scanning speeds of up to 60 ppm in black and white, and 60 ppm in full colour.
Virtuoso versatility
The DR-M260 tackles media from 27 g/m2 up to 413 g/m2, and furthers its flexible credentials by accepting credit cards, passports, and long-form documents.
Canon imageFORMULA DR-M260. Maximum scan size: 216 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: Sheet-fed scanner, Product colour: Black, Display: LCD. Sensor type: CMOS CIS, Daily duty cycle (max): 7500 pages, Light source: RGB LED. Standard input capacity: 80 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), Media thickness (min): 0.04 mm
Scanning | |
Maximum scan size | 216 x 5588 mm |
Optical scanning resolution | 600 x 600 DPI |
Colour scanning | Yes |
Duplex scanning | Yes |
Output colour depth | 24 bit |
Output greyscale depth | 8 bit |
Greyscale levels | 256 |
ADF scan speed (b/w, A4) | 60 ppm |
ADF scan speed (colour, A4) | 60 ppm |
Duplex ADF scan speed (colour, A4) | 120 ipm |
Design | |
Scanner type | Sheet-fed scanner |
Built-in display | Yes |
Product colour | Black |
Display | LCD |
Performance | |
Sensor type | CMOS CIS |
Light source | RGB LED |
Scan file formats | |
Daily duty cycle (max) | 7500 pages |
Scan drivers | ISIS, TWAIN |
Input capacity | |
Standard input capacity | 80 sheets |
Paper handling | |
Maximum ISO A-series paper size | A4 |
Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
Media thickness (min) | 0.04 mm |
Maximum scan width | 21.6 cm |
Maximum scan length | 5.59 m |
Ports & interfaces | |
USB port | Yes |
USB version | 3.2 Gen 2 (3.1 Gen 2) |
Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
Power | |
Power consumption (typical) | 23 W |
Power consumption (standby) | 1.4 W |
Power consumption (off) | 0.1 W |
AC input frequency | 50 - 60 Hz |
Input voltage | 100-240 V |
Weight & dimensions | |
Width | 180 mm |
Depth | 178 mm |
Height | 285 mm |
Weight | 3.6 kg |
Packaging content | |
AC adapter included | Yes |
System requirements | |
Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
Other features | |
Scan media weight | 27 - 413 g/m² |
Logistics data | |
Harmonized System (HS) code | 84716070 |
2405C003AB
10 Items
Data sheet
- Product colour
- Black
- Optical scanning resolution
- 600 x 600 DPI
- Maximum ISO A-series paper size
- A4
- Built-in display
- Yes
- Scanner type
- Sheet-fed scanner
- Duplex scanning
- Yes
- Sensor type
- CMOS CIS
- Daily duty cycle (max)
- 7500 pages
- USB port
- Yes
- Power supply type
- AC
- Maximum scan size
- 216 x 5588 mm
