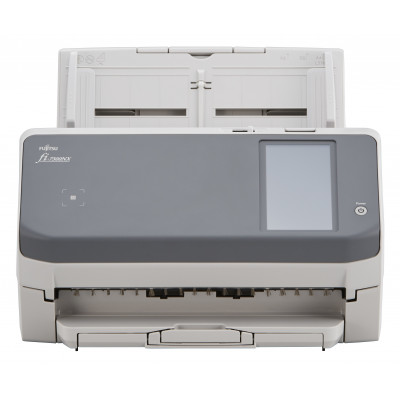

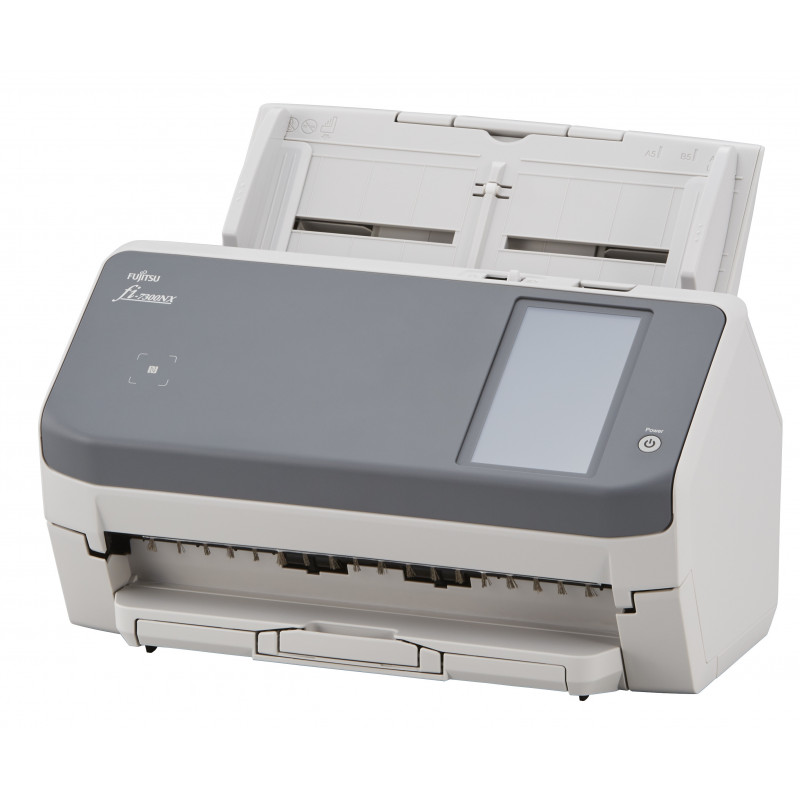

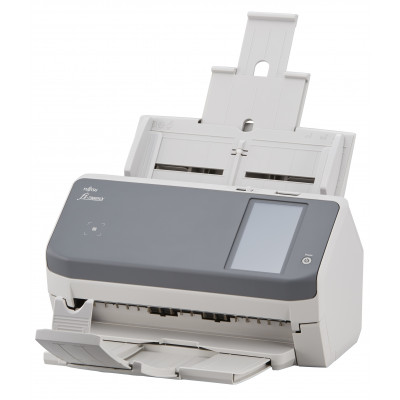

Ricoh fi-7300NX ADF scanner 600 x 600 DPI A4 Grey, White

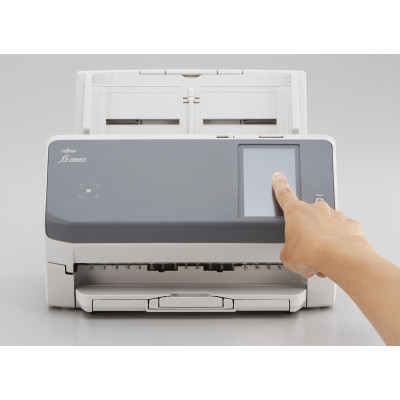

The fi-7300NX is an Image Scanner that supports web systems and connects directly to client systems. Users can begin scanning from the scanner’s touch screen or from various applications on smart devices to suit all business needs. Not only is direct data transfer to client-unique web systems possible with SDK use, but secure data transfer is also possible with strong data encryption. The fi-7300NX boasts a speed of 60 ppm/120 ipm (200/300 dpi) for scanning A4 portraits, loads up to 80 sheets at a time, and ensures utmost efficiency as the first standalone* scanner in the world to support 5 GHz Wi-Fi. The 4.3” touch screen enables users to perform operations intuitively, like scanning and data checking, with thumbnail reviews of scans and the screen also displays messages or instructions with illustrations so that users can handle errors themselves.

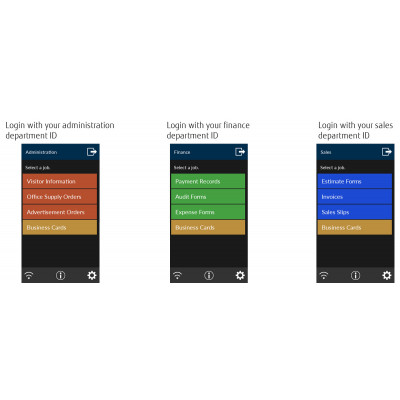

Users can scan and save documents without any requirement for a local computer, they can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX’s touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user.

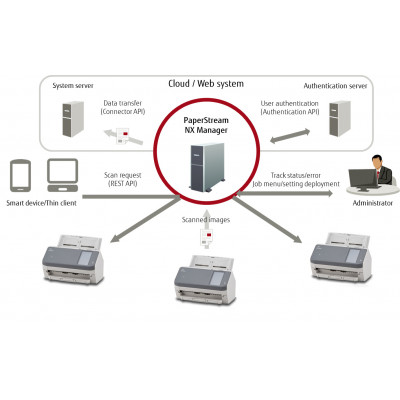

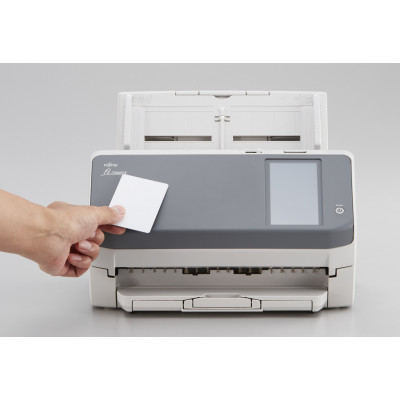

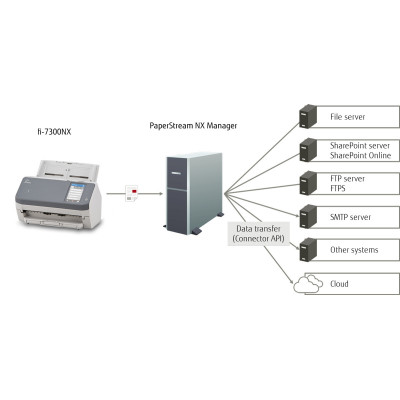

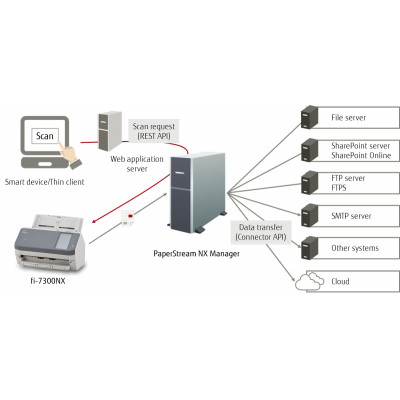

The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes. With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations. The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX’s server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation, expansion, operation, and management. Manage jobs and process images with PaperStream NX Manager. Monitor scanner operation with Scanner Central Admin.

When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.


*Based on a study by PFU Limited on scanners with Wi-Fi connectivity (September 4th, 2018).

Ricoh fi-7300NX. Maximum scan size: 216 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF scanner, Product colour: Grey, White, Display: TFT. Sensor type: Dual CCD, Daily duty cycle (max): 4000 pages, Light source: White LED (2x). Auto document feeder (ADF) input capacity: 80 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Plain paper, Plastic Card, Auto Document Feeder (ADF) media weight: 27 - 413 g/m²

Scanning
Maximum scan size	216 x 5588 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Duplex ADF scan speed (colour, A4)	120 ipm
Black/white scanning colour modes	Grayscale, Monochrome
Design
Scanner type	ADF scanner
Built-in display	Yes
Product colour	Grey, White
Display	TFT
Display diagonal	10.9 cm (4.3")
Touchscreen	Yes
Performance
Sensor type	Dual CCD
Light source	White LED (2x)
Daily duty cycle (max)	4000 pages
Ultrasonic double sheet detection	Yes
Input capacity
Auto document feeder (ADF) input capacity	80 sheets
Paper handling
Maximum ISO A-series paper size	A4
Scanning media types supported	Plain paper, Plastic Card
Long-paper mode	Yes
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan width	21.6 cm
Maximum scan length	5.59 m
Minimum scan area (ADF)	50.8 x 54 mm
Ports & interfaces
USB port	Yes
USB version	3.2 Gen 2 (3.1 Gen 2)
Socket connector type	C5
Standard interfaces	Ethernet, USB 1.1, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN
Network
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Supported network protocols	IPv4(15), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS
Power
Power consumption (typical)	42 W
Power consumption (off)	0.35 W
Power consumption (PowerSave)	2.4 W
Input voltage	100 - 240 V
Weight & dimensions
Width	300 mm
Depth	202 mm
Height	170 mm
Weight	49 kg
Packaging data
Quantity per pack	1 pc(s)
Package width	270 mm
Package depth	400 mm
Package height	305 mm
Package weight	7.2 kg
Packaging content
ADF paper chute	Yes
Drivers included	Yes
Sustainability
Sustainability certificates	ENERGY STAR
System requirements
Server operating systems supported	Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	41 - 95 °F
Other features
Compliance certificates	RoHS
Background colours	Black, White
Logistics data
Country of origin	Indonesia
Glass packaging weight	0 g
