ASUS PRIME PRO H610T D4-CSM Mini-ITX Motherboard LGA 1700 Intel Alder Lake DDR4 Support HDMI 2.1 DisplayPort 1.4 PCIe M.2 SATA G

Product Overview

The ASUS PRIME PRO H610T D4-CSM is a compact mini-ITX motherboard designed to support Intel Alder Lake processors with LGA 1700 socket, ideal for small form factor PCs focused on reliability and performance. It offers compatibility with DDR4 memory and versatile connectivity options for business and professional use.

Specifications

• Form factor: Mini-ITX (170 x 170 mm)
• CPU Socket: LGA 1700, supports Intel 12th Gen Alder Lake processors including Intel Pentium, Core i3, i5, i7 & i9, and Celeron
• Chipset: Intel H610
• Memory: 2 x DDR4 SO-DIMM slots, dual-channel, supporting up to 64 GB RAM with speeds 2133 to 3200 MHz (non-ECC)
• Storage: 1 x M.2 slot, SATA III ports for HDD and SSD connectivity
• Graphics Output: 1 x HDMI 2.1 port, 1 x DisplayPort 1.4
• Expansion Slots: PCIe slot for additional cards
• Networking: Gigabit Ethernet (RJ-45), Wake-on-LAN support
• Audio: 7.1 channel integrated audio
• Rear I/O Ports: 2 x USB 3.0 Type-A, 1 x COM port, 1 x Ethernet LAN, audio jacks
• Additional features: UEFI AMI BIOS, TPM connector, chassis intrusion connector, CPU fan connector

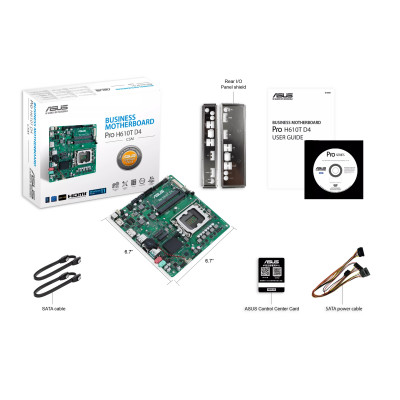

• Includes drivers and SATA cables for easy setup
• Weight: Approximately 382 grams

This motherboard does not include an operating system; please contact Maltazon for installation options.

Warranty

This product is covered by a 24-month official warranty managed directly by Maltazon, valid from the date of purchase.

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.
