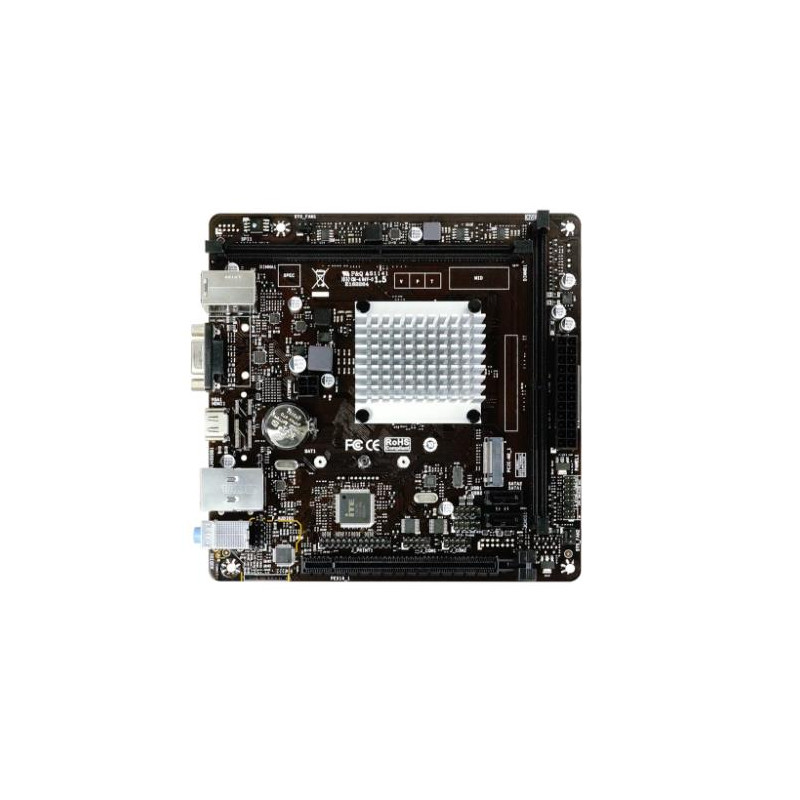

BIOSTAR J4125NHU Mini ITX Motherboard with Intel Celeron J4125 Quad-Core SOC, Dual DDR3 Slots, VGA, HDMI, PCIe Expansion, Realte

Product Overview

The BIOSTAR J4125NHU is a compact Mini ITX motherboard designed for versatile and efficient PC builds featuring the Intel Celeron J4125 quad-core SoC. Suitable for embedded systems, home servers, or small form factor desktop use, this motherboard offers essential connectivity and expansion options while maintaining a compact 170x170 mm form factor.

Includes native Intel UHD Graphics 600 for integrated video output and supports Windows operating systems.

Specifications

• Processor: Intel Celeron J4125 Quad-Core SoC (integrated CPU and GPU)
• Memory: 2 DDR3 DIMM slots supporting up to 8GB non-ECC RAM, with speeds of 1866, 2133, and 2400 MHz
• Storage Interfaces: Supports 2 drives via SATA III, M.2, and PCI Express 2.0
• Graphics: Intel UHD Graphics 600 with one HDMI and one VGA (D-Sub) port
• Audio: Realtek ALC887 7.1 channel HD audio codec
• Networking: Realtek RTL8111HP Gigabit Ethernet LAN controller
• Expansion Slots: 2 PCI Express x16 Gen 2.x slots for additional cards
• Rear I/O Ports: 2 USB 3.0 (3.1 Gen 1) Type-A, 2 USB 2.0, 1 HDMI, 1 VGA, 1 RJ-45 Ethernet, 1 PS/2 port
• Power Connectors: 24-pin ATX, 4-pin Molex
• Form Factor: Mini ITX (170 x 170 mm)
• Includes an Italian keyboard layout.

Warranty

This product is covered by a 24-month official warranty managed directly by Maltazon, valid from the date of purchase.

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.
