About this item:

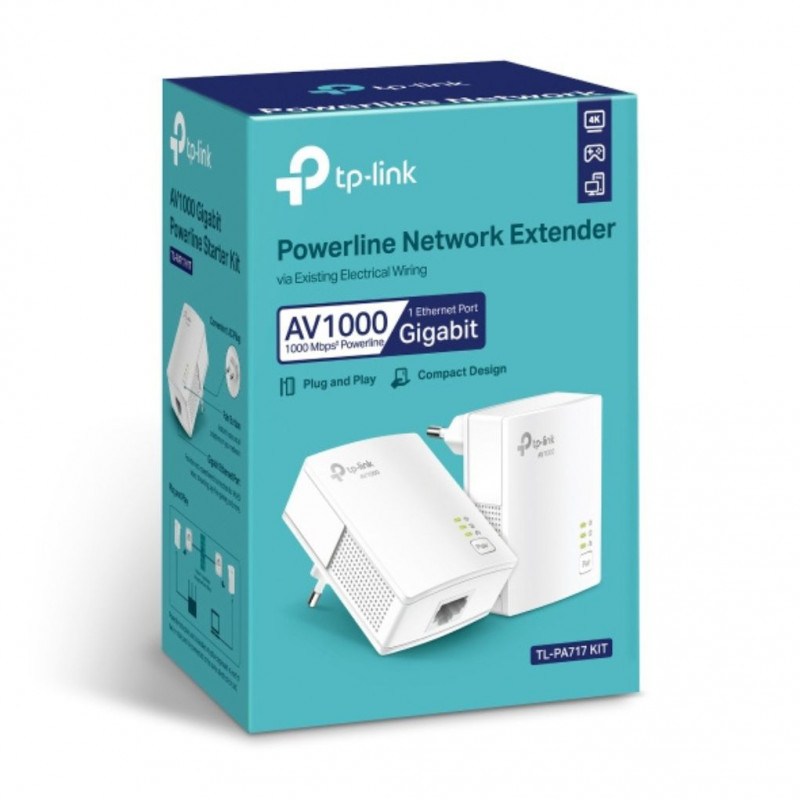

TL-PA717 KIT
AV1000 Gigabit Powerline Starter Kit
HomePlug AV2 Standard: High-speed data transfer rates of up to 1000 Mbps, supporting all your online needs.
Gigabit Port: Provides secure and high-speed wired networks for desktops, smart TVs or games consoles.
Plug and Play: Enjoy fast, seamless wired connections right away.
Power Saving Mode: Automatically reduces power consumption by up to 85%*
Compact Design: Allows the adapter to be plugged into socket without blocking other sockets
HARDWARE FEATURES
Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,
IEEE 802.3u, IEEE 802.3ab
Plug Type: EU
Interface: Gigabit Ethernet Port
Button: Pair/Reset button
Max. Power Consumption
• Maximum: 2.7W (220V/50Hz)
• Typical: 2.3W (220V/50Hz)
• Standby: 0.5W (220V/50Hz)
LED: Power, Powerline, Ethernet
Dimensions ( W x D x H ): 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
Range: Up to 300 meters/1000 feet over existing electrical wiring
SOFTWARE FEATURES
Modulation Technology: OFDM (PLC)
Encryption: Powerline Security: 128-bit AES Encryption
OTHERS
Certification: CE, RoHS
Package Content
• 2 × AV1000 Gigabit Powerline Adapter TL-PA717
• 2 × Ethernet Cable
• Quick Installation Guide
System Requirements: Windows 2000/XP/2003/Vista/7/8/8.1/10, Mac, Linux
Environment
• Operating Temperature: 0°C~40°C (32°F ~104°F)
• Storage Temperature: -40°C~70°C (-40°F ~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
