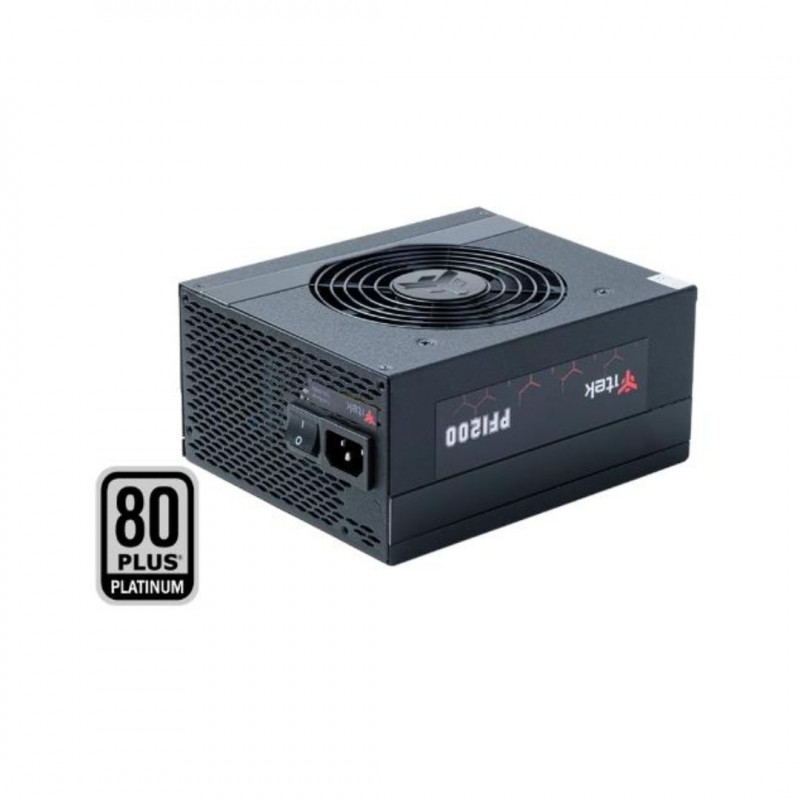

ITEK PF1200 Power Supply Unit 1200W 12cm Fan - Active FDB - 80Plus Platinum
MZ-ITPSEPF1200
1 Item
PF1200 EVO is a very high quality power supply capable of delivering 1200W with an efficiency of over 92% at 50% load. Performance that has allowed it to obtain the renowned 80Plus® Platinum certification. Internally we find a PCB with the best components on the market optimized in the arrangement, the regulation is DC to DC, the active PFC and Japanese 105c capacitors. The "free plug" wiring is completely modular with flat cables. Cooling is managed by a silent 120mm FDB "Fluid Dynamic Bearing" fan with thermal control. The "rough" anti-scratch effect chassis is confirmed. An extremely reliable, silent and well-made power supply, capable of powering the most demanding builds.
Connectivity
|
Motherboard connector
24-pin ATX
Peripheral Connectors (Molex) (4-pin)
3
Motherboard power cable length
57 cm
Number of SATA connectors
9
SATA Power Cable Length
150,530 mm
PCI Express Connectors (6+2 pin)
2
Wiring type
Totally Modular
|
Dimensions and weight
|
Length
187,8 mm
Depth
145,7 mm
Height
86 mm
Weight
3,17 kg
|
Energy management
|
Total power
1200 W
AC input voltage
100 - 240V
Power Factor Corrector (PFC) Type
Active
Power protection features
Overload, Overload, Underload, Overcurrent, Short circuit
|
Packaging data
|
Packaging weight
3,5 kg
Type of packaging
Box
|
Design
|
Product color
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Interrutore On/Off
Yes
|
Performance
|
Usage
PC
Power Supply Unit (PSU) Form Factor
ATX
80 PLUS Certification
80 PLUS Platinum
ATX version
2.31
Mean Time Between Failures (MTBF)
100000 h
|
