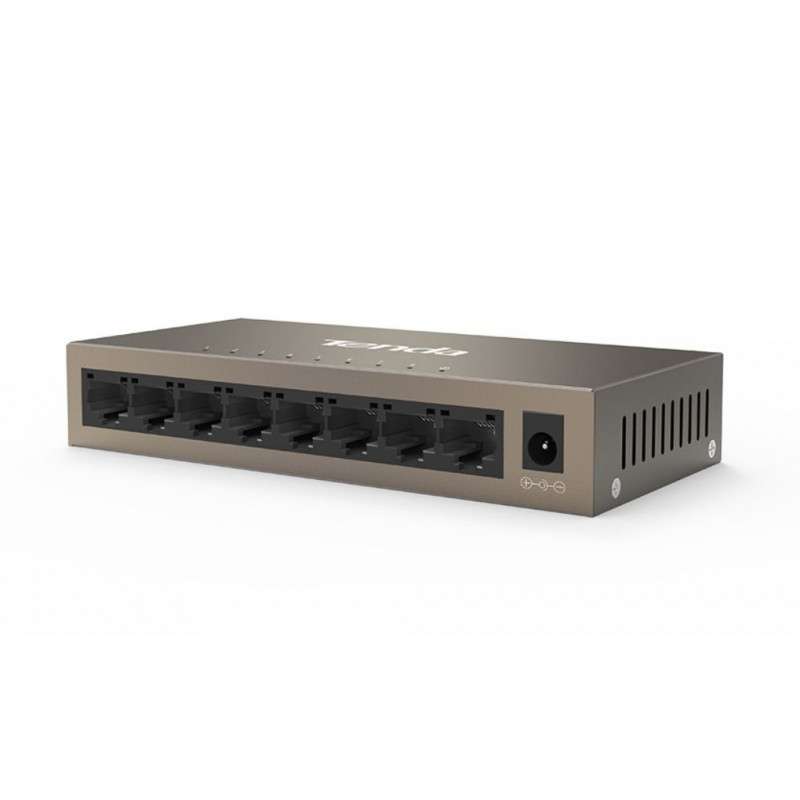

Tenda TEG1008M is a high-performance 8-port full gigabit desktop ethernet switch
designed for tenda's high-speed cascading scenarios for small and medium-sized surveillance,
small and medium-sized businesses. designed with a mini steel shell, it does not
take up space and has a strong heat dissipation. provides 8 10/100/1000 mbps auto-negotiation
ports, which increases transmission rate by 10 times, improves large file forwarding
rate, and effectively solves problems such as video jams and picture loss in high-definition
surveillance environments. the teg1008m supports desktop/wall mount installation,
plug and play, no setup, easy to use, and is ideal for improving network performance.
-
Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
-Power
-Link/Act
-
Interfaces: (8)1GE RJ45 ports
-
Transmission media: Recommended: CAT5/5e UTP or better
-
Dimensions: 140mm*66mm*25mm
-
Forwarding mode: Store-and-forward
-
Switch capacity: 16Gbps:
-
Forwarding rate: 12Mpps
-
Power method: 100-240V AC 50/60Hz
-
Power consumption: Max:<3W
-
Mounting:
-Desktop mounting: support
-Wall mounting: support
-Operating Temperature: 0℃~45℃
-Storage Temperature: -40℃~70℃
-Operating Humidity: 10%~90% non-condensing
-Storage Humidity: 5%~90% non-condensing
-
Certifications:
FCC, CE, RoHS
