Product Overview

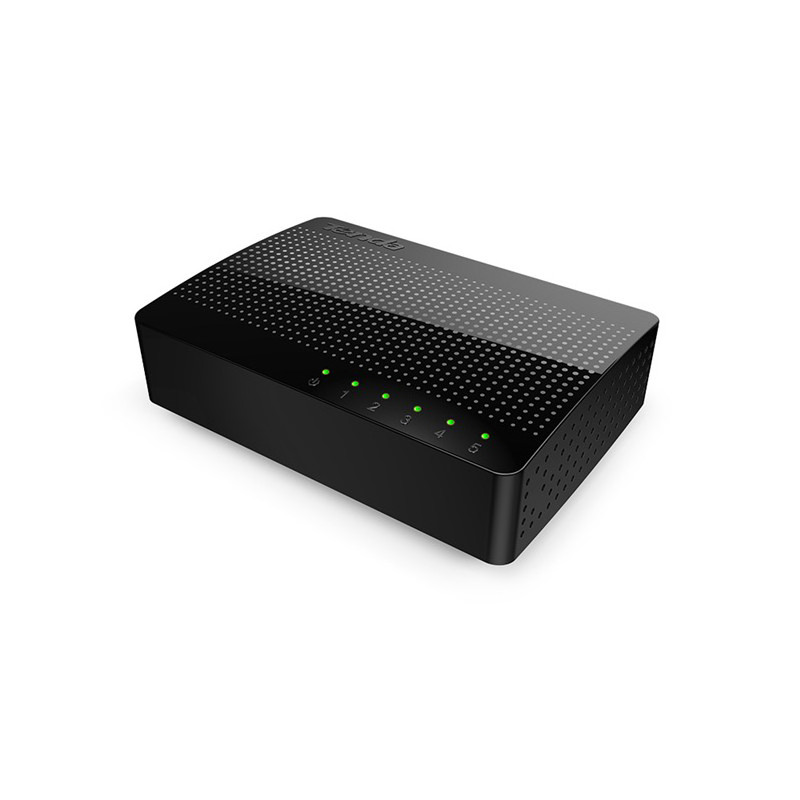

The TENDA SG105 is a compact, high-performance 5-port Gigabit Ethernet switch designed specifically for small office and home office (SOHO) environments. It provides fast, reliable wired network connectivity, ideal for expanding existing networks with effortless plug-and-play installation.
Supporting speeds up to 1000Mbps per port and a total switching capacity of 10Gbps, the SG105 eliminates network bottlenecks and enhances data transmission performance, making it suitable for office workstations, home networking, media streaming, and other network-intensive applications.
Specifications
- Standards & Protocols: IEEE 802.3, 802.3u, 802.3x, 802.3ab compliant
- Ports: 5 x 10/100/1000Mbps auto-negotiation RJ45 ports with auto MDI/MDIX support
- Transmission Media: Supports Cat.3 or above for 10BASE-T; Cat.5, Cat.5e or above for 100BASE-TX/1000BASE-T
- Forwarding Rate: 14,880pps at 10Mbps, 148,800pps at 100Mbps, 1,488,000pps at 1000Mbps
- Switching Capacity: 10Gbps
- Indicators: 5 Link/Activity LEDs for each port, 1 Power LED
- Power Input/Output: 100-240V~50/60Hz input, 5V/0.6A output
- Power Consumption: Standby 0.5W, Maximum 2.5W (220V/50Hz)
- Dimensions: 96 x 66 x 23 mm
- Operating Temperature: 0° to 45°C
- Operating Humidity: 10% to 90% non-condensing
- Storage Temperature: -40° to 70°C
- Storage Humidity: 5% to 90% non-condensing
- Key Features: Store-and-forward switching, auto-learning and auto-aging MAC address tables for efficient traffic management
Usage Scenarios
The TENDA SG105 is ideal for expanding your wired network at home or in a small office, supporting high-speed connections for multiple devices simultaneously. It is well-suited for:
- Office workstations requiring stable and fast internet connectivity
- Home entertainment systems including streaming and gaming
- Connecting network printers, NAS devices, and other peripherals
- Building reliable SOHO networks with minimal setup effort
