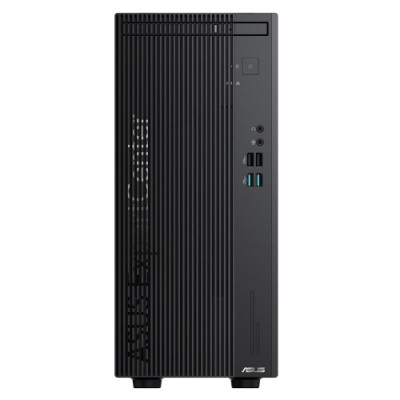

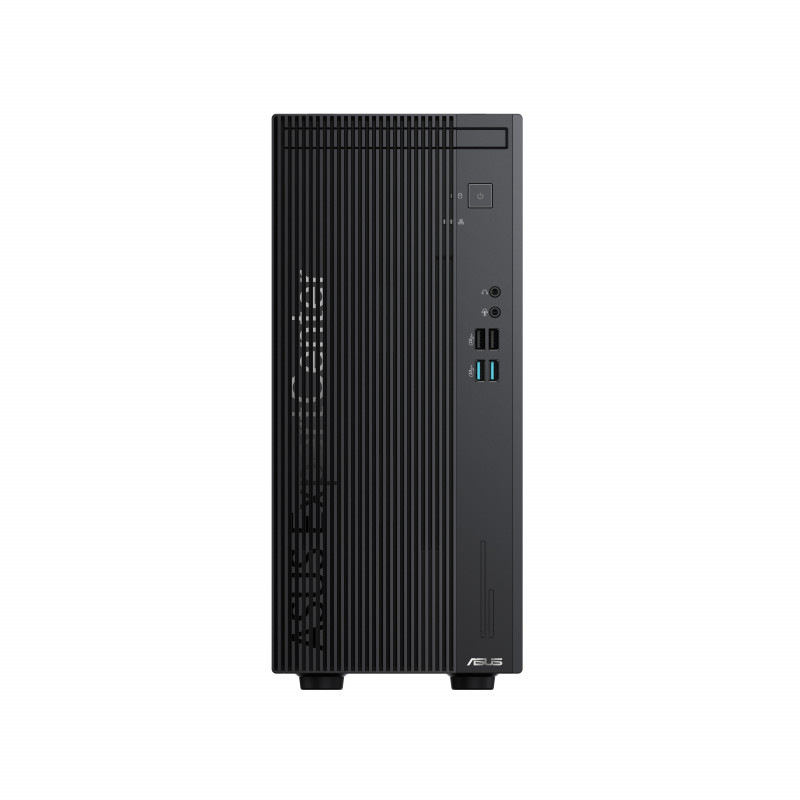

ASUS ExpertCenter D5 Mini Tower D501MER-5145000090 Intel® Core™ i5 i5-14500 8 GB DDR5-SDRAM 512 GB SSD PC Black
90PF05K1-M007B0
77 Items
Outstanding Value for business at any sizes
Engineered specifically for the specific demands of small businesses, the ASUS ExpertCenter D5 Mini Tower is a desktop with AI-driven Microsoft Copilot that boasts powerful, trustworthy, and expandable performance. Its modern, compact, and flexible design caters to diverse workspaces and usage scenarios. Take advantage of our simplified small-business support services to experience reduced downtime and a more economical total cost of ownership.
ASUS ExpertCenter D5 Mini Tower D501MER-5145000090. Processor family: Intel® Core™ i5, Processor model: i5-14500. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD, Optical drive type: DVD±RW. On-board graphics card model: Intel UHD Graphics 770. Power supply: 180 W. Chassis type: Mini Tower. Product type: PC. Weight: 6 kg. Product colour: Black
Engineered specifically for the specific demands of small businesses, the ASUS ExpertCenter D5 Mini Tower is a desktop with AI-driven Microsoft Copilot that boasts powerful, trustworthy, and expandable performance. Its modern, compact, and flexible design caters to diverse workspaces and usage scenarios. Take advantage of our simplified small-business support services to experience reduced downtime and a more economical total cost of ownership.
ASUS ExpertCenter D5 Mini Tower D501MER-5145000090. Processor family: Intel® Core™ i5, Processor model: i5-14500. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD, Optical drive type: DVD±RW. On-board graphics card model: Intel UHD Graphics 770. Power supply: 180 W. Chassis type: Mini Tower. Product type: PC. Weight: 6 kg. Product colour: Black
Processor | |
Processor manufacturer | Intel |
Processor family | Intel® Core™ i5 |
Processor generation | Intel® Core™ i5 (14th gen) |
Processor model | i5-14500 |
Processor cores | 14 |
Processor threads | 20 |
Processor boost frequency | 5 GHz |
Performance cores | 6 |
Efficient cores | 8 |
Performance-core Max Turbo Frequency | 5 GHz |
Efficient-core Max Turbo Frequency | 3.7 GHz |
Performance-core base frequency | 2.6 GHz |
Efficient-core base frequency | 1.9 GHz |
Processor cache | 24 MB |
Processor cache type | Smart Cache |
Maximum turbo power | 154 W |
Memory | |
Internal memory | 8 GB |
Maximum internal memory | 64 GB |
Internal memory type | DDR5-SDRAM |
Memory layout (slots x size) | 1 x 8 GB |
Storage | |
Total storage capacity | 512 GB |
Optical drive type | DVD±RW |
Storage media | SSD |
Number of storage drives installed | 1 |
Total SSDs capacity | 512 GB |
Number of SSDs installed | 1 |
SSD capacity | 512 GB |
NVMe | Yes |
SSD form factor | M.2 |
M.2 SSD size | 2280 (22 x 80 mm) |
Graphics | |
Discrete graphics card | No |
On-board graphics card | Yes |
Discrete graphics card model | Not available |
On-board GPU manufacturer | Intel |
On-board graphics card family | Intel® UHD Graphics |
On-board graphics card model | Intel UHD Graphics 770 |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
Wi-Fi | No |
Ports & interfaces | |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Thunderbolt 3 ports quantity | 0 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
HDMI version | 1.4 |
Ethernet LAN (RJ-45) ports | 1 |
Headphone outputs | 1 |
Combo headphone/mic port | Yes |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
Design | |
Chassis type | Mini Tower |
Number of 3.5" bays | 1 |
Number of 2.5" bays | 1 |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Product colour | Black |
Introduction year | 2025 |
Performance | |
Product type | PC |
Market positioning | Business |
Powered by | ASUS |
Motherboard chipset | Intel B760 |
Audio system | High Definition Audio |
Audio output channels | 7.1 channels |
Password protection | Yes |
Password protection type | HDD, User |
Trusted Platform Module (TPM) | Yes |
Software | |
Operating system installed | No |
Power | |
Power supply | 180 W |
80 PLUS certification | 80 PLUS Bronze |
Weight & dimensions | |
Width | 155 mm |
Depth | 296 mm |
Height | 347 mm |
Weight | 6 kg |
Packaging content | |
Mouse connectivity | Wired |
Keyboard connectivity | Wired |
90PF05K1-M007B0
77 Items
Data sheet
- Product type
- PC
- Product colour
- Black
- Processor manufacturer
- Intel
- Maximum internal memory
- 64 GB
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- HDMI ports quantity
- 1
- Wi-Fi
- No
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Processor family
- Intel® Core™ i5
- Processor model
- i5-14500
- Internal memory
- 8 GB
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- DVD±RW
- Discrete graphics card
- No
- Discrete graphics card model
- Not available
- On-board graphics card
- Yes
- On-board graphics card model
- Intel UHD Graphics 770
- Ethernet LAN
- Yes
- Operating system installed
- No
- Chassis type
- Mini Tower
- Width
- 155 mm
- Depth
- 296 mm
- Height
- 347 mm
- Weight
- 6 kg
- Display included
- No
- Power supply
- 180 W
- Thunderbolt 3 ports quantity
- 0
