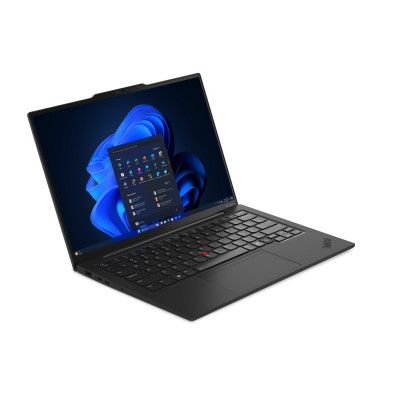

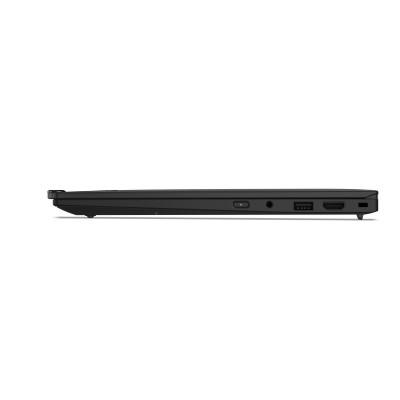

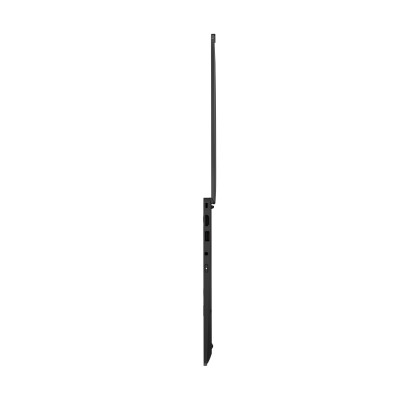

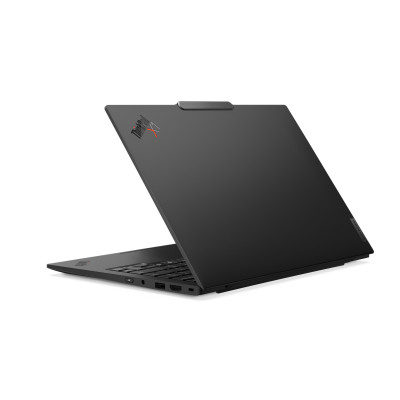

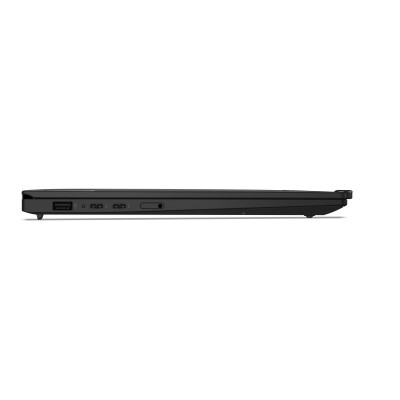

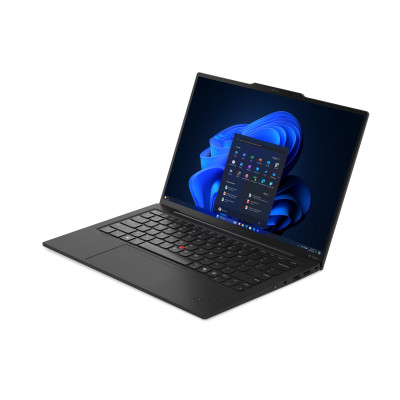

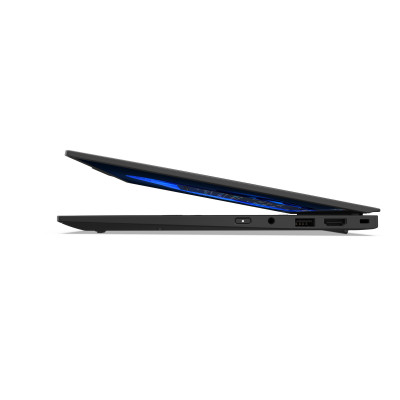

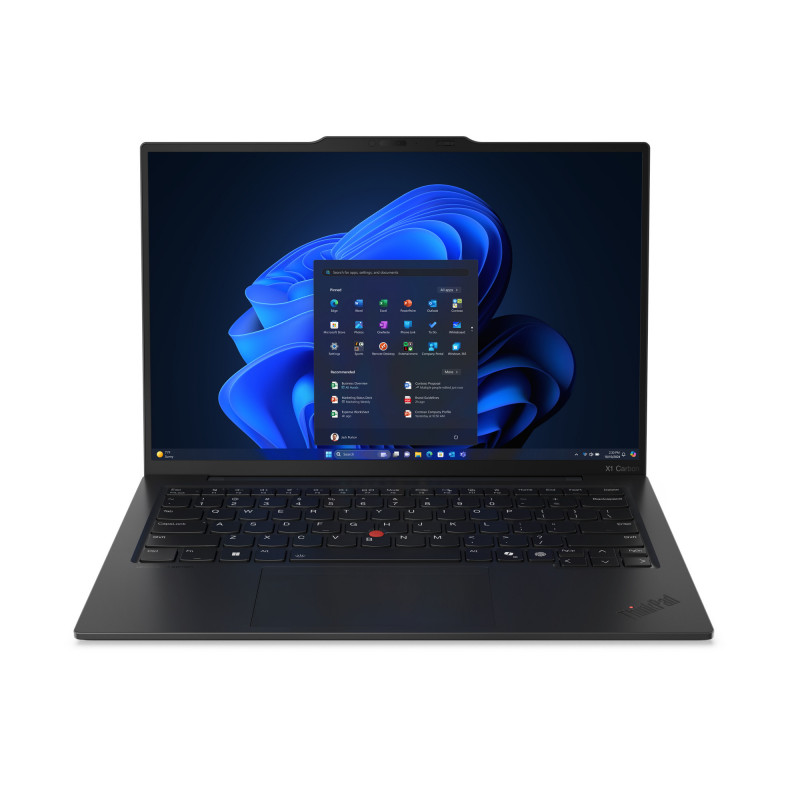

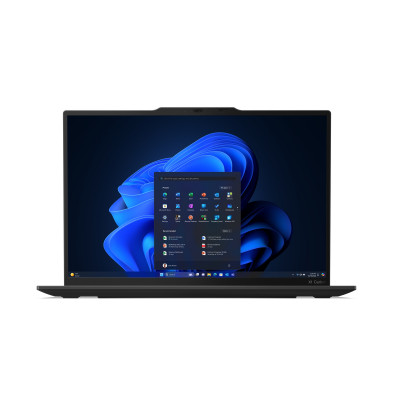

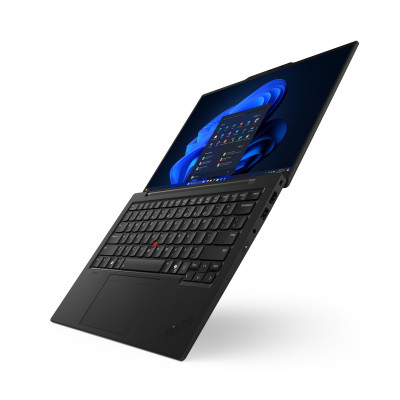

Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition Intel Core Ultra 7 255U Laptop 35.6 cm (14") Touchscreen 2.8K 32 GB LPDDR5x-SDRAM
21NX006XIX
11 Items
Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255U. Display diagonal: 35.6 cm (14"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. Mobile network generation: 4G. Operating system installed: Windows 11 Pro. Product colour: Black
| Design | |
| Product type | Laptop |
| Product colour | Black |
| Colour name | Black, Paint |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Display | |
| Display diagonal | 35.6 cm (14") |
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 2.8K |
| Panel type | OLED |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| Colour gamut | 100% |
| Maximum refresh rate | 120 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 255U |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.4 GHz |
| Performance-core base frequency | 2 GHz |
| Efficient-core base frequency | 1.7 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 12 MB |
| Maximum turbo power | 57 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Audio | |
| Audio chip | Realtek ALC3306 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Number of microphones | 2 |
| Camera | |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Network | |
| Mobile network connection | Yes |
| Mobile network generation | 4G |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Near Field Communication (NFC) | No |
| WWAN | Installed |
| WWAN controller | Quectel EM160R-GL, 4G LTE CAT16, with Embedded eSIM |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| Performance | |
| Motherboard chipset | Intel SoC |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Keyboard language | Italian |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English, French, German, Dutch, Italian |
| Bundled software | Intel Connectivity Performance Suite |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 57 Wh |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions | |
| Weight | 1.01 kg |
| Width | 312.8 mm |
| Depth | 214.8 mm |
| Height (front) | 8.08 mm |
| Height (rear) | 1.44 cm |
| Packaging content | |
| AC adapter included | Yes |
