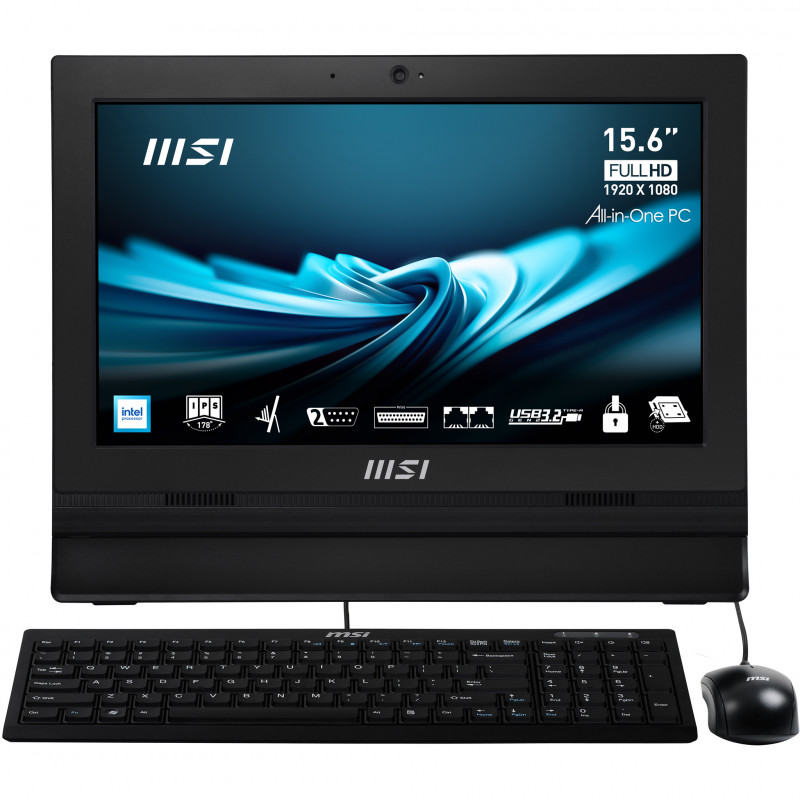

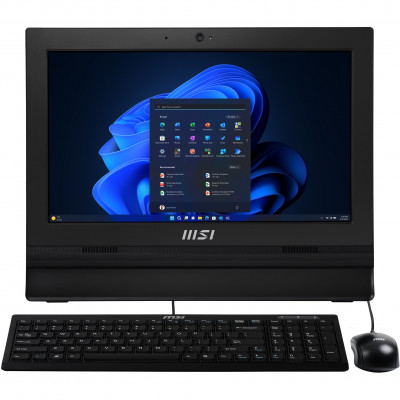

MSI Pro AP162T ADL-005IT All-in-One PC/workstation Intel® N N100 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen 4 GB DDR4-SDRAM

Tailored for Professional Users
The PRO AP162T ADL is the ultimate computing solution for professionals who demand optimal efficiency. With its compact design and powerful features, this All-in-One PC is guaranteed to give a competitive edge in professional work.

Don't settle for less - upgrade to the PRO AP162T ADL today and experience true productivity.

Reliable Choice for
POS Terminal
PRO AP162T ADL is designed for commercial use as a Point of Sale (POS) terminal.

It offers a stable and efficient platform for businesses and comes equipped with features tailored for POS setups.

Reliable Choice for POS Terminal

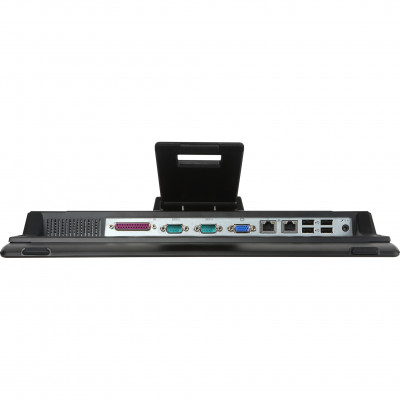

PRO AP162T ADL has 2x COM and 6 x USB ports for easy connection to commercial POS devices such as barcode scanners, credit card reader, and receipt printers, etc.

Printer Port (Paralle Port)
PRO AP162T ADL has a built-in parallel printer port for direct printing and editing of documents, reducing the risk of data leakage when using public printer devices.

Fanless Design
PRO AP162 Series features a fanless heat dissipation design that is silent, anti-dust, and energy efficient, resulting in reduced downtime and an extended life-cycle.

dTPM 2.0 Support
dTPM 2.0 technology provides hardware-based security functions. Sensitive data and passwords can be stored with encryption for advanced protection.

Dual LAN Design
With the Dual LAN Design, the PRO AP162T ADL will always be your backup and support the Internet/Intranet dual network environments, which can enhance security by turning the LAN connection on or off.

With this flexible design, users have the option to turn off the internet for LAN1 from the BIOS settings, while enabling the intranet for LAN2. This feature makes it more difficult for attackers to access critical data and systems.

Efficiency Optimized for Business Thrive
PRO AP162T ADL enables faster performance, smooth order transactions, and quick inventory lookups.

NVME PCIE M.2 SSD
During the workday, time is of the essence. Optimize the system with an NVME PCI-E M.2 SSD to quickly load POS software, run reports, and perform inventory lookups.

USB 3.2 Gen 2 Type A Port
USB 3.2 Gen 2 Type-A ports provide 20x faster transfer rates (up to 10Gbps)than USB 2.0. This enables quicker printingof receipts and invoices, faster downloading of transaction logs and copying of data to external storage.

Design with Convenient Versatility
Make system maintenance easier and increase productivity with convenient designs.

Built-in HDD Caddy
The HDD Caddy design is specifically engineered for effortless system maintenance and quick hard drive swapping by staff.

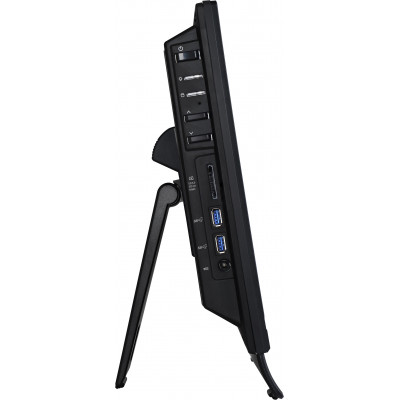

Built-in Card Reader
The PRO AP162T ADL has a built-in card reader, allowing for easy file transfers via SD card.

SEE MORE,DO MORE
During the workday, time is of the essence. Optimize the system with an NVME PCI-E M.2 SSD to quickly load POS software, run reports, and perform inventory lookups.

VESA Mountable Design
The PRO AP162T can be conveniently mounted on any surface that supports VESA. It can be utilized as a display for public service, providing an intuitive and professional experience.

DESIGN WITH GREEN
THANK YOU FOR SAVING THE PLANET WITH US
MSI is committed to mitigating the environmental impacts of its business activities through green production and supply chain management.

The PRO AP162 series meets various energy requirements, such as CE/CB, ENERGY STAR, ROHS, FCC, UL, etc., to reduce energy consumption, improve efficiency, and protect our only planet.

Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.



MSI Pro AP162T ADL-005IT. Product type: All-in-One PC. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Panel type: IPS. Processor family: Intel® N. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Built-in camera. Operating system installed: Windows 11 Pro. Product colour: Black

Display
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® N
Processor model	N100
Processor cores	4
Processor boost frequency	3.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory layout (slots x size)	1 x 4 GB
Storage
Total storage capacity	128 GB
Storage media	SSD
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	5 W
Camera
Built-in camera	Yes
Camera HD type	HD
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9462
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.0
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Combo headphone/mic port	Yes
Design
Product colour	Black
Cable lock slot type	Kensington
Performance
Product type	All-in-One PC
Market positioning	Business
Motherboard chipset	Intel SoC
Software
Operating system installed	Windows 11 Pro
Power
AC adapter power	65 W
Weight & dimensions
Width (without stand)	399.5 mm
Depth (without stand)	69.2 mm
Height (without stand)	313.9 mm
Weight (without stand)	3.96 kg
Package weight	5.37 kg
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%
Certificates
Certification	FCC, CB/CE, UL & CUL, VCCI, RCM
