ASUS TUF Gaming A16 FA607PI-RL129W AMD Ryzen™ 9 7940HX Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX
90NR0IV3-M00690
8 Items
Subtle styling

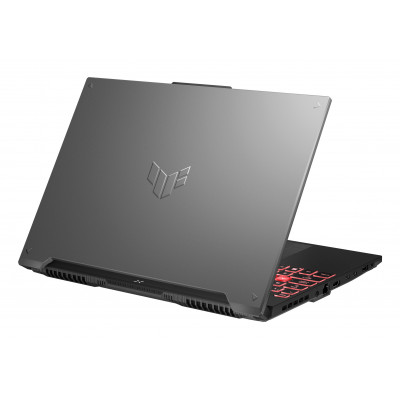

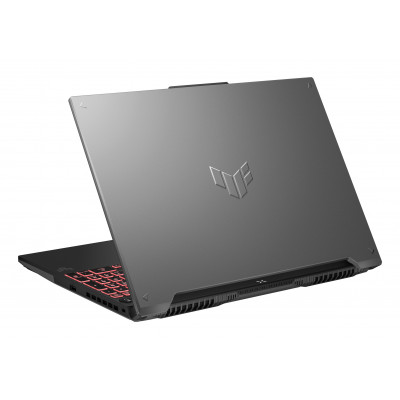

The 2024 TUF Gaming A16 retains its classic TUF styling, with a few new touches. The Mecha Grey variant sports an embossed TUF logo, while the Jaeger Gray editions have a stylish laser engraved logo. Four small triangles frame the corners of the lid, and subtle TUF references appear on the keyboard deck and trackpad.
ASUS TUF Gaming A16 FA607PI-RL129W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 9, Processor model: 7940HX, Processor frequency: 2.4 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 610M. Operating system installed: Windows 11 Home. Product colour: Black, Grey
The 2024 TUF Gaming A16 retains its classic TUF styling, with a few new touches. The Mecha Grey variant sports an embossed TUF logo, while the Jaeger Gray editions have a stylish laser engraved logo. Four small triangles frame the corners of the lid, and subtle TUF references appear on the keyboard deck and trackpad.
ASUS TUF Gaming A16 FA607PI-RL129W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 9, Processor model: 7940HX, Processor frequency: 2.4 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 610M. Operating system installed: Windows 11 Home. Product colour: Black, Grey
Design | |
Product type | Laptop |
Product colour | Black, Grey |
Colour name | Mecha Gray |
Form factor | Clamshell |
Market positioning | Gaming |
Display | |
Display diagonal | 40.6 cm (16") |
Display resolution | 1920 x 1200 pixels |
Touchscreen | No |
HD type | WUXGA |
Panel type | IPS-Level |
Native aspect ratio | 16:10 |
Anti-glare screen | Yes |
Maximum refresh rate | 144 Hz |
Processor | |
Processor manufacturer | AMD |
Processor family | AMD Ryzen™ 9 |
Processor generation | AMD Ryzen 7000 Series |
Processor model | 7940HX |
Processor cores | 16 |
Processor threads | 32 |
Processor boost frequency | 5.2 GHz |
Processor frequency | 2.4 GHz |
Processor cache type | L2 & L3 |
L3 cache | 64 MB |
L2 cache | 16 MB |
Memory | |
Internal memory | 16 GB |
Internal memory type | DDR5-SDRAM |
Memory form factor | SO-DIMM |
Memory slots | 2x SO-DIMM |
Maximum internal memory | 64 GB |
Storage | |
Total storage capacity | 1 TB |
Storage media | SSD |
Total SSDs capacity | 1 TB |
Number of SSDs installed | 1 |
SSD capacity | 1 TB |
NVMe | Yes |
SSD form factor | M.2 |
Optical drive type | No |
Card reader integrated | No |
Graphics | |
On-board graphics card | Yes |
Discrete graphics card | Yes |
Discrete GPU manufacturer | NVIDIA |
Discrete graphics card model | NVIDIA GeForce RTX 4070 |
Discrete graphics card memory | 8 GB |
Discrete graphics memory type | GDDR6 |
On-board GPU manufacturer | AMD |
On-board graphics card family | AMD Radeon |
On-board graphics card model | AMD Radeon 610M |
NVIDIA G-SYNC | Yes |
Audio | |
Audio system | Dolby Atmos |
Number of built-in speakers | 2 |
Built-in microphone | Yes |
Camera | |
Front camera | Yes |
Front camera HD type | HD |
Network | |
Mobile network connection | No |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi standards | Wi-Fi 6 (802.11ax) |
Antenna type | 2x2 |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Bluetooth | Yes |
Bluetooth version | 5.3 |
Ports & interfaces | |
USB 2.0 ports quantity | 0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
Combo headphone/mic port | Yes |
Power adapter barrel connector | 6.0 mm |
USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard | |
Pointing device | Touchpad |
Keyboard backlit | Yes |
Keyboard backlit zone | 1-zone RGB |
Software | |
Operating system installed | Windows 11 Home |
Operating system architecture | 64-bit |
Battery | |
Battery technology | Lithium-Ion (Li-Ion) |
Number of battery cells | 4 |
Battery capacity | 90 Wh |
Power | |
AC adapter power | 280 W |
AC adapter frequency | 50 - 60 Hz |
AC adapter input voltage | 100 - 240 V |
AC adapter output current | 14 A |
AC adapter output voltage | 20 V |
DC-in jack | Yes |
USB Type-C charging port | Yes |
USB Power Delivery (USB PD) | Yes |
Security | |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Trusted Platform Module (TPM) | Yes |
Password protection | Yes |
Password protection type | BIOS, User |
Weight & dimensions | |
Weight | 2.27 kg |
Width | 355 mm |
Depth | 252 mm |
Height (front) | 2.21 cm |
Height (rear) | 2.82 cm |
Packaging content | |
AC adapter included | Yes |
90NR0IV3-M00690
8 Items
Data sheet
- Product type
- Laptop
- Product colour
- Black, Grey
- Processor manufacturer
- AMD
- Maximum internal memory
- 64 GB
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- HDMI ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- Form factor
- Clamshell
- Display diagonal
- 40.6 cm (16")
- Display resolution
- 1920 x 1200 pixels
- Touchscreen
- No
- Processor family
- AMD Ryzen™ 9
- Processor model
- 7940HX
- Processor frequency
- 2.4 GHz
- Internal memory
- 16 GB
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Optical drive type
- No
- Discrete graphics card
- Yes
- Discrete graphics card model
- NVIDIA GeForce RTX 4070
- On-board graphics card
- Yes
- On-board graphics card model
- AMD Radeon 610M
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Operating system installed
- Windows 11 Home
- Weight
- 2.27 kg
- Mobile network connection
- No
- Numeric keypad
- Yes
- Battery capacity
- 90 Wh
- USB Type-C charging port
- Yes
- AC adapter included
- Yes
