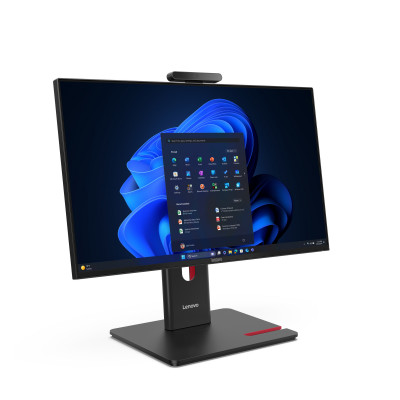

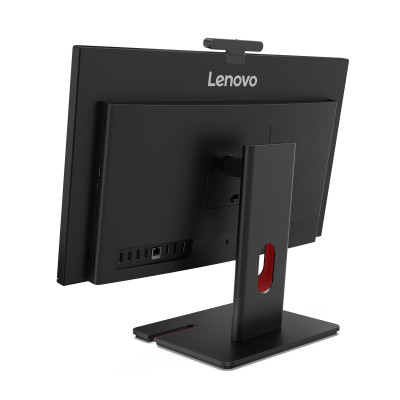

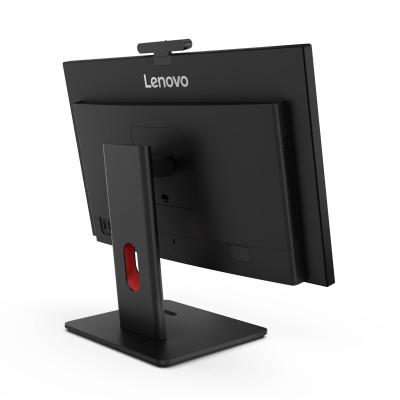

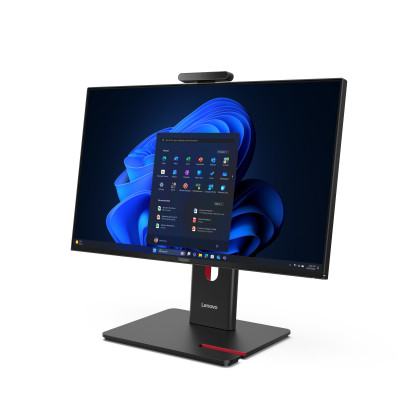

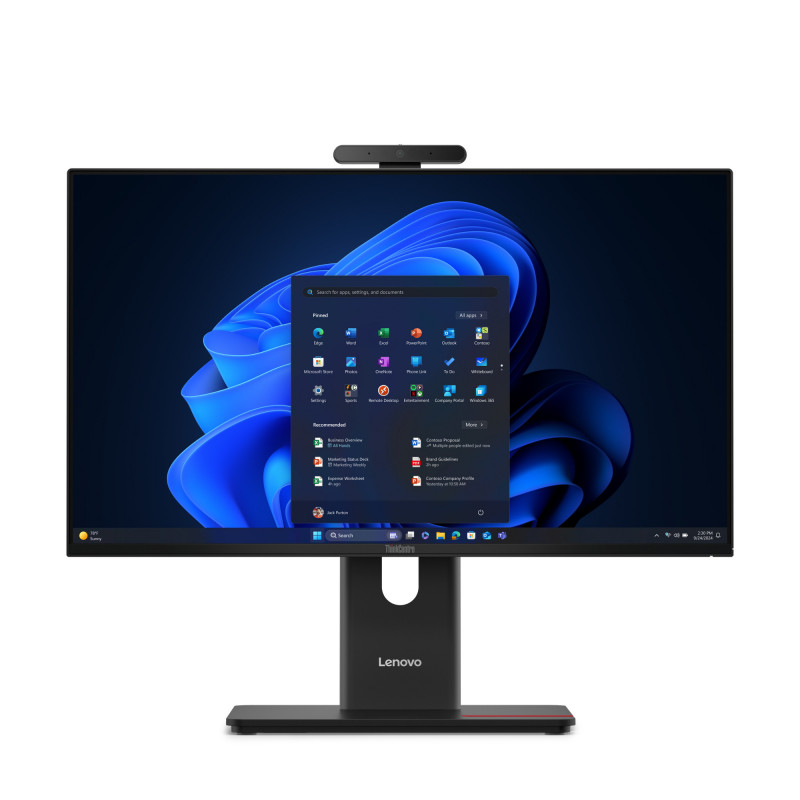

Lenovo ThinkCentre M70a Gen 6 Intel Core Ultra 5 225T 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 512 GB

ADVANCED AI FOR LIMITLESS POTENTIAL
Think Smart. Secure Better. Achieve More.

The 23.8″ Lenovo ThinkCentre M70a Gen 6 AIO delivers premium performance with Intel® Core™ Ultra processors and Intel® AI Boost for real-time workload optimization. Furthermore, AI Turbo Engine enables on-device AI access, reducing cloud reliance to boost productivity. Lenovo AI Now and Intel vPro® drive secure and seamless operational excellence.

STUNNING VISUALS, ULTIMATE COMFORT
Built to Perform, Easy to Maintain

Immerse yourself in lifelike visuals on the 23.8″ wide display. Its narrow bezels allow for expansive viewing and audio with Dolby Atmos® deliver rich, superior soundscapes for an amazing audio-visual experience. Integrated Intel® graphics facilitate seamless multitasking while TÜV Eyesafe® and TÜV Low Blue Light technology prevent eye strain.

DESIGNED TO FIT YOUR NEEDS
Strong, Adaptable & Built to Last

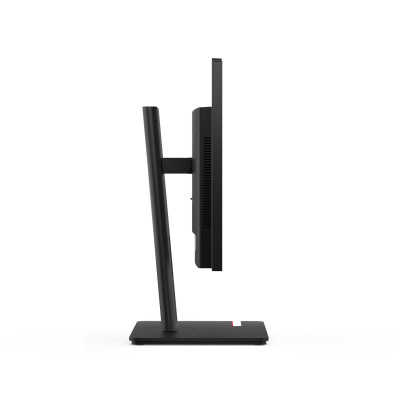

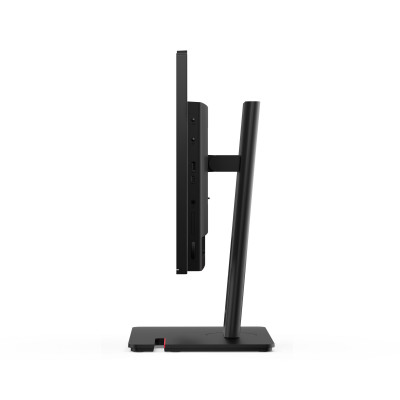

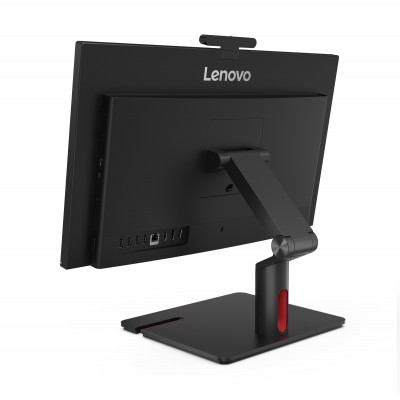

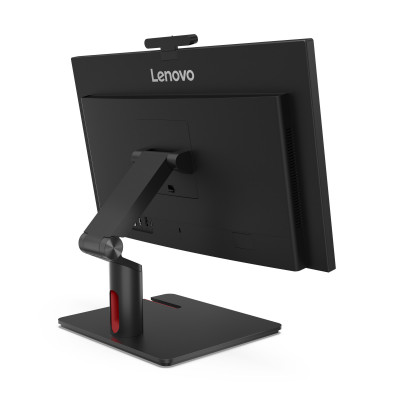

Tailor your workspace to your needs with versatile stand options, including full-functional, ultra flex, or tilt-only designs. Say goodbye to discomfort with easy adjustments that ensure the perfect viewing angle for enhanced ergonomics and productivity. Moreover, it’s IP55*-certified to ensure durability in challenging environments.

*Available on select model configurations, front face only.

SECURITY & RELIABILITY — REDEFINED
Your Data Safe, Your Tasks Unstoppable

Enjoy blazing-fast connectivity and generous storage and memory options available on the M70a Gen 6 all-in-one PC. ThinkShield’s advanced hardware and software security features safeguard your data with Smart USB Protection, discrete Trusted Platform Module (dTPM), and user recognition. Plus, Intel vPro® multilayer security ensures ultimate peace of mind.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That’s why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Lenovo ThinkCentre M70a Gen 6. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Panel type: IPS. Processor family: Intel Core Ultra 5. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Graphics. Built-in camera. Operating system installed: Windows 11 Pro. Product colour: Black

Display
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Low Blue Light technology	Yes
Tilt adjustment	Yes
Tilt angle range	-5 - 22°
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core (Series 2)
Processor model	225T
Processor cores	10
Processor threads	10
Processor boost frequency	4.9 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.9 GHz
Processor cache	22 MB
Processor cache type	L2
Maximum turbo power	114 W
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to	13 TOPs
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	5600 MHz
Memory layout (slots x size)	1 x 16 GB
Memory form factor	DIMM/SO-DIMM
Non-ECC	Yes
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Graphics
On-board graphics card model	Intel Graphics
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Yes
Camera
Built-in camera	Yes
Total megapixels	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

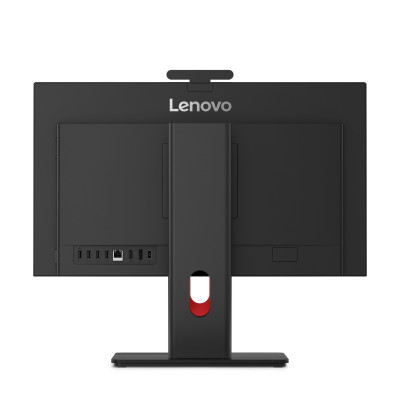

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
HDMI version	1.4/2.1
DisplayPorts quantity	1
Combo headphone/mic port	Yes
Design
Product colour	Black
Colour name	Black
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	Dutch, English, Italian, French, German
Power
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Weight & dimensions
Width (with stand)	539.6 mm
Depth (with stand)	222.2 mm
Height (with stand)	543 mm
Weight (with stand)	8.08 kg
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Packaging content
Mouse connectivity	Wired
Keyboard connectivity	Wired
Keyboard language	Italian
