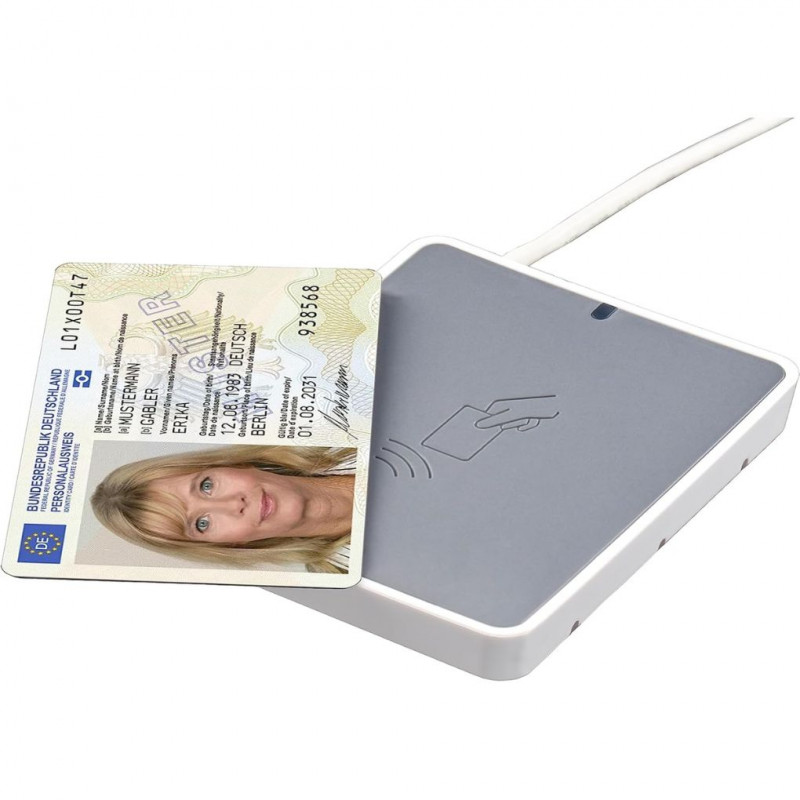

SCM3700 °F/Utrust 3700 USB RFID Desktop Reader for Contactless Cards/NPA
MZ-3700F
3 Items
- With the SCM3700 F you will find the ideal combination of contactless and NFC technology in one device, the perfect blend of modern, stylish design and ergonomic operation e.g. in the field of registration with ID-1 cards, tokens or NFC-enabled smartphones. With its all-in-one concept, the SCM3700 F enables a smooth transition from established traditional technologists to NFC applications.
- he Identiv driver platform, as well as Windows plug-and-play driver support, allows seamless integration into any environment with very little or no management. The SCM3700 F can also be used on Android based systems. With the SCM3700 F, the user experiences transaction time efficiency, security, flexibility and full NFC capability for applications such as network login to secure web-based transactions and NFC-based customer loyalty programs.
- Supported cards: MIFARE: Classic 1K and 4K, DESFire, DESFire EV1, Ultralight, Ultralight C, MIFARE mini, MIFARE Plus / FeliCa 212 and 424 Kbps support: FeliCa Standard/Lite Calypso CD21 / NFC forum tag type 1, 2, 3, 4 / iCLASS UID support (iClass. 2001 carcar, 2002, 2003 and 2004 as well as hybrid cards of the mentioned iClass cards) / my-d move - SLE 66RxxP, my-d move NFC - SLE 66RxxPN, SLE 66RxxS, SLE 55RxxE / NFC-enabled smart phones and tablets / ID card (nPA) / Carta di Identità Elettronica (CIE) tutte le versioni / Documento Nacional de Identidad (DNI)
- Interfaces USB 2.0 CCID (3.0 compatible) / Supported standards ISO 14443 Part 1 to 4 / ISO 18092 / Protocol T = CL / Reading distance up to 5 depending on card chip and antenna card / antenna internal
- Operating systems Windows 7 / 8 / 10 / 11 / Windows Server / MacOS X / Linux / Android 4.0 and above / Software PC/SC API / Dimensions: 91 x 75 x 12 mm / Weight: 44 g / Connection: 1.5 m USB cable USB type A / status LED: yes / firmware: SmartOS / firmware upgrade. possible / certificatatatatEnvironmental guidelines CE, FCC, UL94, UL60950, VCCI, RFLJ, RoHS2, REACH, WEEE / Box contents: SCM3700 F
