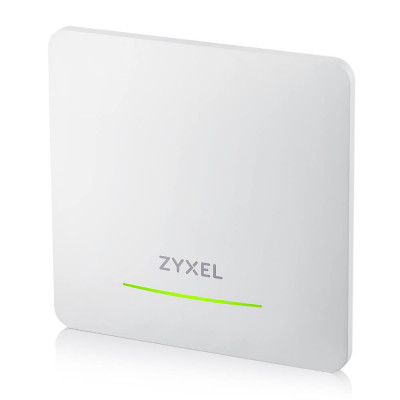

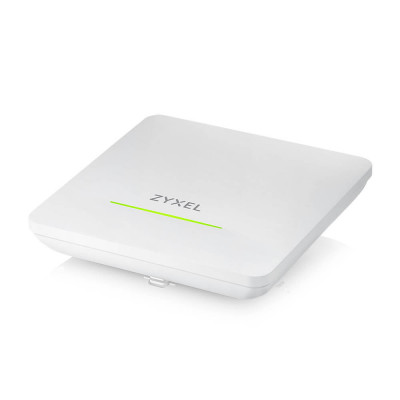

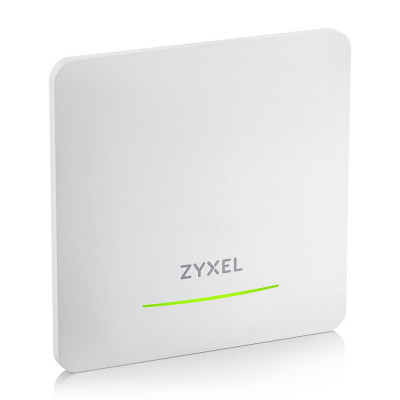

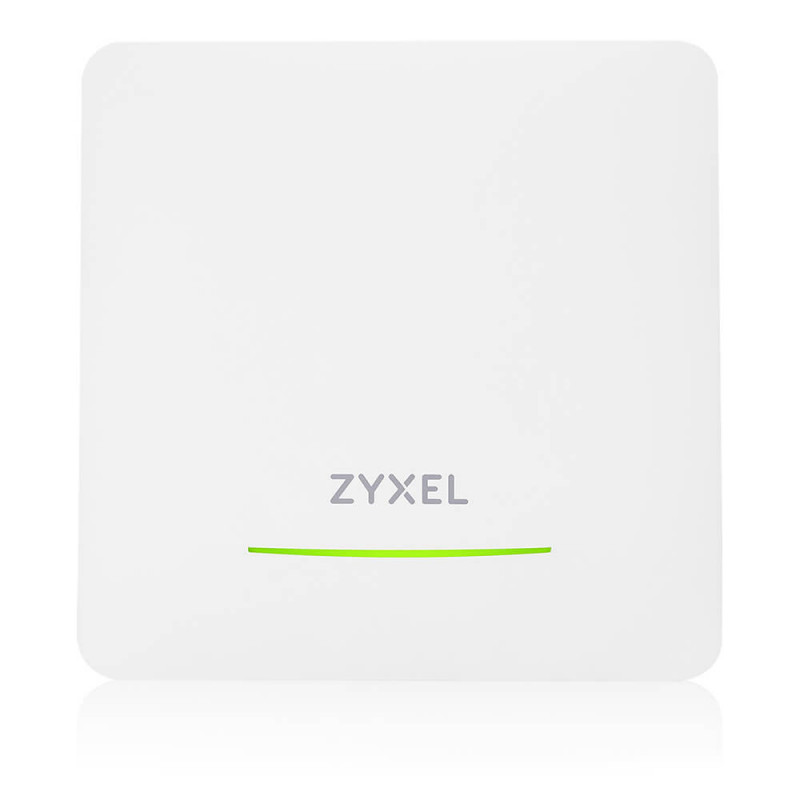

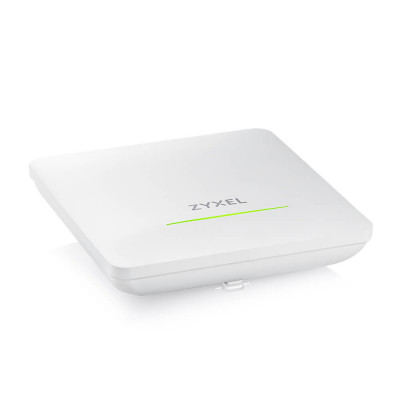

Zyxel NWA90BE PRO 5764 Mbit/s White Power over Ethernet (PoE)

Powerful. Secure. Wireless.
Future-Ready WiFi 7 for Small Businesses and SoHo Users

Future-Ready WiFi 7 for Small Businesses and SoHo Users
Zyxel’s NWA90BE PRO is a WiFi 7 access point designed for small businesses and SoHo users seeking a cost-effective yet high-performance upgrade. Ideal for home offices, compact workspaces, and residential use, it delivers a seamless transition to WiFi 7 with faster speeds and dependable, wide-reaching coverage.

Unleash WiFi 7 Speeds with Enterprise-Grade Power
Powered by a Qualcomm quad-core CPU, the BE6500 (2.4GHz: 2x2:2, 5/6GHz: 2x2:2) dual-radio access point delivers blazing-fast WiFi 7 speeds of up to 6.5Gbps, ensuring enterprise-grade performance in a compact design.

Equipped with a 2.5GbE port, the NWA90BE PRO offers a cost-effective way to experience WiFi 7’s full potential, delivering multi-gigabit speeds without disrupting your current network setup.

Smart Mesh MLO: More Bandwidth, Less Hassle
Smart Mesh MLO (Multiple Link Operation) technology automatically establishes dynamic wireless links, eliminating the need for complex, inconvenient cabling in WiFi deployments.

Unlike traditional mesh networks that rely on a single radio for data transmission, the NWA90BE PRO utilizes dual-radio backhaul, delivering superior bandwidth, enhanced interference resistance, and ultra-low latency for seamless, high-performance connectivity.

Secure Authentication to Safeguard Business Networks
With support for a captive portal, IEEE 802.1X/RADIUS authentication, the NWA90BE PRO not only offers small business users enterprise-level security to protect their networks, but also provides flexible options to customize wireless network login pages for marketing and brand recognition.

Connected – In Just a Few Clicks!
You can be connected in minutes with just a few simple clicks on the Nebula mobile app. The easy step-by-step wizard guides you through the entire installation process, and the intuitive app makes it easy to change settings as needed.

Nebula, The Intelligent Cloud Management
Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app.

With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.

Zyxel NWA90BE PRO. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5764 Mbit/s. Security algorithms: WEP, WPA, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Features
2.4 GHz	Yes
6 GHz	Yes
Maximum data transfer rate	5764 Mbit/s
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (6 GHz)	5764 Mbit/s
Ethernet LAN data rates	1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
Fast roaming	Yes
VLAN support	Yes
Security
Security algorithms	WEP, WPA, WPA2, WPA3
Auto Wireless Distribution System (WDS)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Cloud-managed	Yes

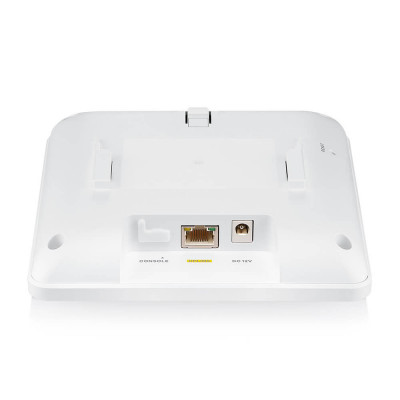

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes
Power
Power over Ethernet (PoE)	Yes
DC voltage range	12 V
Input current	0.3 A
Output current	1.5 A
Design

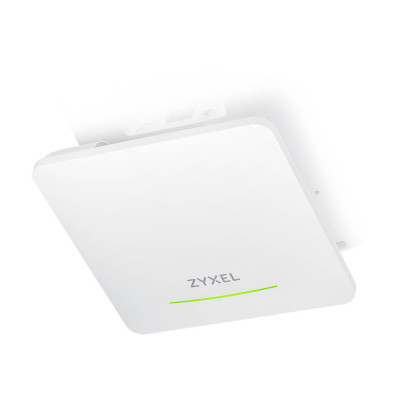

Placement	Ceiling
Product colour	White
Antenna
Antenna type	Internal
Antenna gain level (max)	3 dBi
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	35 mm
Weight	412 g
Packaging data
Package width	244 mm
Package depth	168 mm
Package height	60 mm
Package weight	785 g
Packaging content
AC adapter included	Yes
Mounting kit	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
