Ubiquiti Networks PBE-M5-400 5GHz PowerBeam AirMAX High-Performance 400mm Antenna with 25 dBi Gain, 64MB RAM, Gigabit

Product Overview

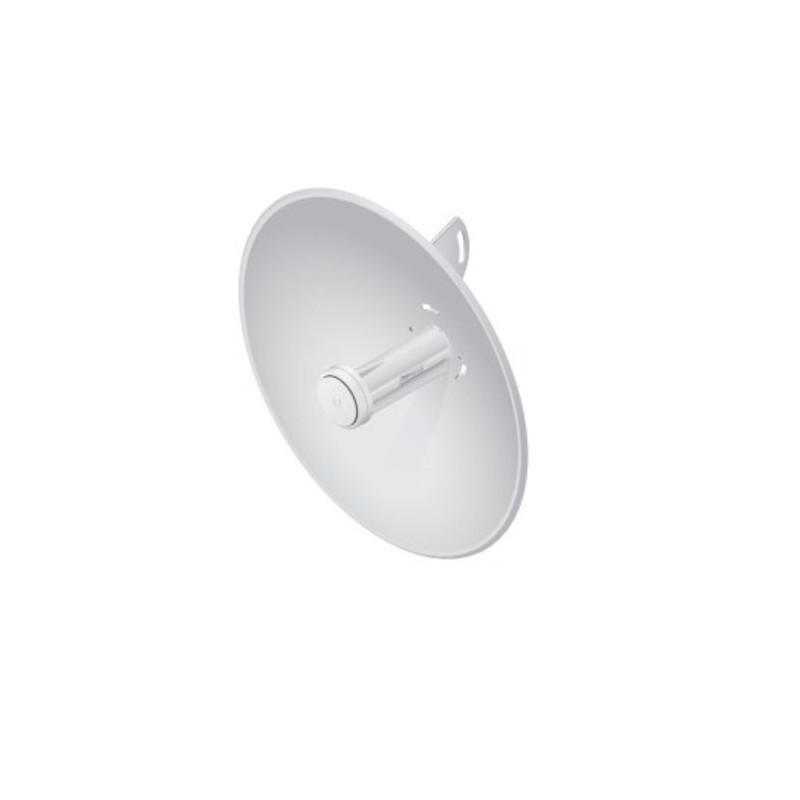

The Ubiquiti Networks PBE-M5-400 is a high-performance 5GHz PowerBeam AirMAX antenna designed for reliable point-to-point wireless communication and signal repetition. Featuring a focused 400mm dish with 25 dBi antenna gain, it ensures long-range connectivity and optimized network throughput in outdoor environments.

Ideal for wireless internet service providers and network deployments requiring directional transmission, it combines robust build quality with efficient energy usage, ensuring stable operation even under harsh environmental conditions.

Specifications

• Frequency Band: 5 GHz
• Antenna Gain: 25 dBi
• Memory: 64 MB RAM
• Ethernet: 1 x Gigabit Ethernet LAN (RJ-45)
• Power: Supports Power over Ethernet (PoE), 8 W typical consumption
• Dimensions (L x W x H): 420 x 420 x 275 mm
• Weight: 1753 g
• Operating Temperature Range: -40 to 70 °C
• Humidity Range: 5% to 95%
• Maximum Data Rate: 1000 Mbit/s
• LED Indicators: LAN, Power, WLAN
• Certifications: FCC, IC, CE certified

Usage

Designed for outdoor wireless networking setups, the PBE-M5-400 performs well in extended range wireless links and network bridging applications. Its robust environmental resistance and PoE support make it suitable for installations where power sources are limited, providing a reliable and efficient wireless solution.

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.
