Kingston 8GB, DDR4, 3200MHz, Non-ECC, CL22, 1.2V, 288-pin, JEDEC

Kingston 8GB, DDR4, 3200MHz, Non-ECC, CL22, 1.2V, 288-pin, JEDEC

MZ-KVR32N22S8/8
5 Items
€30.90
€36.19
Save €5.29
Tax included
Stock status: Moderate
In stock
Quantity
Add to Wishlist
FREE SHIPPING from 50€ in Malta and 100€ in Gozo

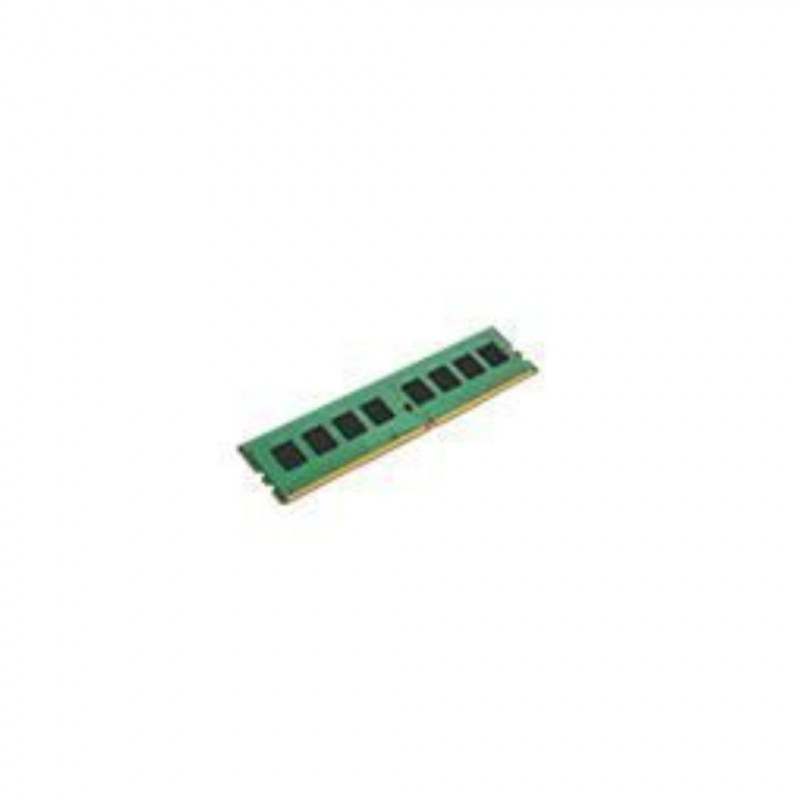

ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

  • Low-power auto self refresh (LPASR)

  • Data bus inversion (DBI) for data bus

  • On-die VREFDQ generation and calibration

  • Single-rank

  • On-board I2 serial presence-detect (SPD) EEPROM

  • 16 internal banks; 4 groups of 4 banks each

  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

  • Selectable BC4 or BL8 on-the-fly (OTF)

  • Fly-by topology
