ASUS PRIME B660M-A WIFI D4 Micro ATX Motherboard LGA1700 Intel B660 Chipset DDR4 Support up to 128GB Wi-Fi 6, Dual HDMI 2.1, Dis

Product Overview

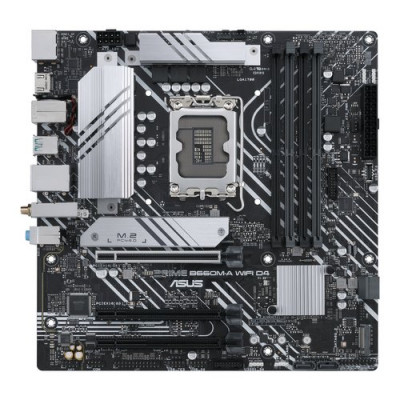

The ASUS PRIME B660M-A WIFI D4 is a micro ATX motherboard designed for Intel 12th generation Alder Lake processors featuring the LGA1700 socket and B660 chipset. Ideal for users seeking robust performance and connectivity options, it supports DDR4 memory, advanced networking, and multiple display outputs. This motherboard is suitable for building reliable desktop PCs with modern features.

Specifications

• Socket: LGA1700 for Intel Alder Lake processors
• Chipset: Intel B660
• Memory: 4 x DDR4 DIMM slots supporting up to 128GB at speeds up to 5333 MHz (OC)
• Storage: 2 x M.2 slots, 6 x SATA 3 ports supporting RAID levels 0, 1, 5, 10
• Graphics Support: Integrated graphics with 2 x HDMI 2.1 ports and 1 x DisplayPort 1.4, supporting up to 3 displays
• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16 slots
• Networking: Wi-Fi 6 (802.11ax), Gigabit Ethernet LAN, Bluetooth 5.2
• Audio: Realtek ALC897 7.1 channel audio codec
• Connectivity Ports: USB 3.1 Gen 2 Type-A ports, USB 3.0 and USB 2.0 ports, PS/2 port, S/PDIF out, front panel audio connector
• Additional Features: RGB LED headers, 12V power connector, CPU and chassis fan connectors, UEFI AMI BIOS with 128MB memory
• Form Factor: Micro ATX (244 x 244 mm), approx. 819 g weight
• Includes: SATA cables and drivers

Warranty

This product is covered by a 24-month official warranty managed directly by Maltazon, valid from the date of purchase.

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.
