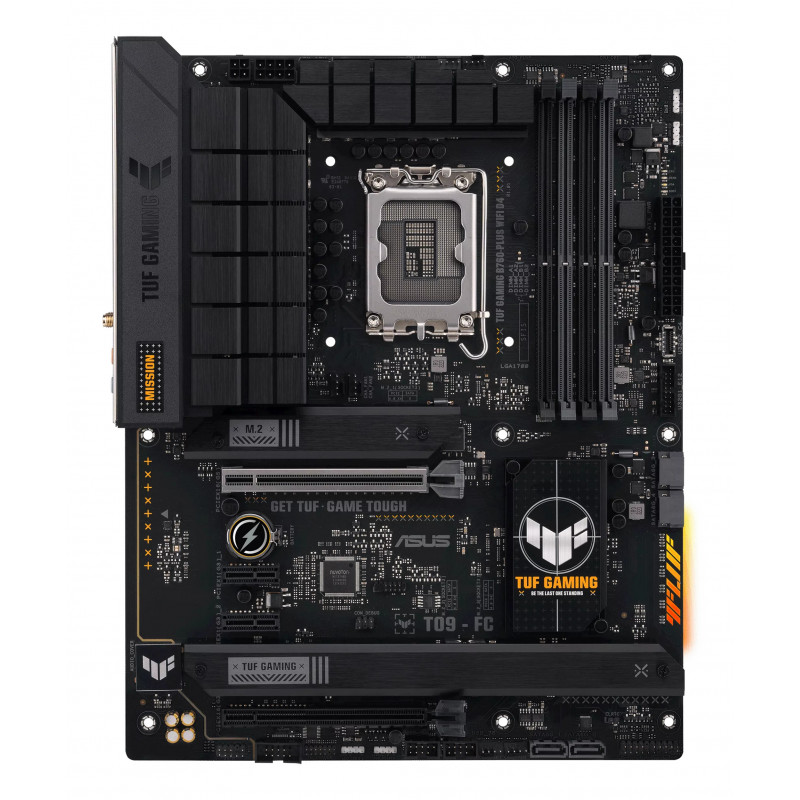

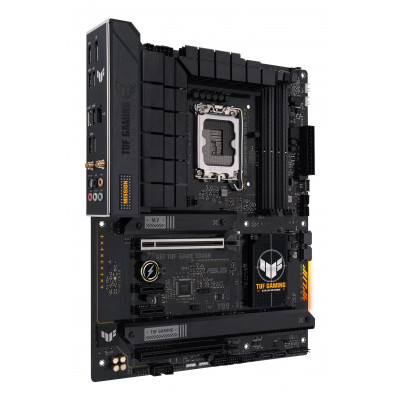

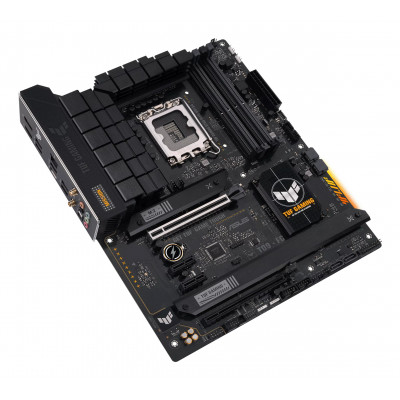

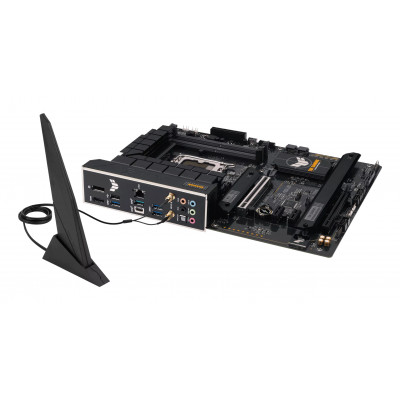

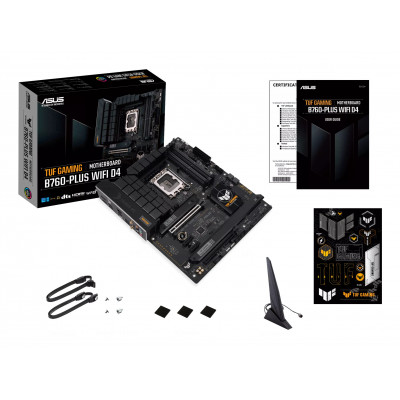

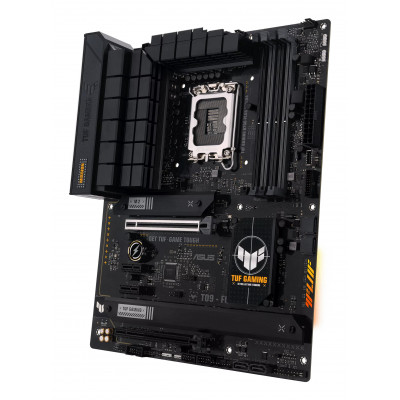

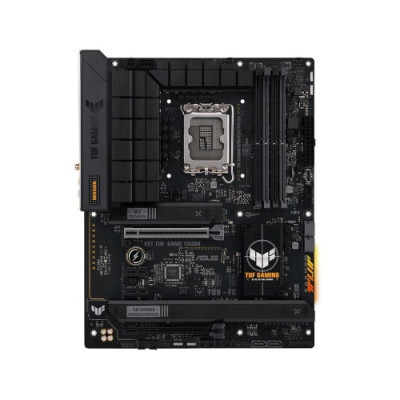

ASUS TUF GAMING B760-PLUS WIFI D4 ATX Motherboard LGA1700 Intel B760 Chipset DDR4 Dual Channel Wi-Fi 6 Bluetooth 5.2 HDMI 2.1

Product Overview

The ASUS TUF GAMING B760-PLUS WIFI D4 is a high-performance ATX motherboard designed for Intel's 12th and 13th generation processors with LGA1700 socket support. It is engineered for gaming and professional use, offering robust features for stable and efficient computing.

This motherboard supports DDR4 memory with a dual-channel architecture and includes integrated Wi-Fi 6 and Bluetooth 5.2 connectivity for seamless networking. It is suitable for building powerful gaming rigs or workstation setups.

Specifications

• Form Factor: ATX
• Chipset: Intel B760
• Processor Support: Intel LGA 1700 socket for Intel Celeron, Pentium Gold, Core i3, i5, i7, i9 (Raptor Lake and Alder Lake)
• Memory: 4 x DDR4 DIMM slots, supporting up to 128GB, speeds up to 5333 MT/s (OC), dual-channel
• Storage Support: 3 x M.2 slots, 4 x SATA III ports supporting RAID 0, 1, 5, 10
• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
• Networking: 2.5 Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Video Outputs: 1 x HDMI 2.1, 1 x DisplayPort 1.4

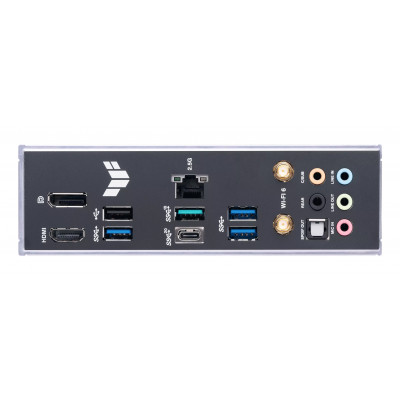

• USB Ports: Rear - 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.0 Type-A, 2 x USB 2.0
• Audio: 7.1 channel HD audio
• Cooling Support: Passive cooling with multiple fan headers (4 chassis + 1 CPU fan connector)
• BIOS: UEFI AMI with 128MB ROM
• Power Connectors: 24-pin ATX main, 8-pin EPS CPU, 4-pin Molex peripheral power
• Other Features: RGB LED header, Thunderbolt 1 port support, COM port

Usage Scenarios

This ASUS TUF GAMING motherboard is ideal for gamers, content creators, and power users who require stable performance with extensive connectivity options. Its support for PCIe 5.0 and high-speed DDR4 memory offers future-proof capabilities for demanding applications.

Suitable for desktop builds in office or home environments requiring reliable networking with Wi-Fi 6 and Ethernet, as well as multiple storage and expansion options.

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.
