Available in 12 Days
Free Shipping

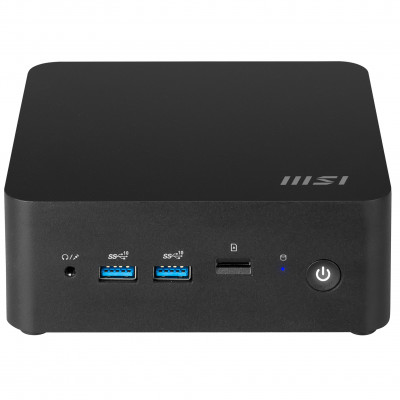

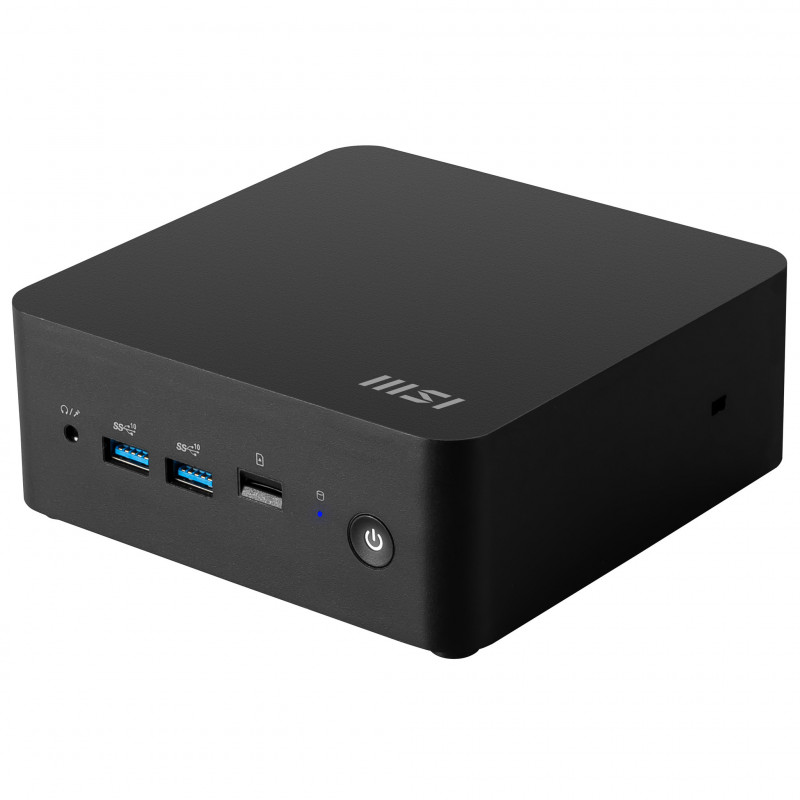

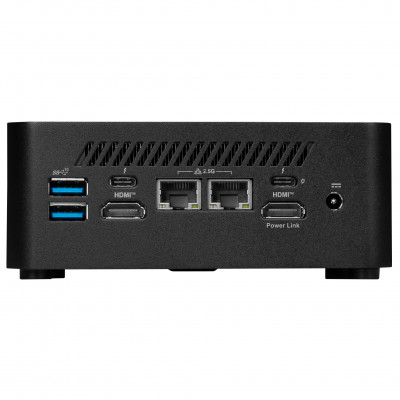

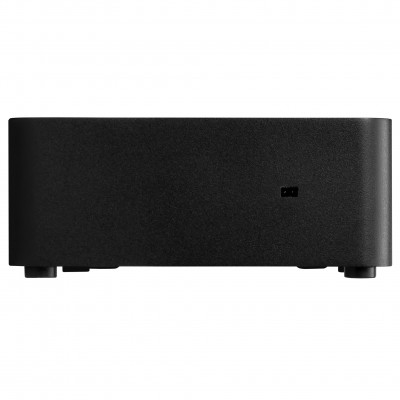

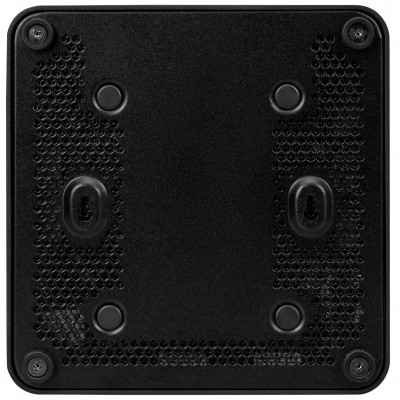

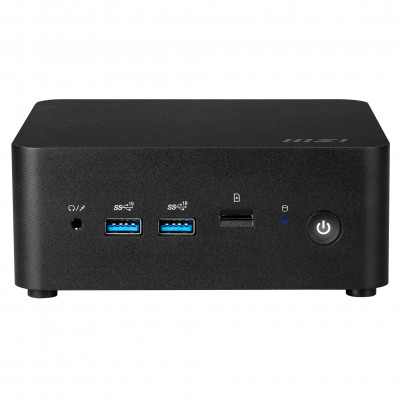

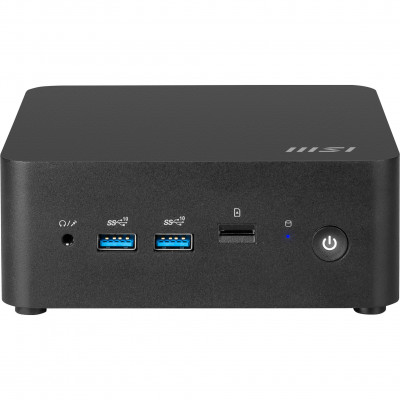

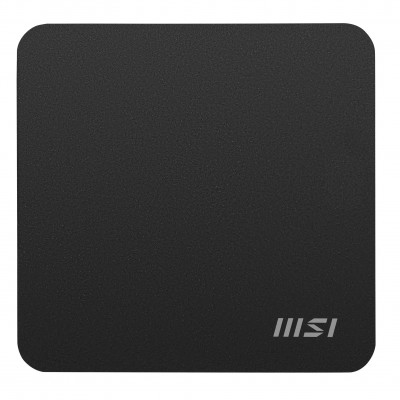

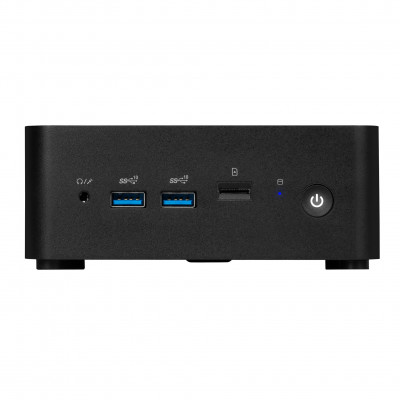

MSI Cubi NUC 1M-027IT, Intel Core 5, 120U, 16 GB, DDR5-SDRAM, 512 GB, Windows 11 Pro
MSI Cubi NUC 1M-027IT Intel Core 5 120U 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Cubi NUC 1M-027IT
1 Item
€691.33
Tax included
Built for Sustainability
The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. Our commitment extends to incorporating sustainable materials in both our product design and packaging, protecting the earth through our actions. By utilizing sustainable materials such as PCR plastics, recycled pulp from FSC™-certified forests, more active management of substances used in manufacturing processes, and the continued use of renewable energy in production processes, we ensure the products' durability and a commitment to a greener world.
The Cubi NUC Series embodies sustainable value and heightened productivity.
MSI Cubi NUC 1M-027IT. Processor family: Intel Core 5, Processor model: 120U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 0.625 g. Product colour: Black
The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. Our commitment extends to incorporating sustainable materials in both our product design and packaging, protecting the earth through our actions. By utilizing sustainable materials such as PCR plastics, recycled pulp from FSC™-certified forests, more active management of substances used in manufacturing processes, and the continued use of renewable energy in production processes, we ensure the products' durability and a commitment to a greener world.
The Cubi NUC Series embodies sustainable value and heightened productivity.
MSI Cubi NUC 1M-027IT. Processor family: Intel Core 5, Processor model: 120U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 0.625 g. Product colour: Black
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core 5 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 120U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors supported | 1 |
| Maximum turbo power | 55 W |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Storage | |
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| DisplayPorts quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Design | |
| Chassis type | Mini PC |
| VESA mounting | Yes |

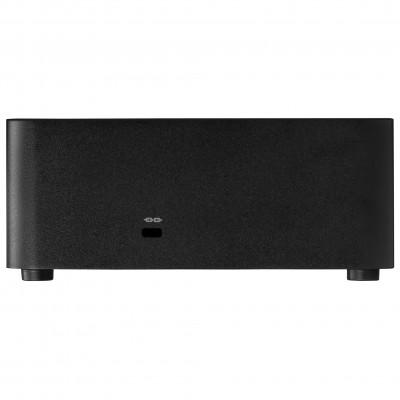

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
| Performance | |
| Product type | Mini PC |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| Built-in speaker(s) | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 0.625 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.45 g |
| Packaging content | |
| Mouse included | No |
| Keyboard included | No |
| Power cord included | Yes |
| Other features | |
| Power supply type | External AC adapter |
| Panel mounting interface | 100 x 100 mm |
| Number of M.2 (M) slots | 2 |
Cubi NUC 1M-027IT
1 Item
Data sheet
- Product type
- Mini PC
- Product colour
- Black
- Processor manufacturer
- Intel
- Maximum internal memory
- 64 GB
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- HDMI ports quantity
- 2
- Wi-Fi
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Processor family
- Intel Core 5
- Processor model
- 120U
- Internal memory
- 16 GB
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- No
- Discrete graphics card
- No
- Discrete graphics card model
- Not available
- On-board graphics card
- Yes
- On-board graphics card model
- Intel Graphics
- Ethernet LAN
- Yes
- Operating system installed
- Windows 11 Pro
- Chassis type
- mini PC
- Width
- 132.5 mm
- Depth
- 135.6 mm
- Height
- 50.1 mm
- Weight
- 0.625 g
- Display included
- No
- Power supply
- 120 W
- Thunderbolt 3 ports quantity
- 0
