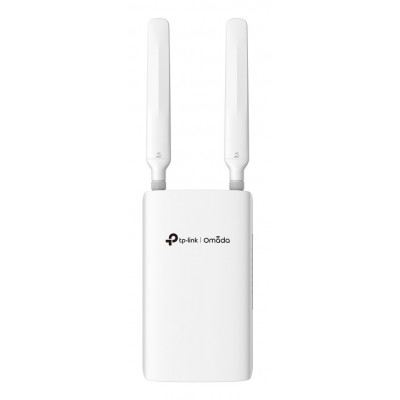

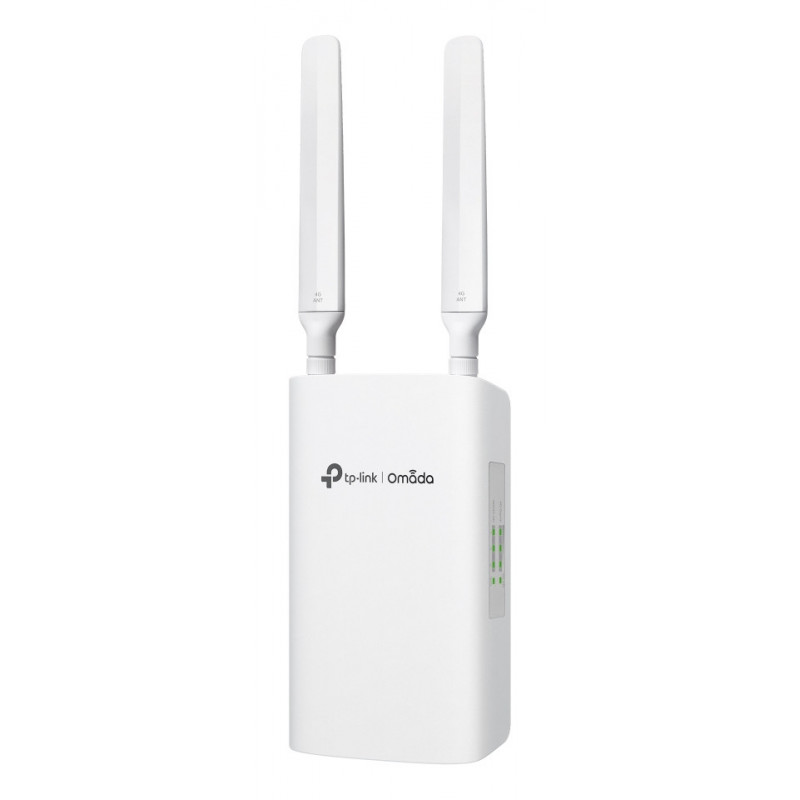

TP-Link Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s

All-in-one Device
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.

Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.

Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.

Plug and Play

Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.

Centralized Management

Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.

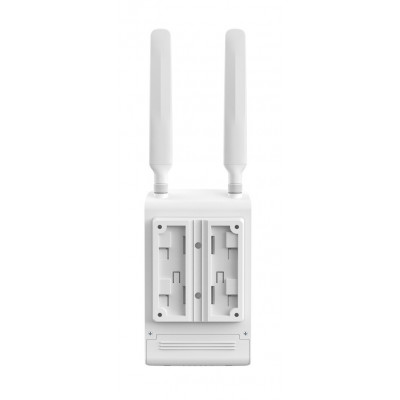

Easy Installation

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.

TP-Link Omada ER703WP-4G-Outdoor. Product colour: White, Mounting type: Wall mounting, LED indicators: Status. Antenna type: External, Antenna gain level (max): 4 dBi. Internal memory: 512 MB, Internal memory type: DDR4, Flash memory: 256 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Forwarding rate: 1453489 Mpps, Networking standards: IEEE 802.3at, IEEE 802.3bt. Security algorithms: SSID, WPA2, WPA3

Design
Product colour	White
Mounting type	Wall mounting
LED indicators	Status
Features
Antenna type	External
Antenna gain level (max)	4 dBi
Antennas quantity	2
Short Message Service (SMS)	Yes
Performance
Control display unit	No
Internal memory type	DDR4
Flash memory	256 MB
Protocols
DHCP server	Yes
Network
Forwarding rate	1453489 Mpps
Networking standards	IEEE 802.3at, IEEE 802.3bt
Wi-Fi	Yes
Mobile network generation	4G
Data network	LTE
Downlink/uplink speed	300/50 Mbit/s
GSM bands supported	850,900,1800,2100 MHz
Frequency band	2.4/5 GHz
All services ready time	3.8 s
SSL VPN tunnels (max)	50
Security
MAC address filtering	Yes
Security algorithms	SSID, WPA2, WPA3
Ports & interfaces
SIM card type	NanoSIM
DC-in jack	Yes
Management features
Web-based management	Yes
Power
Power consumption (max)	16.6 W
Power over Ethernet (PoE)	Yes
Weight & dimensions
Height	38.7 mm
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 90%
