Product specifications:
Wireless:
Standards: IEEE 802.11n/b/g (2.4 GHz) – Wi-Fi 4
Speed: Up to 300 Mbps
Range: Ideal for 2-bedroom homes
Antennas: 2× fixed antennas
Modes: Router, Access Point, Range Extender, WISP
Security:
Encryption: WEP, WPA/WPA2, WPA/WPA2-Enterprise (802.1x)
Features: SPI Firewall, Access Control, IP & MAC Binding, Guest Network
Hardware:
CPU: Single-Core
Ports: 1× WAN, 2× LAN (all 10/100 Mbps)
Power: 5V ? 0.6A
Buttons: Reset
Software:
Protocols: IPv4, IPv6
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
QoS: By device
Parental Controls: URL & Time Filtering
DDNS: NO-IP, DynDNS
Management: Web UI, Tether App
Other Features: Port Forwarding, DMZ, UPnP, IPTV Support
Environmental:
Operating Temp: 0–40°C
Storage Temp: -40–70°C
Humidity: 10–90% (non-condensing)
Physical:
Size: 115 × 106.7 × 24.3 mm
In the Box: Router, Power Adapter, Ethernet Cable, Quick Guide
Certifications: FCC, CE, RoHS

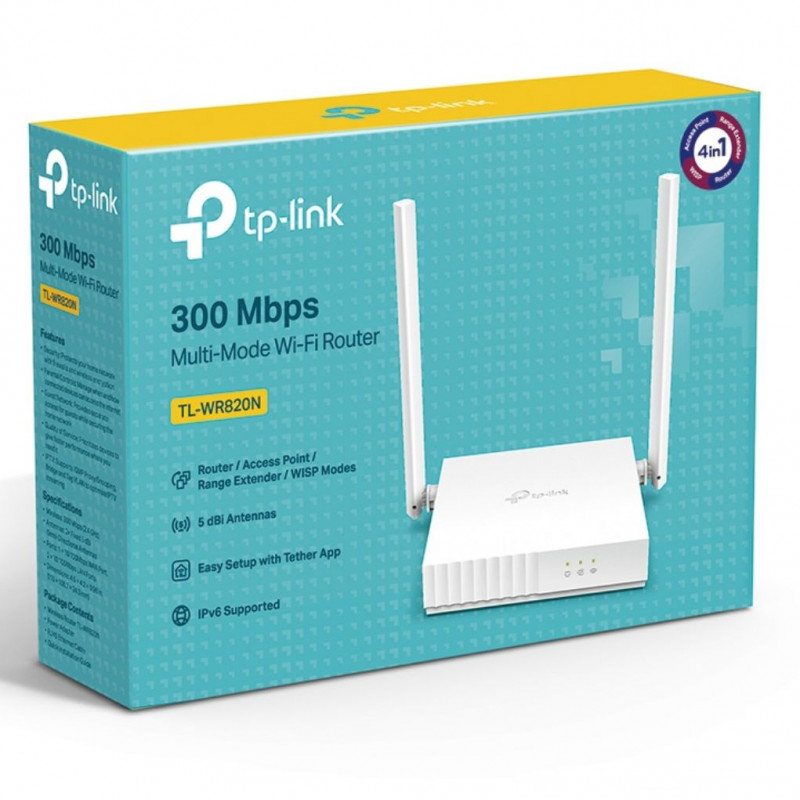

TL-WR820N 300 Mbps Multi-Mode Wi-Fi Router overview:
300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming.
IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
Guest Network provides separate access for guests while securing the host network.
Parental Controls manage when and how connected devices can access the internet.
SPI firewall and wireless encryption protect your home network.
Compatible with IPv6 (Internet Protocol version 6)
