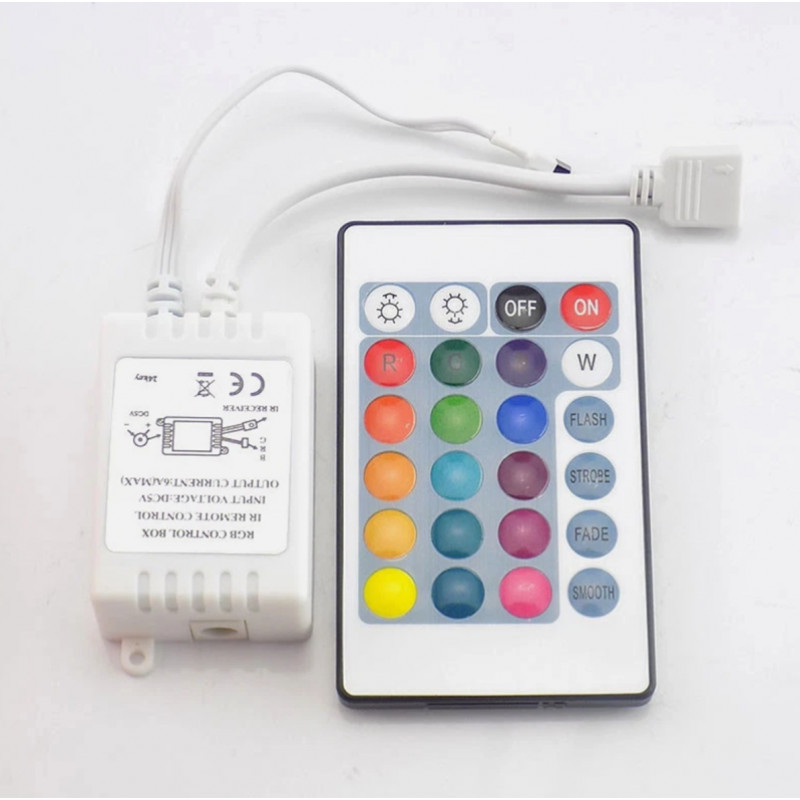

Plug-and-play controller to add colors, effects and dimming to 12V RGB LED strips. The compact control box connects between your power supply and your 4-pin RGB strip and is operated by the included 24-key infrared remote (R/G/B/W quick keys + 16 colors + 4 effects: Flash, Strobe, Fade, Smooth).
Highlights
-
Easy control: ON/OFF, brightness up/down, 16 preset colors, and 4 dynamic modes.
-
For 12V RGB strips: works with common 3528/5050 4-pin RGB LED tapes.
-
Up to 6A total output (~72 W at 12V).
-
IR receiver built into the control box—point the remote at it for reliable response.
-
Compact inline design for quick, tidy installations behind TVs, shelves, cabinets, signs, etc.
Specifications
-
Input voltage: DC 12V
-
Output: RGB, 3 channels, max 6A total
-
Output connector: 4-pin RGB (to LED strip)
-
Control: IR remote, 24 keys (R/G/B/W, 16 colors, Flash, Strobe, Fade, Smooth, brightness ±)
-
Use: Indoor (controller is not waterproof)
Compatibility
-
12V, non-addressable RGB LED strips (4-pin).
-
Not suitable for 5V USB strips, RGBW/RGBIC/addressable strips, or 24V strips.
What’s in the box
Quick install
-
Connect a 12V DC power supply (sized for your strip’s wattage).
-
Plug the 4-pin lead into the strip (match the arrows/“+12V”).
-
Keep the IR receiver visible; use the remote to set color, brightness, and effects.
Note: Do not exceed 6A/72W total load on the controller. For longer runs, split the strip across multiple controllers or use an amplifier.
