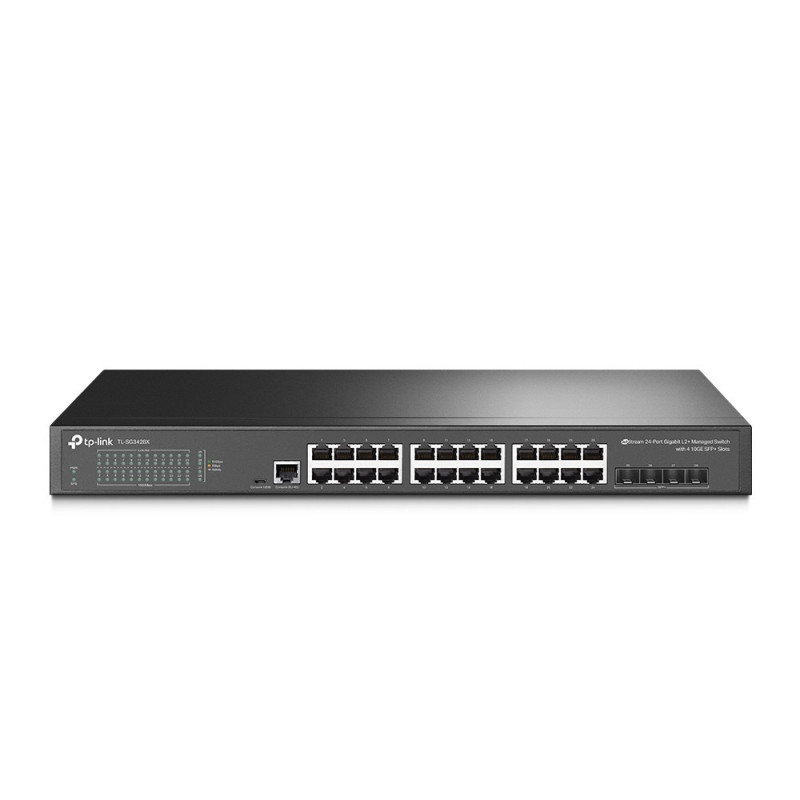

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U

Management features
Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45/micro-USB
Power connector	AC-in jack
Network
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Policy-based routing	Yes
IPv6 routes	48
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.23 Mpps
Store-and-forward	Yes
Static route	Yes
Number of static routes	48
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	AAA, RADIUS, TACACS+
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	0 fan(s)
Performance
Fanless	Yes
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	23.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	80.353 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Cables included	LAN (RJ-45)
Quick start guide	Yes
Packaging data
Package width	528 mm
Package depth	250 mm
Package height	80 mm
Package weight	2.69 kg
Logistics data
Harmonized System (HS) code	85176990
