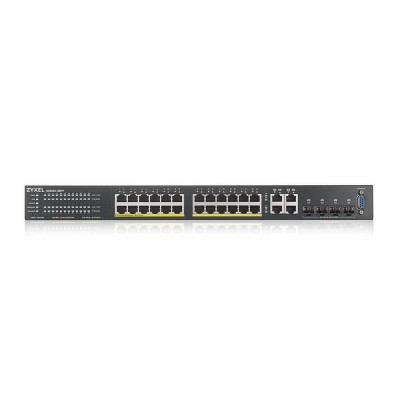

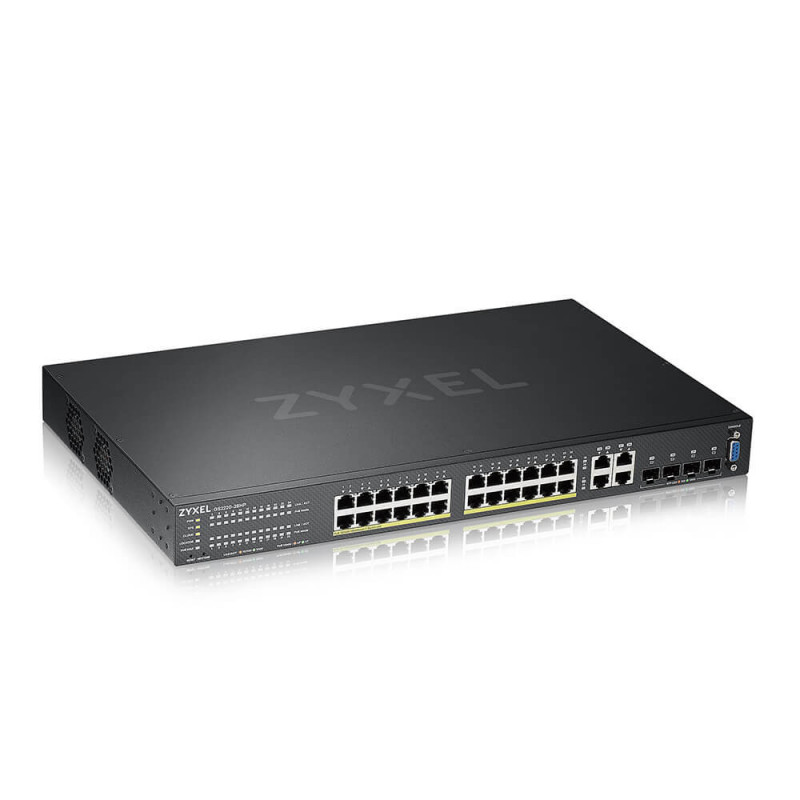

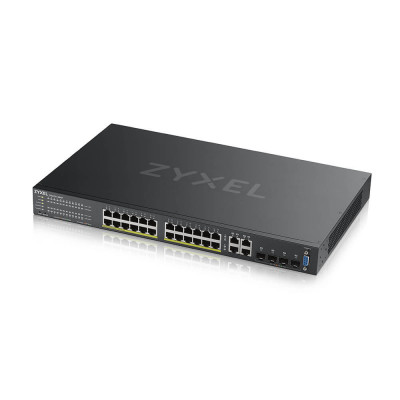

Zyxel GS2220-28HP-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Designed for converged networks
GS2220 Series
Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.

Industry first tri-mode switch.
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.

Powerful L2 features.
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.

Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.

Intelligent PoE+ powers more devices.
The intelligent consumption mode delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. The switch supports the IEEE 802.3at providing a maximum of 30W per port and 180W total budget.

Experience whisper-silent operations.
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.

Flexible port combination.
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.


Zyxel GS2220-28HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-TX, 1000BASE-T
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Data transmission
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Forwarding rate	42 Mpps
Packet buffer memory	1.5 MB
Security
DHCP features	DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	IEEE 802.1x, RADIUS
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Black
Performance
Internal memory	256 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	693245 h
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	463.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	375 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	1580.535 BTU/h
Weight & dimensions
Width	441 mm
Depth	270 mm
Height	44 mm
Weight	3.8 kg
Packaging content
Cables included	AC
Packaging data
Package width	616 mm
Package depth	355 mm
Package height	107 mm
Package weight	4.97 kg
Logistics data
Harmonized System (HS) code	85176990
