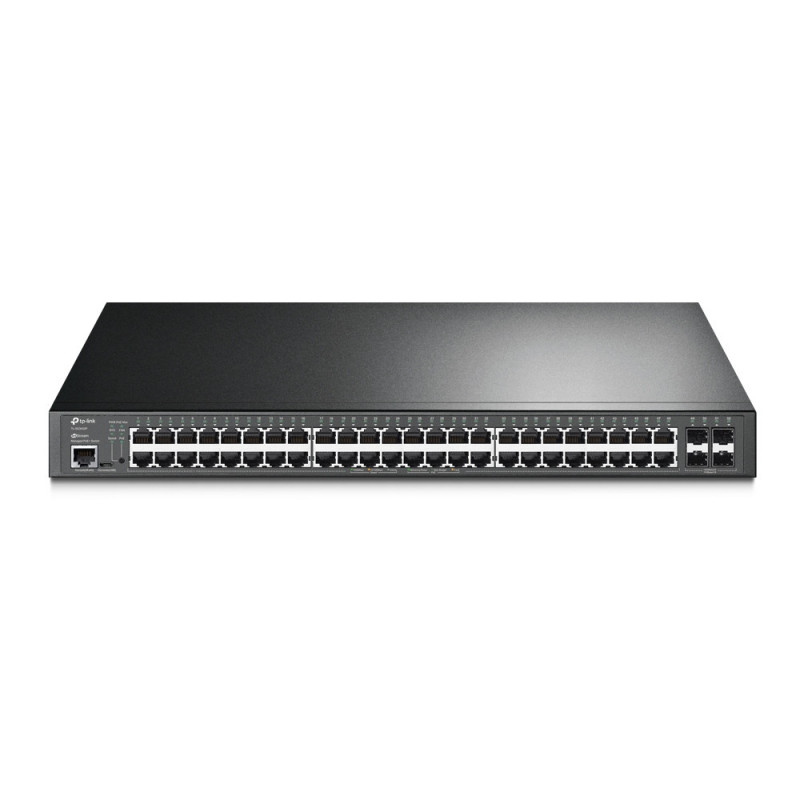

TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

TL-SG3452P
1 Item
€881.59
Tax included
Stock status: Very low
Last ones in stock
Quantity
Add to Wishlist
FREE SHIPPING from 50€ in Malta and 100€ in Gozo
JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Management features
Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Cloud-managedYes
ARP inspectionYes
System event logYes
MIB supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP module slots quantity4
Console portRJ-45/micro-USB
Power connectorAC-in jack
Network
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G supportNo
Port mirroringYes
Policy-based routingYes
Active link detectionYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4000
Data transmission
MAC address table16000 entries
Switching capacity104 Gbit/s
Forwarding rate77.4 Mpps
Store-and-forwardYes
Static routeYes
Number of static routes48
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory12 MB
Security
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
Password protectionYes
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
Design
Rack mountingYes
Form factor1U
Product colourBlack
Reset buttonYes
LED indicatorsYes
Number of fans3 fan(s)
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)485.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity48
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget384 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation1656.19 BTU/h
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Packaging content
Cables includedAC
Quick start guideYes
ManualYes
Packaging data
Package typeBox
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight6.77 kg
Logistics data
Harmonized System (HS) code85176990
TL-SG3452P
1 Item

Data sheet

Power source
AC
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
10G support
No
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Power over Ethernet (PoE)
Yes
Rack mounting
Yes
Power supply included
Yes
Installed SFP+ modules quantity
0
Installed SFP modules quantity
0
