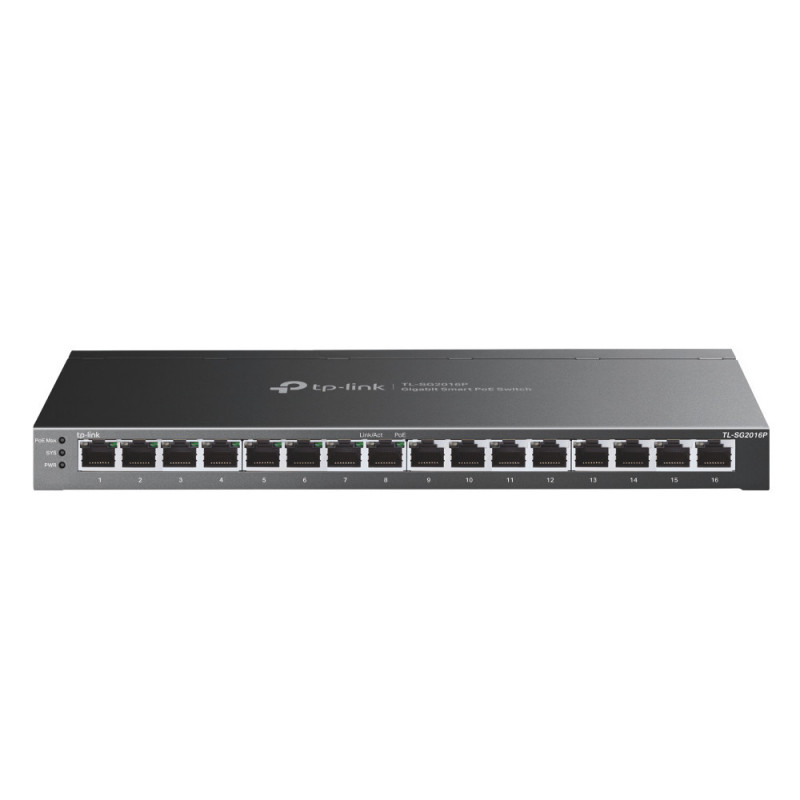

TP-Link JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

Smarter Switching for Smarter Results
JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

Multiple Application Scenarios
The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Value-Added Features Bring Unexpected Experience
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.

VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

TP-Link JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)

Management features
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
Networking standards	IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Port mirroring	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
Security
DHCP features	DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address entries	Dynamic MAC address entries, Static MAC address entries
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Design
Product colour	Black
Housing material	Metal
LED indicators	PoE, Power, System
Performance
Firmware upgradeable	Yes
Fanless	Yes
Minimum system requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux
Power
Power source	DC/PoE
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (max)	146.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	499.98 BTU/h
Weight & dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Packaging content
Manual	Yes
Packaging data
Package width	227 mm
Package depth	434 mm
Package height	70 mm
Package weight	1.94 kg
