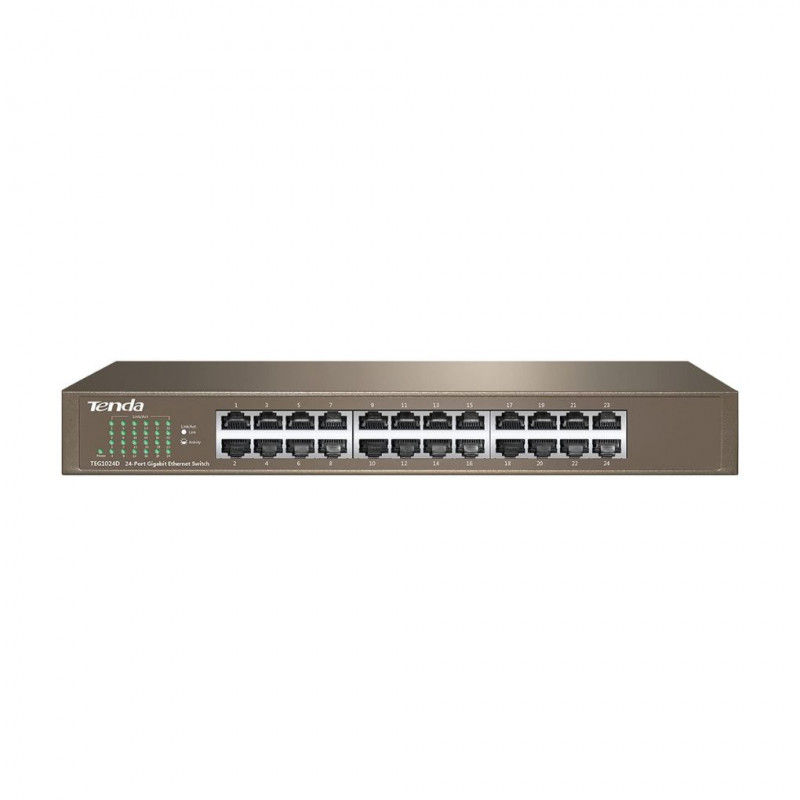

The Tenda TEG1024D 24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps
of full duplex transmission rate, line-speed forwarding by all ports, and large
cache capacity ensure the timely transfer of large files and stable streaming video.
Stay connected for 7*24.
-
Standard&Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
-
Cabling type: Category 5e or better
-
Port: 24*10/100/1000M Base-T Ethernet ports (Auto MDI/MDIX)
-
LED indicator: 1*Power,24*Link/Act
-
Dimension: 294mm×178mm×44mm , 1U height
-
Mounting options: Desktop or rack mount
-
Forwarding Mode: Store and Forward
-
MAC Address Table: 8K
-
Switching Capacity: 48Gbps / non-blocking
-
Forwarding capacity: 23.8 mpps
-
Lightning Protection: 6KV for power supply, 6KV for all RJ45 ports
-
Power Supply: 100~240V AC, 50/60Hz
-
Temperature: Operating|Storage temperature:-10°C~45°C | -40°C~70°C
-
Humidity: Operating|Storage humidity:10%~90% RH(noncondensing) | 5%~90%
RH(noncondensing)
