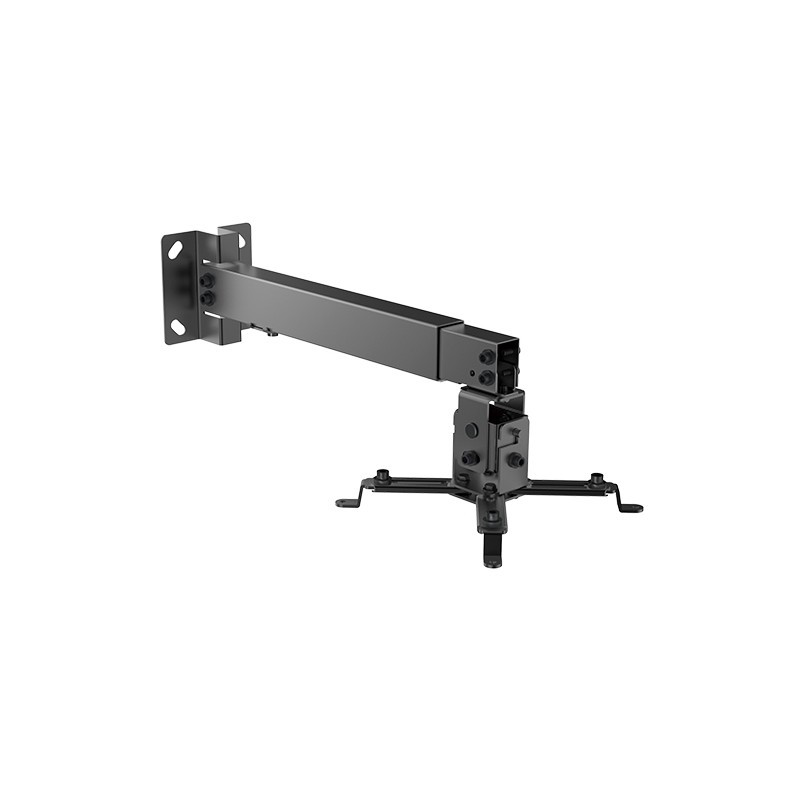

Arm LINK LKBR04 for Wall or Ceiling Mounted Projector

This is a universal projector bracket, which can be used to mount the projector on either a wall or ceiling. Supports projectors weighing up to 20 kg. Very solid steel construction. Adjustable viewing angle in two sizes to suit different needs. 4 projector arms with holes in different positions offer flexible and universal positioning to suit all common projectors. Quick release connection to quickly install the projector and quickly remove it when maintenance is required, without the need to re-align. It adjusts in height from a minimum of 43 cm to a maximum of 65 cm, so it adapts to different situations. The cable management system keeps cables hidden and organised.

Product dimensions: 237x203x650

For projectors with hole distances from: 225 to 316mm

Inclination: -15°~+15°

Rotation: -8°~+8°

Adjustable height: 430-650mm

Screws and dowels included.

Manual in Italian.
