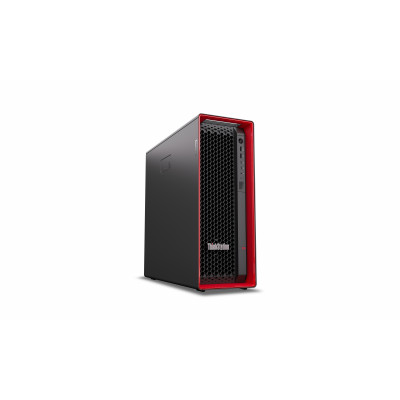

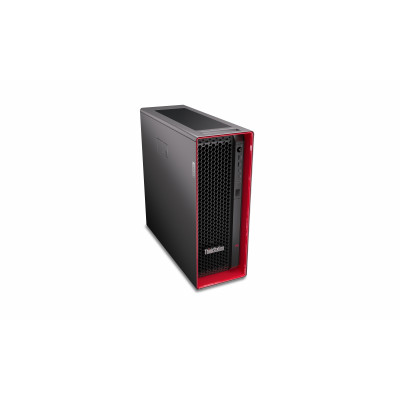

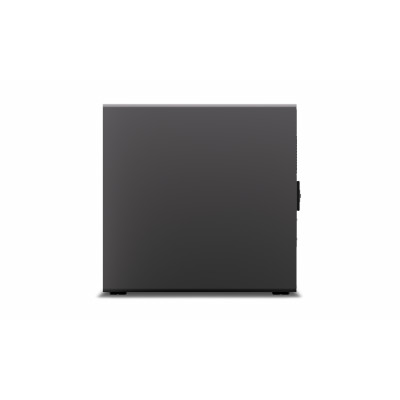

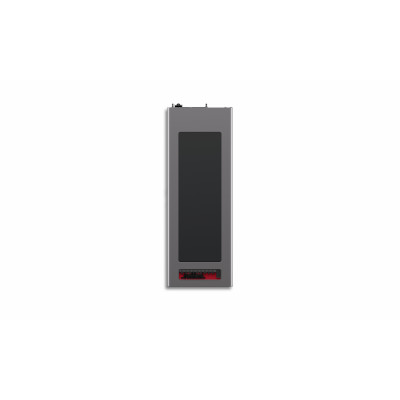

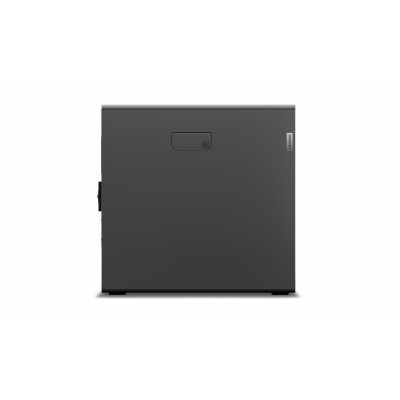

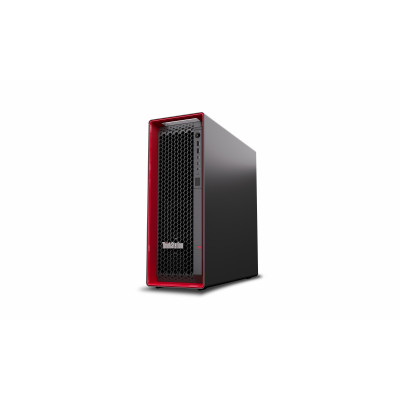

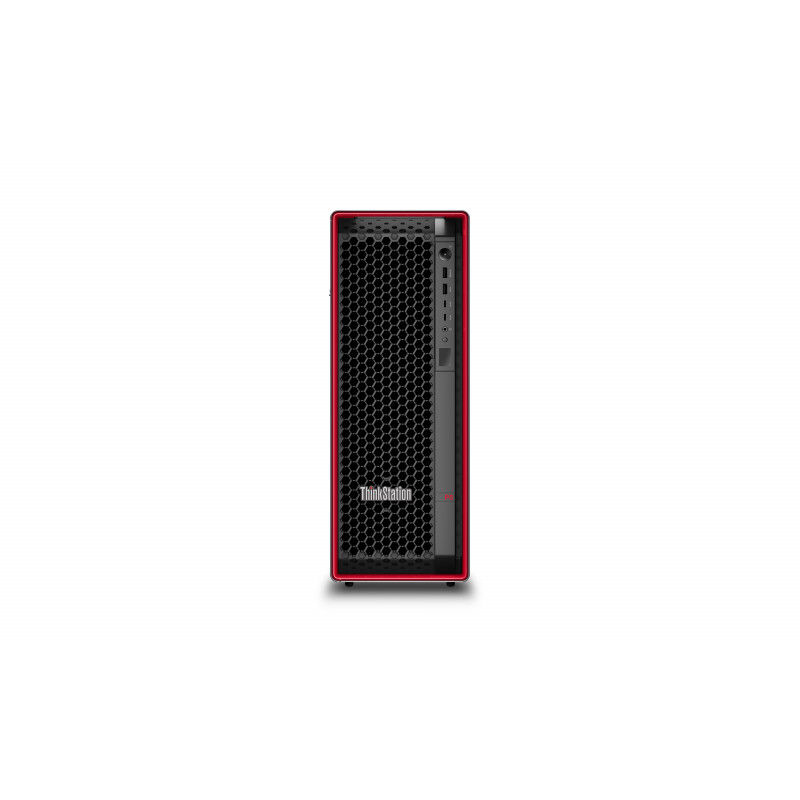

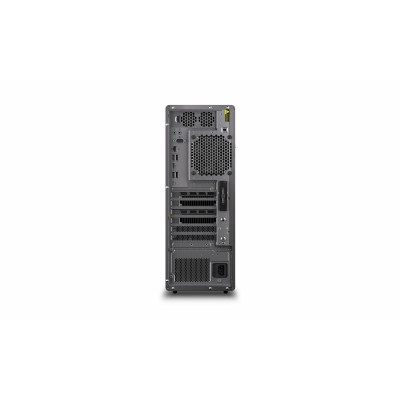

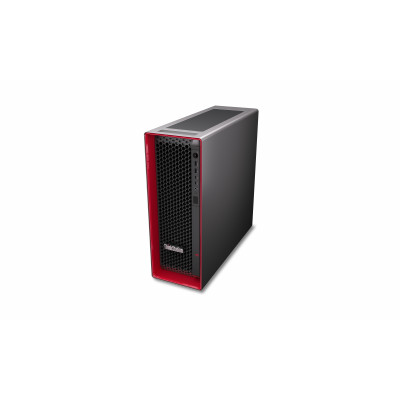

Lenovo ThinkStation P5 Intel Xeon W W3-2525 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A2000 Windows 11 Pro for Workstations Tower

The next-gen workstation has arrived
Engineered for ultimate productivity and versatility, the Lenovo ThinkStation P5 is the all-around industry workhorse for professionals that demand a scalable, future-proof workstation. Optimized for designers, engineers, and creatives alike, it can support a broad range of compute-intensive tasks with ease, including BIM, complex 3D CAD, VFX, and edge deployments.

Extraordinary performance, power, & speed
With its Aston Martin-inspired chassis design and advanced thermals, the ThinkStation P5 workstation is designed to achieve groundbreaking performance. Key features include the latest Intel® Xeon® W processors, delivering a breakthrough new compute architecture, and support for up to two optional NVIDIA® RTX™ graphics cards, offering unprecedented rendering and AI performance. The result? Enough punch for any workflow, even in mission-critical environments.

Tried, tested, & true
The ThinkStation P5 workstation has been proven to meet Lenovo's exacting reliability and durability standards, ensuring that your systems leverage maximum uptime. It also boasts an array of independent software vendor (ISV) certifications, so compute-intensive applications, such as Adobe® and PTC®, are tuned to run seamlessly on even the most complex of tasks.

See the complete list of ISV certifications.

A future-proof machine
With high-speed DDR5 memory and ultra-fast PCIe storage, the ThinkStation P5 workstation is designed to improve your productivity. It also has the convenience of front drive access, hot-swap storage, tool-less chassis access, and an array of high-performance configurations. As a result, you can enjoy the flexibility of customizing your P5 to tackle your workload needs of today, knowing you can easily upgrade for the ever-increasing datasets of tomorrow.

One less thing to worry about
The ThinkStation P5 comes with ThinkShield—a suite of essential hardware and software security solutions that work together to protect your workstation and data. Trusted Platform Module (TPM) encrypts your data, while ensuring that your machine has not been tampered with. There are also various programs to prevent unauthorized access to the BIOS—and even self-heal the BIOS should it become corrupted or is maliciously attacked.

Specifications may vary depending upon region / model.

Lenovo ThinkStation P5. Processor frequency: 3.5 GHz, Processor family: Intel Xeon W, Processor model: W3-2525. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 1 TB, Storage media: SSD. Discrete graphics card model: NVIDIA RTX A2000. Operating system installed: Windows 11 Pro for Workstations, Operating system architecture: 64-bit. Power supply: 750 W. Chassis type: Tower. Product type: Workstation. Product colour: Black, Red

Processor
Processor manufacturer	Intel
Processor family	Intel Xeon W
Processor model	W3-2525
Processor cores	8
Processor threads	16
Processor boost frequency	4.5 GHz
Processor frequency	3.5 GHz
Performance cores	8
Efficient cores	0
Processor cache	22.5 MB
Processor cache type	Smart Cache
Number of processors installed	1
Maximum turbo power	210 W
Memory
Internal memory	32 GB
Maximum internal memory	512 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory slots	8x DIMM
Memory clock speed	4800 MHz
Memory channels	Quad-channel
Storage
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Graphics
Discrete graphics card	Yes
On-board graphics card	No
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX A2000
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR6
Number of discrete graphics cards	1
On-board graphics card model	Not available
Graphics card Mini DisplayPort ports quantity	4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Wi-Fi	No
Bluetooth	No
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Line-in	Yes
Combo headphone/mic port	Yes
Design
Chassis type	Tower
Volume	33 L
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Red
Performance
Product type	Workstation
Motherboard chipset	Intel W790
Audio chip	Realtek ALC897-Q
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Number of speakers	1
Password protection	Yes
Password protection type	Power on, Supervisor
BIOS type	UEFI
Trusted Platform Module (TPM)	Yes
Software
Operating system installed	Windows 11 Pro for Workstations
Operating system architecture	64-bit
Operating system language	German, Dutch, English, French, Italian
Power
Power supply	750 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
80 PLUS certification	80 PLUS Platinum
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Weight & dimensions
Width	165 mm
Depth	453.9 mm
Height	446 mm
Weight	19 kg
Packaging content
Mouse connectivity	Wired
Keyboard connectivity	Wired
