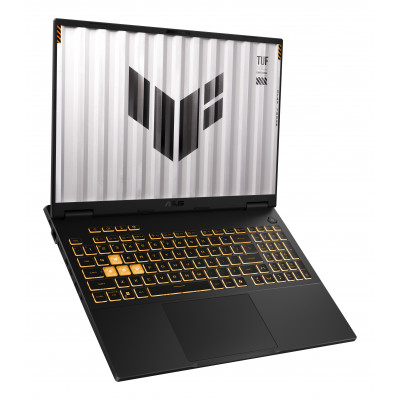

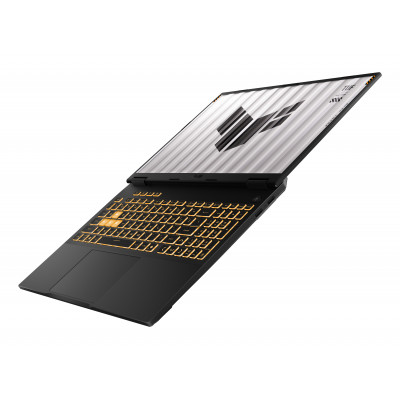

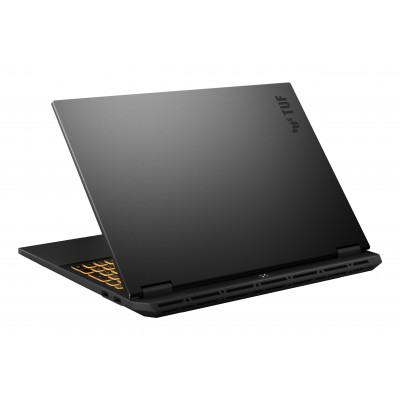

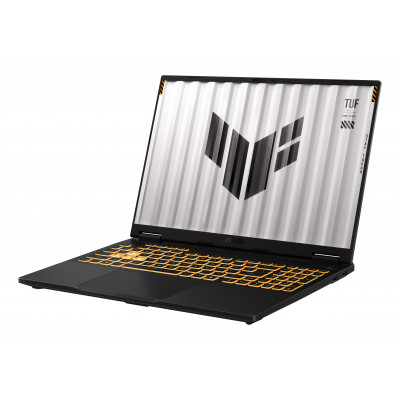

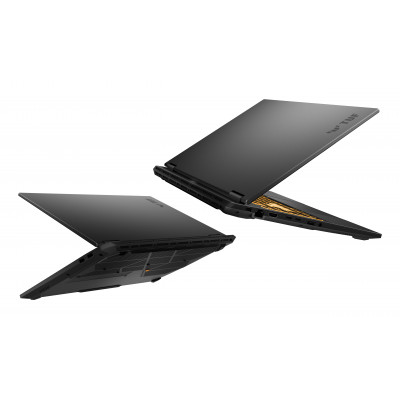

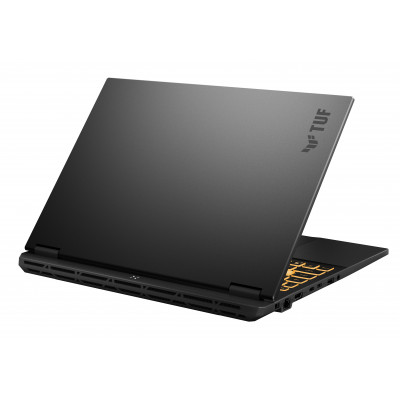

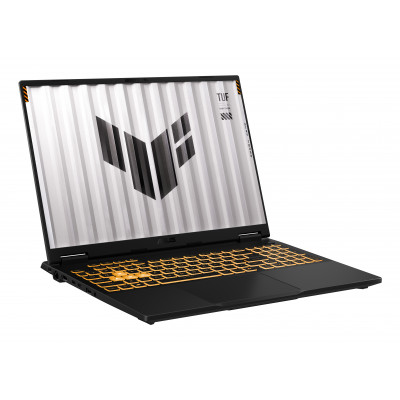

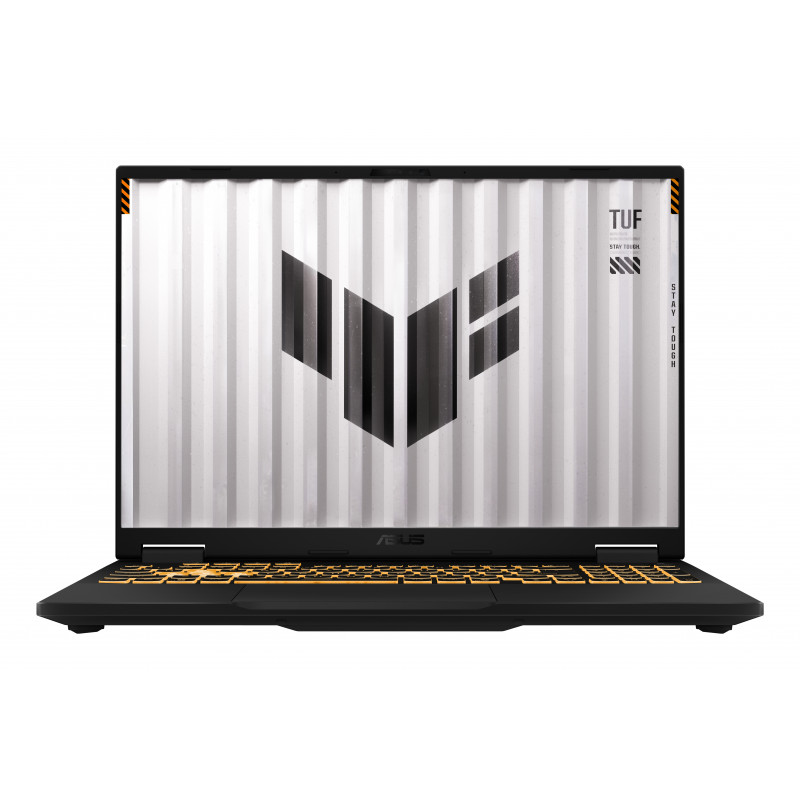

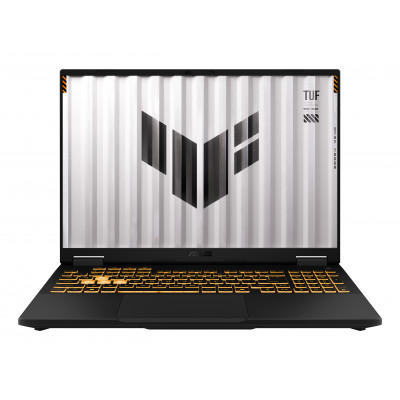

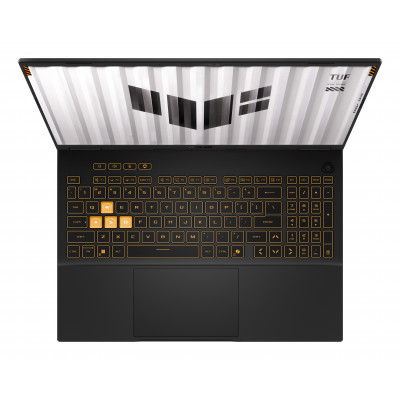

ASUS TUF Gaming F16 FX608JHI-TU657W Intel® Core™ i7 i7-14650HX Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA®
90NR0NA1-M00HR0
62 Items
Serious gaming specs
As a member of the TUF Gaming family, the F16 boasts some seriously impressive specs, giving you access to the very best of gaming on Windows 11. Featuring up to an Intel® Core™ Ultra 9 processor 275HX and up to an NVIDIA® GeForce RTX™ 5070 Laptop GPU, the F16 can easily play the latest games or keep your workflow on schedule. Paired with up to 32GB of DDR5 5600MHz memory per slot and up to 4TB of expandable PCIe Gen 4 storage, this little machine is ready for anything, right out of the box.
ASUS TUF Gaming F16 FX608JHI-TU657W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-14650HX. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA® GeForce RTX™ 5050. Operating system installed: Windows 11 Home. Product colour: Grey
As a member of the TUF Gaming family, the F16 boasts some seriously impressive specs, giving you access to the very best of gaming on Windows 11. Featuring up to an Intel® Core™ Ultra 9 processor 275HX and up to an NVIDIA® GeForce RTX™ 5070 Laptop GPU, the F16 can easily play the latest games or keep your workflow on schedule. Paired with up to 32GB of DDR5 5600MHz memory per slot and up to 4TB of expandable PCIe Gen 4 storage, this little machine is ready for anything, right out of the box.
ASUS TUF Gaming F16 FX608JHI-TU657W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-14650HX. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA® GeForce RTX™ 5050. Operating system installed: Windows 11 Home. Product colour: Grey
| Design | |
| Product type | Laptop |
| Product colour | Grey |
| Colour name | Jaeger Gray |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Certified refurbished | No |
| Display | |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS-Level |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Colour gamut | 100% |
| Maximum refresh rate | 144 Hz |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14650HX |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.2 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1964 |
| Maximum turbo power | 157 W |
| Neural processor unit (NPU) | |
| Copilot+ PC | No |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 5050 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Total Graphics Power (TGP) | 115 W |
| NVIDIA G-SYNC | Yes |
| Audio | |
| Audio system | Dolby Atmos |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit zone | 1-zone RGB |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 70 Wh |
| Power | |
| AC adapter power | 200 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 10 A |
| AC adapter output voltage | 20 V |
| DC-in jack | Yes |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Width | 354 mm |
| Depth | 269 mm |
| Height (front) | 1.79 cm |
| Height (rear) | 2.73 cm |
| Packaging content | |
| AC adapter included | Yes |
90NR0NA1-M00HR0
62 Items
Data sheet
- Product type
- Laptop
- Product colour
- Grey
- Processor manufacturer
- Intel
- Maximum internal memory
- 64 GB
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- HDMI ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- Form factor
- Clamshell
- Display diagonal
- 40.6 cm (16")
- Display resolution
- 1920 x 1200 pixels
- Touchscreen
- No
- Processor family
- Intel® Core™ i7
- Processor model
- i7-14650HX
- Internal memory
- 16 GB
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- No
- Discrete graphics card
- Yes
- Discrete graphics card model
- NVIDIA® GeForce RTX™ 5050
- On-board graphics card
- Yes
- On-board graphics card model
- Intel® UHD Graphics
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Operating system installed
- Windows 11 Home
- Weight
- 2.2 kg
- Mobile network connection
- No
- Numeric keypad
- Yes
- Battery capacity
- 70 Wh
- USB Type-C charging port
- Yes
- AC adapter included
- Yes
