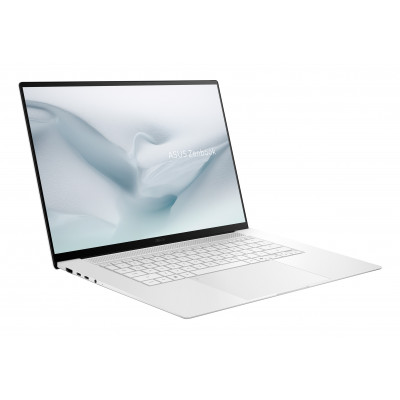

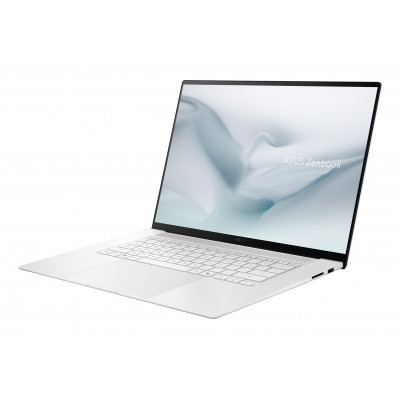

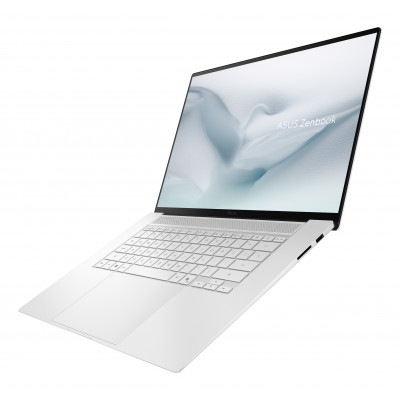

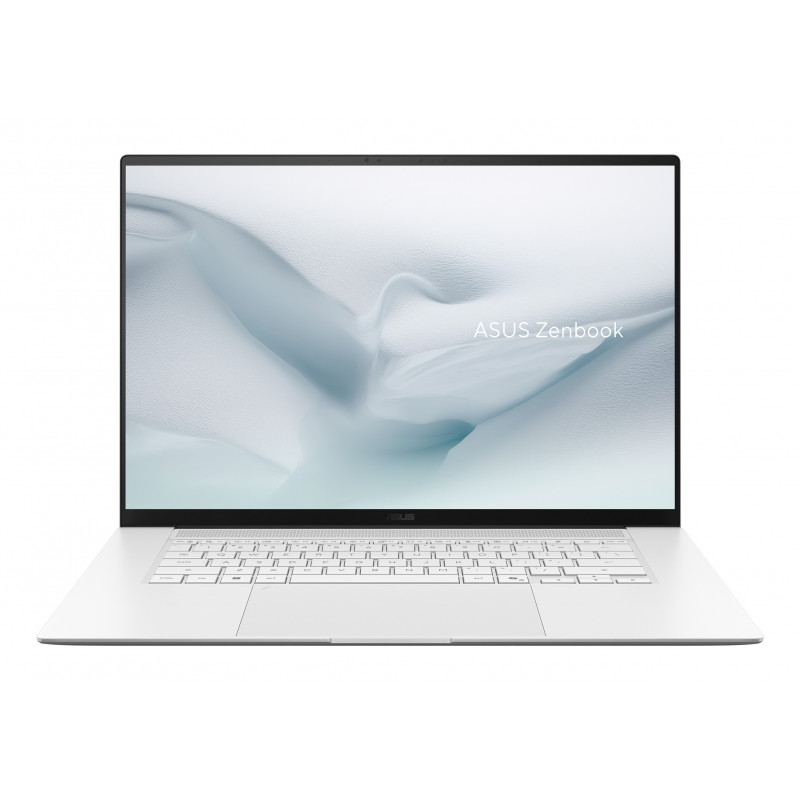

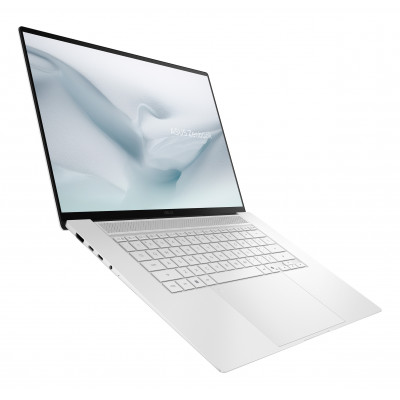

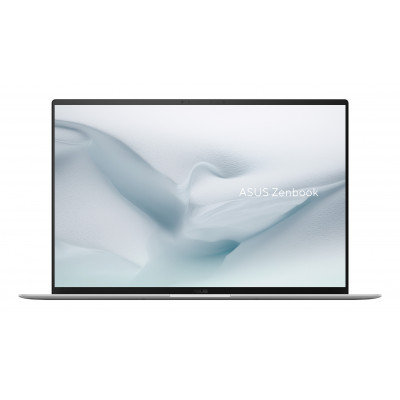

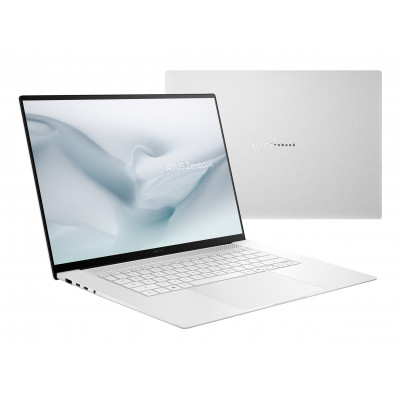

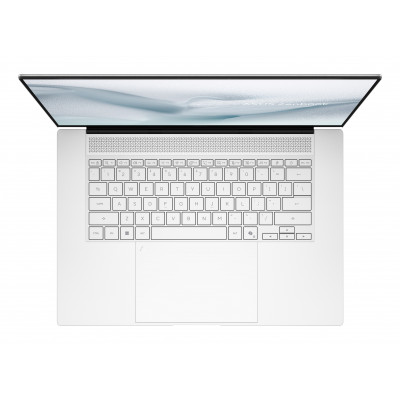

ASUS Zenbook S16 UM5606GA-SR334W Copilot+ PC AMD Ryzen AI 9 465 Laptop 40.6 cm (16") Touchscreen 3K 32 GB LPDDR5x-SDRAM 1 TB
90NB17H4-M00JV0
19 Items
Modern alchemy
At the core of the ASUS Zenbook series is ASUS’ patented Ceraluminum™ technology — an industry-first innovation refined over four years for precise colors, hardness, and texture. It offers unmatched scratch resistance and longevity, inspired by the natural world. This high-tech ceramic, revered in aerospace and luxury watches, combines the lightness and hardness of ceramic with the malleability of metal, perfect for ultra-slim, durable designs.
ASUS Zenbook S16 UM5606GA-SR334W Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9, Processor model: 465, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. Operating system installed: Windows 11 Home. Product colour: White
At the core of the ASUS Zenbook series is ASUS’ patented Ceraluminum™ technology — an industry-first innovation refined over four years for precise colors, hardness, and texture. It offers unmatched scratch resistance and longevity, inspired by the natural world. This high-tech ceramic, revered in aerospace and luxury watches, combines the lightness and hardness of ceramic with the malleability of metal, perfect for ultra-slim, durable designs.
ASUS Zenbook S16 UM5606GA-SR334W Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9, Processor model: 465, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. Operating system installed: Windows 11 Home. Product colour: White
| Design | |
| Product type | Laptop |
| Product colour | White |
| Colour name | Scandinavian White |
| Form factor | Clamshell |
| Market positioning | Home |
| Certified refurbished | No |
| Display | |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 3K |
| Panel type | OLED |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Maximum display brightness (HDR) | 1100 cd/m² |
| Low Blue Light technology | Yes |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 1000 |
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen AI 9 |
| Processor generation | AMD Ryzen AI 400 Series |
| Processor model | 465 |
| Processor cores | 10 |
| Processor threads | 20 |
| Processor boost frequency | 5 GHz |
| Processor frequency | 2 GHz |
| Processor cache type | L2 & L3 |
| L3 cache | 24 MB |
| L2 cache | 10 MB |
| Processor socket | FP8 |
| Neural processor unit (NPU) | |
| Copilot+ PC | Yes |
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 73 TOPs |
| NPU performance up to | 50 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 880M |
| Audio | |
| Audio system | Smart Amp |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Copilot key | Yes |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Microsoft Copilot | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 83 Wh |
| Power | |
| AC adapter power | 68 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.4 A |
| AC adapter output voltage | 20 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Face recognition | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Certificates | |
| Compliance certificates | REACH |
| Certification | US MIL-STD 810H military-grade standard |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 353.6 mm |
| Depth | 243 mm |
| Height (front) | 1.19 cm |
| Height (rear) | 1.29 cm |
90NB17H4-M00JV0
19 Items
Data sheet
- Product type
- Laptop
- Product colour
- White
- Processor manufacturer
- AMD
- Maximum internal memory
- 32 GB
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- HDMI ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- Form factor
- Clamshell
- Display diagonal
- 40.6 cm (16")
- Display resolution
- 2880 x 1800 pixels
- Touchscreen
- Yes
- Processor family
- AMD Ryzen AI 9
- Processor model
- 465
- Processor frequency
- 2 GHz
- Internal memory
- 32 GB
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Optical drive type
- No
- Discrete graphics card
- No
- Discrete graphics card model
- Not available
- On-board graphics card
- Yes
- On-board graphics card model
- AMD Radeon 880M
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Operating system installed
- Windows 11 Home
- Weight
- 1.5 kg
- Mobile network connection
- No
- Numeric keypad
- No
- Battery capacity
- 83 Wh
- USB Type-C charging port
- Yes
