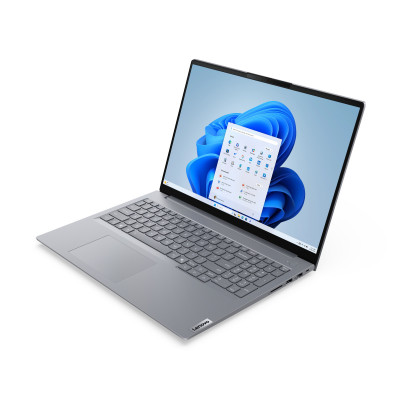

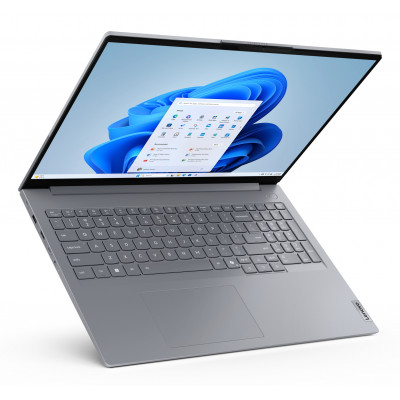

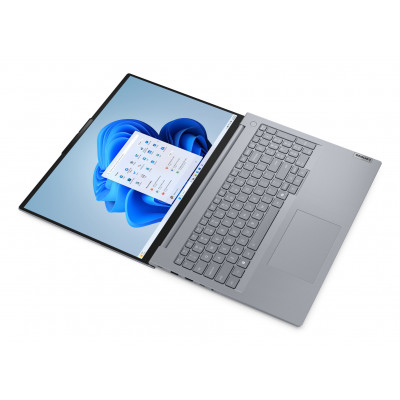

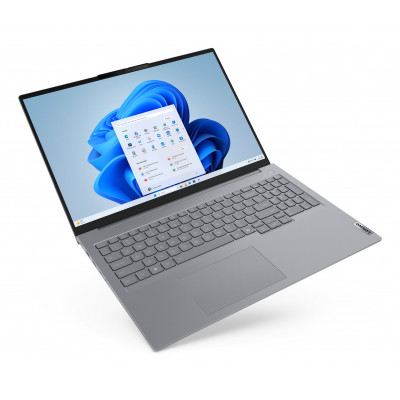

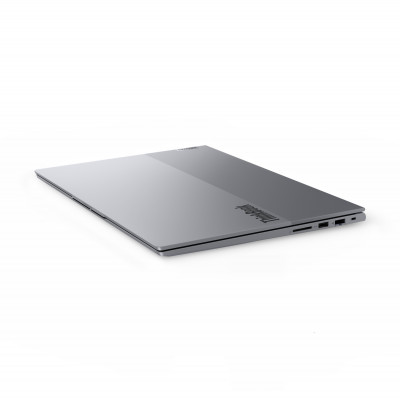

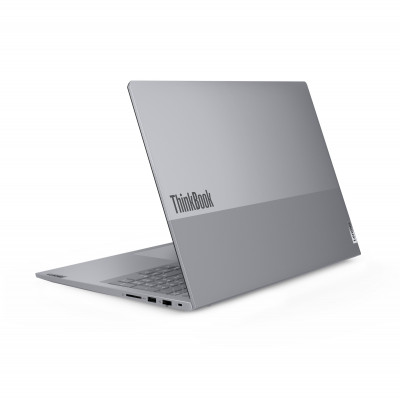

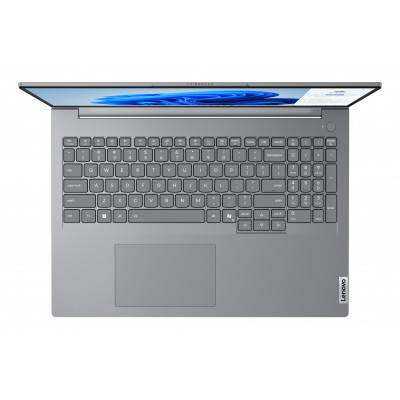

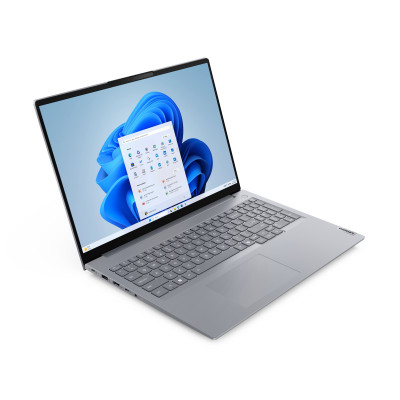

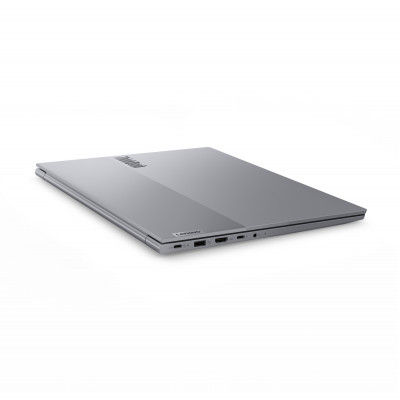

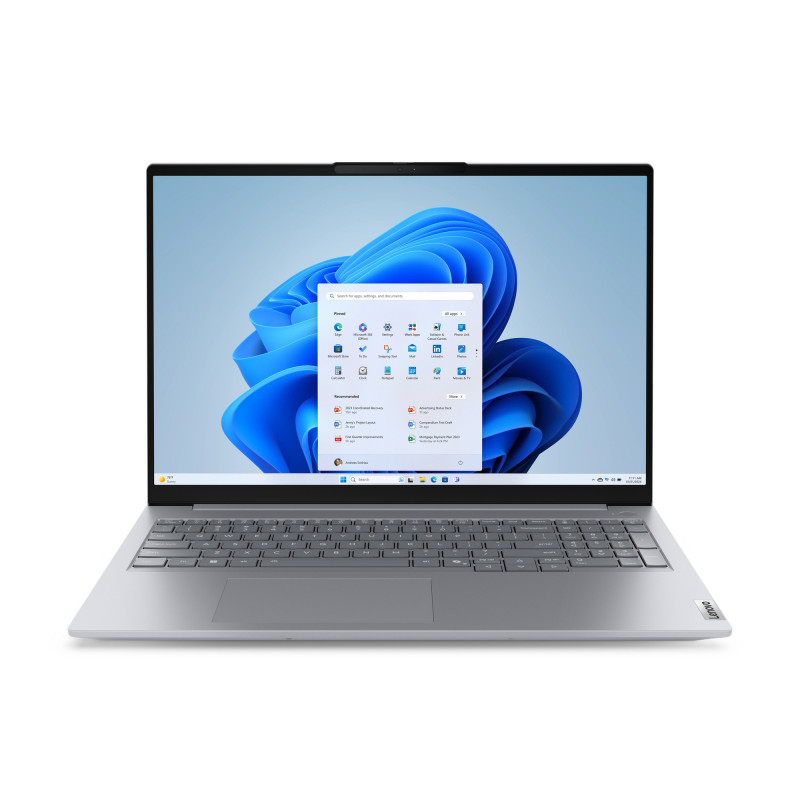

Lenovo ThinkBook 16 G8 IAL Intel Core Ultra 7 255H Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax)
21SK007BIX
38 Items
Lenovo ThinkBook 16 G8 IAL. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.7 kg
Design | |
Product type | Laptop |
Product colour | Grey |
Colour name | Arctic grey |
Form factor | Clamshell |
Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
Display | |
Display diagonal | 40.6 cm (16") |
Display resolution | 1920 x 1200 pixels |
Touchscreen | No |
HD type | WUXGA |
Panel type | IPS |
Native aspect ratio | 16:10 |
Anti-glare screen | Yes |
Display brightness | 300 cd/m² |
Colour gamut | 45% |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 1000:1 |
Processor | |
Processor manufacturer | Intel |
Processor family | Intel Core Ultra 7 |
Processor generation | Intel Core Ultra (Series 2) |
Processor model | 255H |
Processor cores | 16 |
Processor threads | 16 |
Processor boost frequency | 5.1 GHz |
Performance cores | 6 |
Efficient cores | 8 |
Low Power Efficient-cores | 2 |
Performance-core Max Turbo Frequency | 5.1 GHz |
Efficient-core Max Turbo Frequency | 4.4 GHz |
Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
Performance-core base frequency | 2 GHz |
Efficient-core base frequency | 1.5 GHz |
Low Power Efficient-core Base Frequency | 700 MHz |
Processor cache | 24 MB |
Maximum turbo power | 115 W |
Neural processor unit (NPU) | |
Neural processor unit (NPU) | Intel AI Boost |
Sparsity support | Yes |
Windows Studio effects support | Yes |
AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
Total processor performance up to | 96 TOPs |
NPU performance up to | 13 TOPs |
GPU performance up to | 74 TOPs |
Memory | |
Internal memory | 16 GB |
Internal memory type | DDR5-SDRAM |
Memory form factor | SO-DIMM |
Memory layout (slots x size) | 1 x 16 GB |
Memory slots | 2x SO-DIMM |
Maximum internal memory | 64 GB |
Memory channels | Single-channel |
Storage | |
Total storage capacity | 512 GB |
Storage media | SSD |
Total SSDs capacity | 512 GB |
Number of SSDs installed | 1 |
SSD capacity | 512 GB |
NVMe | Yes |
M.2 SSD size | 2242 (22 x 42 mm) |
Optical drive type | No |
Card reader integrated | Yes |
Compatible memory cards | SD |
Graphics | |
On-board graphics card | Yes |
Discrete graphics card | No |
Discrete graphics card model | Not available |
On-board GPU manufacturer | Intel |
On-board graphics card family | Intel Arc Graphics |
On-board graphics card model | Intel Arc 140T |
Audio | |
Audio chip | Realtek ALC3287 |
Audio system | Dolby Audio |
Number of built-in speakers | 2 |
Speaker power | 2 W |
Number of microphones | 2 |
Camera | |
Front camera | Yes |
Front camera HD type | Full HD |
Infrared (IR) camera | Yes |
Privacy camera | Yes |
Privacy type | Privacy shutter |
Network | |
Mobile network connection | No |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Antenna type | 2x2 |
Ethernet LAN | Yes |
Ethernet LAN data rates | 1000,100 Mbit/s |
Bluetooth | Yes |
Bluetooth version | 5.3 |
WWAN | Not installed |
Ports & interfaces | |
USB 2.0 ports quantity | 0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
Thunderbolt 4 ports quantity | 1 |
Intel® Thunderbolt 4 | Yes |
Combo headphone/mic port | Yes |
USB Type-C DisplayPort Alternate Mode | Yes |
USB Sleep-and-Charge | Yes |
USB Sleep-and-Charge ports | 1 |
Performance | |
Motherboard chipset | Intel SoC |
Keyboard | |
Pointing device | Touchpad |
Keyboard backlit | Yes |
Spill-resistant keyboard | Yes |
Keyboard language | Italian |
Software | |
Operating system installed | Windows 11 Pro |
Operating system architecture | 64-bit |
Operating system language | German, Dutch, English, French, Italian |
Trial software | Office |
Bundled software | Office Trial |
Battery | |
Battery technology | Lithium Polymer (LiPo) |
Battery capacity | 45 Wh |
Battery life (max) | 7.7 h |
Continuous video playback time | 13.1 h |
Fast charging | Yes |
Fast charging time (50%) | 30 min |
Power | |
AC adapter power | 65 W |
AC adapter frequency | 50/60 Hz |
AC adapter input voltage | 100 - 240 V |
USB Type-C charging port | Yes |
USB Power Delivery (USB PD) | Yes |
Security | |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Fingerprint reader | Yes |
Windows Hello | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Password protection | Yes |
Password protection type | HDD, Power on, Supervisor, User |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | 5 - 43 °C |
Operating relative humidity (H-H) | 8 - 95% |
Storage relative humidity (H-H) | 5 - 95% |
Maximum shipping altitude | 3048 m |
Certificates | |
Compliance certificates | RoHS |
Certification | TÜV Rheinland Low Blue Light (Software Solution) MIL-STD-810H military test passed |
Sustainability | |
Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
Weight & dimensions | |
Weight | 1.7 kg |
Width | 356 mm |
Depth | 253.5 mm |
Height | 17.5 mm |
Packaging content | |
AC adapter included | Yes |
