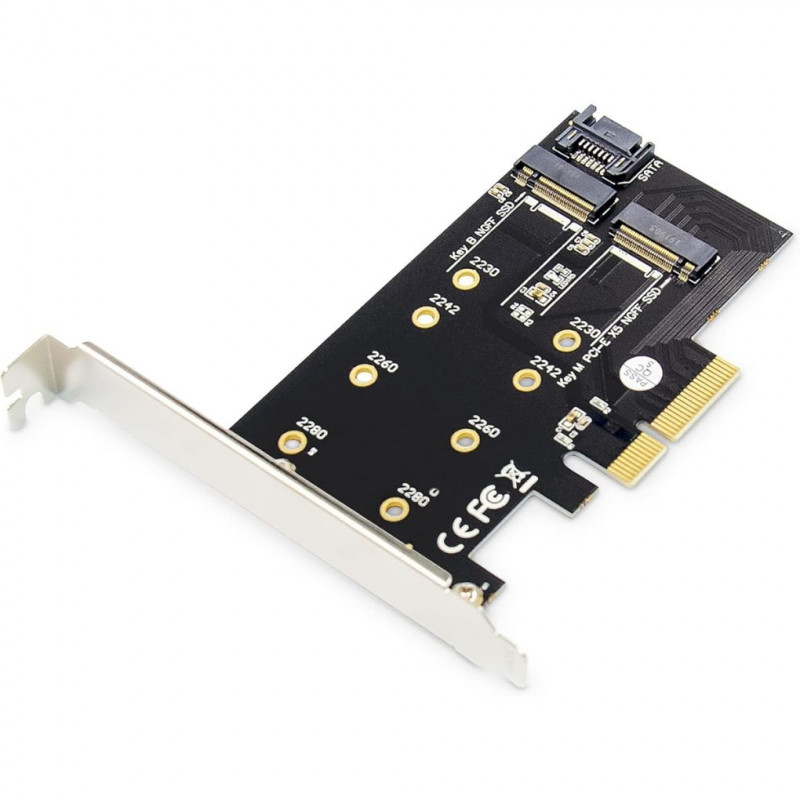

Dgitus M.2 NVME/SATA SSD PCI-Express 3.0 ADD-ON Card

The Digitus M.2 NGFF/NVMe SSD PCI Express Add-On Card DS-33170 is designed to upgrade your computer with fast and efficient M.2 storage using a PCIe slot. It supports both SATA-based and PCIe-based M.2 SSDs, allowing flexibility for system expansion and improved performance. Equipped with M-Key and B-Key interfaces, it ensures compatibility with a wide range of M.2 SSDs, making it suitable for desktops needing additional high-speed storage or replacing traditional drives with modern solid-state technology.

The card supports data transfer speeds of up to 6 Gbps, ensuring quick boot times, faster application loading and improved overall system responsiveness. Its plug-and-play design requires no external power supply when using PCIe-based M.2 drives and includes a SATA connector for SATA-protocol SSDs.

Ideal for users upgrading older systems, workstations or custom builds, this adapter provides a simple and efficient way to boost storage capabilities across Windows and Linux systems.

Specifications:

Model: DS-33170

Bus Type: PCIe x4 v3.0, Serial ATA v3.0

Interfaces: 1 × M.2 Key B port, 1 × M.2 Key M port, 1 × SATA 7-pin connector

Data Rate: Up to 6 Gbps

Function (B-Key): Supports M.2 NGFF SATA-protocol SSD; requires SATA cable to motherboard

Function (M-Key): Supports M.2 NGFF PCIe-protocol SSD; PCIe data transmission does not require SATA cable

Power: PCIe provides power for PCIe-protocol SSDs

System Compatibility: Windows 10, Windows 8, Windows 8.1, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu

Driver Support: Native drivers support PCIe NVMe

Key Features:

– Supports both SATA and PCIe M.2 SSDs

– Simple system upgrade through PCIe x4

– No external power supply required for PCIe SSDs

– Enhances overall system storage performance

– Compatible with major operating systems
