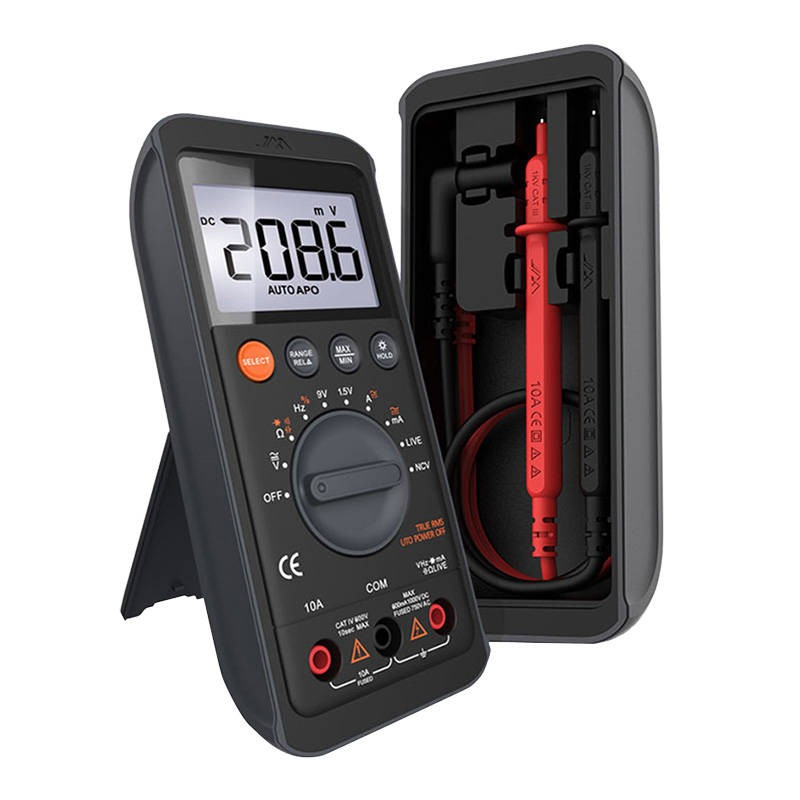

JIMI Home JM-G3401 Digital Universal Multimeter, True RMS, NCV, LCD, 5999 Counts
JIMI Home JM-G3401 Digital Universal Multimeter, True RMS, NCV, LCD, 5999 Counts
MZ-JM-G3401
4 Items
€19.90
€26.29
Save €6.39
Tax included
JIMI Home JM-G3401 is a digital universal multimeter designed for electrical work and everyday measuring tasks. It lets you measure voltage, resistance, capacitance, frequency, true RMS value and more, while the clear LCD display, large dial and buttons make operation convenient.
Key features:
- True RMS measurement for accurate readings in different conditions
- Automatic range selection for AC/DC voltage, current, resistance and more
- Non-contact voltage detection (NCV)
- Live Test function
- Battery voltage measurement
- Diode testing
- On/Off test
- Data storage
- Low voltage indicator
- Backlight for the screen
- Automatic power off after 15 minutes, with the option to disable it using the SELECT button
Measurement ranges
- DC voltage: 600mV / 6V / 60V / 600V / 1000V
- AC voltage: 500mV / 6V / 60V / 600V / 750V
- DC current: 60mA / 400mA / 6A / 10A
- AC current: 60mA / 400mA / 6A / 10A
- Resistance: 600O / 6kO / 60kO / 600kO / 6MO / 60MO
- Capacitance: 60nF / 600nF / 6µF / 60µF / 600µF / 6mF / 60mF
- Frequency: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz
- Temperature: 0°C to 40°C
Additional specifications:
- 5999 counts
- Sampling frequency: approx. 3 times per second
- Overload indicator: OL
- Power supply: 2 x 1.5V AAA batteries
- Weight: 340 g including batteries
- Dimensions: 153 x 70 x 53 mm
