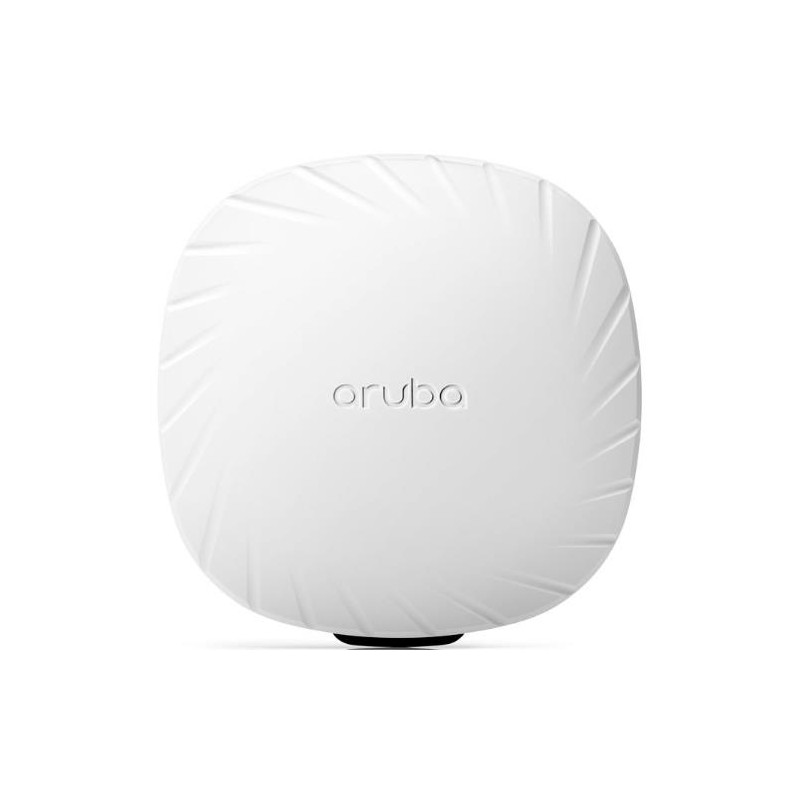

HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point with PoE, WPA3 Security, Gigabit Ethernet,

Product Overview

The HPE Aruba Networking AP-503-RW is a high-performance dual-radio access point designed for campus environments. Supporting the latest Wi-Fi 6 (802.11ax) standard, it optimizes wireless network speeds and efficiency for modern enterprise demands. Ideal for reliable, secure wireless connectivity in offices, schools, and large venues.

This access point operates on both 2.4 GHz and 5 GHz bands, delivering robust coverage through its omnidirectional internal antennas. It supports multiple Wi-Fi standards to ensure compatibility with a wide range of devices.

Specifications

• Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac
• Radio Configuration: Dual radio 2x2 MIMO
• Maximum Data Rate: Up to 1490 Mbps
• Frequency Bands: 2.4 GHz and 5 GHz simultaneous operation
• Antenna Type: Omnidirectional internal antennas with up to 4.8 dBi gain
• Ethernet Connectivity: 1 x Gigabit Ethernet LAN port (RJ-45)
• USB Port: 1 x USB 2.0 Type A port
• Power: Supports Power over Ethernet (PoE) for flexible installation
• Security: Supports WPA, WPA2, and the latest WPA3 security algorithms
• Environmental Operating Range: Temperature 0 to 40 °C, humidity 5% to 95%
• Physical Dimensions: 145 x 145 x 35 mm; Weight: 255 g
• Color: White
• LED Indicators: Reset, Status, System
• Additional Features: Trusted Platform Module (TPM) for enhanced security

Use Cases

Designed for campus and enterprise wireless networking, the AP-503-RW ensures high throughput and improved client density handling for seamless connectivity in office buildings, educational institutions, and corporate environments.

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.

Warranty

This product is covered by a 24-month official warranty managed directly by Maltazon, valid from the date of purchase.
