Lenovo 4Y37A93012 RAID Controller PCI Express 4.0 x8, 12 Gbit/s, Low Profile, RAID 0/1/10 Support, SAS3808 Chipset for

Product Overview

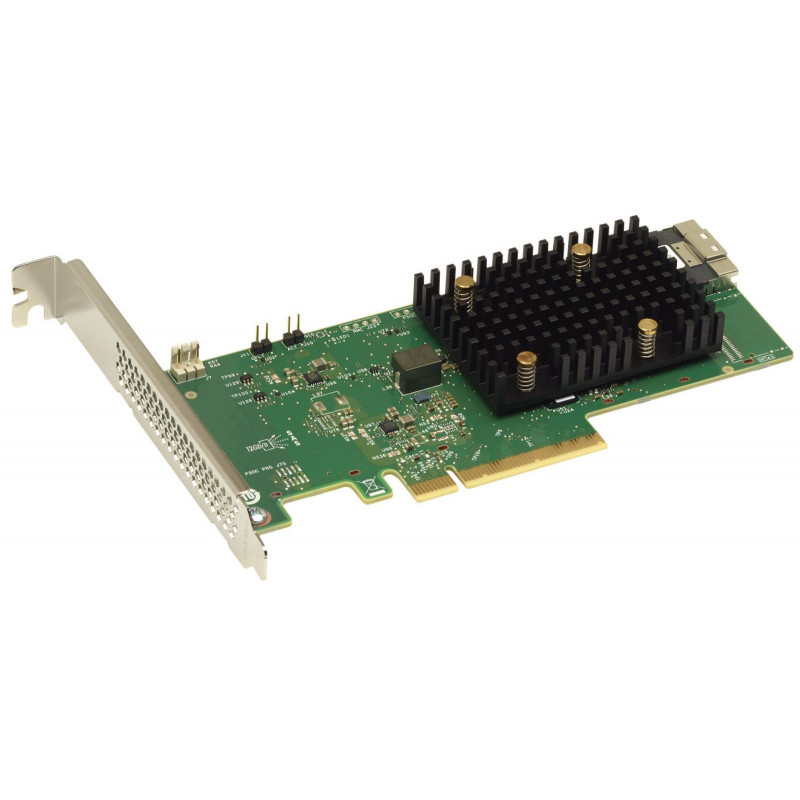

The Lenovo 4Y37A93012 is a high-performance RAID controller designed to provide reliable RAID management for small to medium business IT environments. It supports PCI Express 4.0 x8 interface, enabling data transfer rates up to 12 Gbit/s, suitable for enhancing storage solutions with SAS and SATA drives.

This low profile PCIe adapter is optimized for entry-level RAID configurations and offers RAID levels 0, 1, and 10 without cache support. It is ideal for deployment in enterprise servers requiring efficient data redundancy and performance.

Specifications

• Interface: PCI Express 4.0, PCIe x8 host interface
• RAID Levels Supported: 0, 1, 10
• Chipset: SAS3808
• Data Transfer Rate: Up to 12 Gbit/s
• Form Factor: Low Profile PCI Express adapter
• Drive Support: SATA and SAS SSD/HDD drives
• Number of Devices Supported: Up to 8 drives
• Features: Cacheless operation, JBOD support, hot-swap capability
• Certifications: FCC, ICES, VCCI, CISPR, EN/IEC UL 60950, RoHS, WEEE compliant
• Operating Conditions: 10 - 55 °C temperature, 20% - 90% humidity

Usage Scenarios

This Lenovo RAID controller is ideal for small to medium enterprise storage solutions requiring reliable RAID configurations with moderate throughput and data protection needs. It supports enhancing server storage reliability and performance in office or data centre environments.

Designed for integration into Lenovo ThinkSystem platforms or compatible systems supporting low profile PCIe cards.

Delivery Time

This product is available in our CTA warehouse. Once ordered, it will be transferred to Malta and delivered within approximately 8-12 days from the order date.

Warranty

This product is covered by a 24-month official warranty managed directly by Maltazon, valid from the date of purchase.
