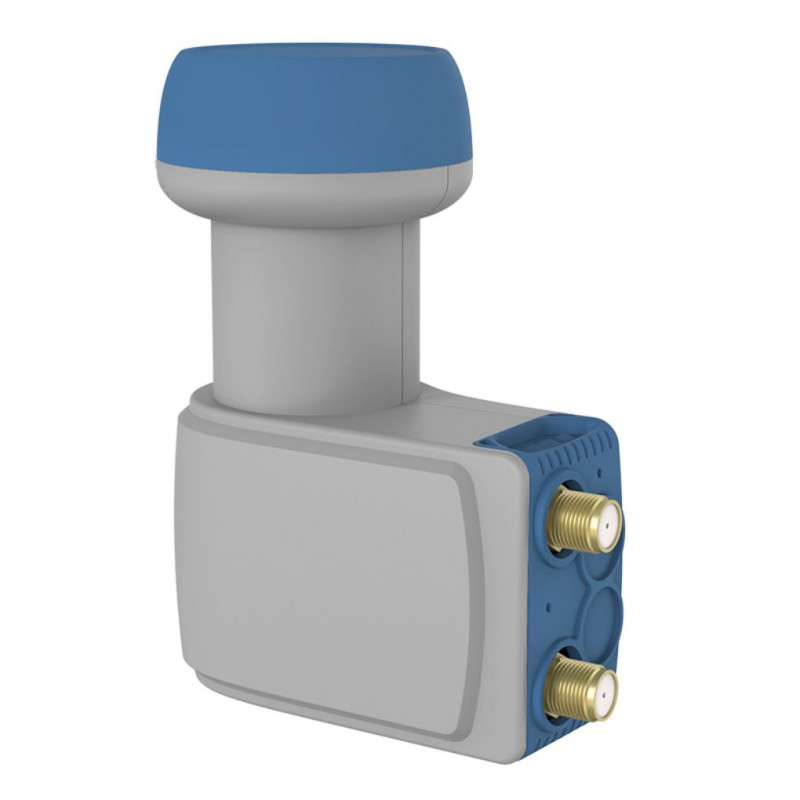

Maxital Universal Dual Twin LNB RED TWIN-R 2 Outputs 0.3dB Low Noise HD, 4K Satellite Converter with Gold F Connectors

The Maxital RED TWIN-R Universal Dual LNB is designed to deliver reliable and stable satellite signal reception for two independent satellite receivers or decoders from a single satellite dish. Featuring a low 0.3 dB noise figure, high signal gain, and an integrated LTE filter, it ensures excellent reception quality for SD, HD, and Full HD satellite broadcasts. Its standard 40 mm feed horn and gold-plated F connectors make installation simple while providing long-lasting and secure connections.

Specifications:

Brand: Maxital

Model: RED TWIN-R

Product Type: Universal Dual Satellite LNB

Number of Outputs: 2

Noise Figure: 0.3 dB

Input Frequency (Low Band): 10.7–11.7 GHz

Input Frequency (High Band): 11.7–12.75 GHz

Output Frequency (Low Band): 950–1950 MHz

Output Frequency (High Band): 1100–2150 MHz

Local Oscillator Frequency: 9.75 / 10.6 GHz

Gain: 60 dB

LTE Filter: 1800 MHz (40 dB minimum attenuation)

Polarity Switching: 10.5–14 V (Vertical), 16–20 V (Horizontal)

Power Supply Voltage: 10.5–20 V

Maximum Current Consumption: 130 mA

Impedance: 75 Ohm

Connector Type: Gold Type-F

Feed Diameter: 40 mm

Dimensions: 105 × 65 × 133 mm

Weight: 165 g

Compliance: CE, RoHS, RED

Key features:

Universal Twin LNB with two independent outputs

Supports two satellite receivers or decoders

Low 0.3 dB noise figure for improved signal quality

Compatible with SD, HD and Full HD satellite channels

High 60 dB signal gain

Integrated LTE filter minimizes mobile signal interference

Gold-plated Type-F connectors for reliable connectivity

Standard 40 mm feed diameter for universal compatibility

Weather-resistant construction for outdoor installation

Easy to install on most satellite dishes

In the box:

Maxital RED TWIN-R Universal Dual LNB

Protective connector caps

User Manual
