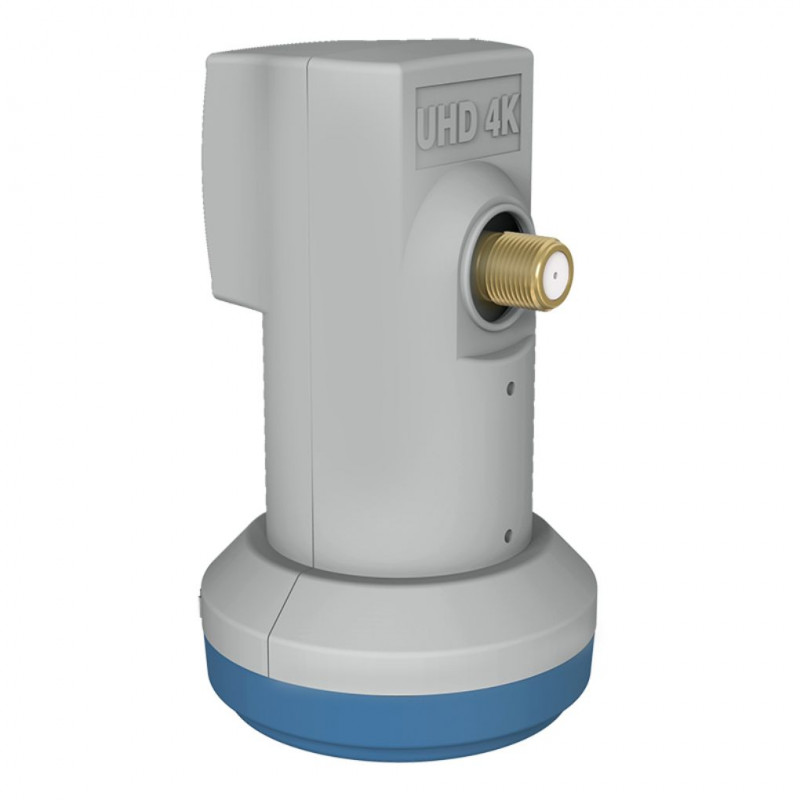

Maxital Universal Single LNB RED SINGLE-R 0.3dB Low Noise HD 4K Satellite Converter with Gold F-Type Connector

The Maxital RED SINGLE-R Universal Single LNB is designed to provide stable and high-quality satellite signal reception for a single receiver or decoder. With a low 0.3 dB noise figure, high signal gain, and integrated LTE filter, it delivers reliable performance for SD, HD, Full HD, and UHD 4K satellite broadcasts. Its compact design, standard 40 mm feed horn, and gold-plated F-Type connector make installation simple while ensuring a secure and long-lasting connection.

Specifications:

Brand: Maxital

Model: RED SINGLE-R

Product Type: Universal Single Satellite LNB

Number of Outputs: 1

Noise Figure: 0.3 dB

Input Frequency (Low Band): 10.7–11.7 GHz

Input Frequency (High Band): 11.7–12.75 GHz

Output Frequency (Low Band): 950–1950 MHz

Output Frequency (High Band): 1100–2150 MHz

Local Oscillator Frequency: 9.75 / 10.6 GHz

Gain: 60 dB

LTE Filter: 1800 MHz (40 dB minimum attenuation)

Polarity Switching: 10.5–14 V (Vertical), 16–20 V (Horizontal)

Power Supply Voltage: 10.5–20 V

Maximum Current Consumption: 100 mA

Impedance: 75 Ohm

Connector Type: Gold F-Type

Feed Diameter: 40 mm

Dimensions: 61 × 61 × 101 mm

Weight: 83 g

Compliance: CE, RoHS, RED

Key features:

Universal Single LNB with one output

Ideal for one satellite receiver or decoder

Compatible with SD, HD, Full HD and UHD 4K broadcasts

Low 0.3 dB noise figure for improved signal quality

High 60 dB signal gain

Integrated LTE filter reduces mobile signal interference

Gold-plated F-Type connector for reliable connectivity

Standard 40 mm feed diameter for universal compatibility

Compact, lightweight and weather-resistant design

Easy installation on most satellite dishes

In the box:

Maxital RED SINGLE-R Universal Single LNB

Protective connector cap

User Manual
