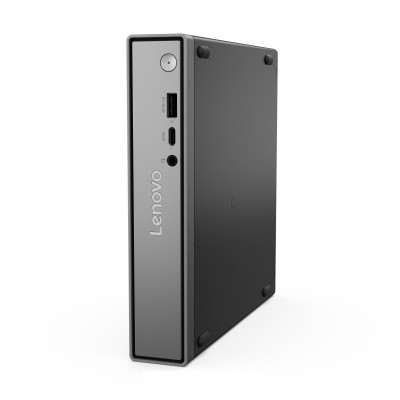

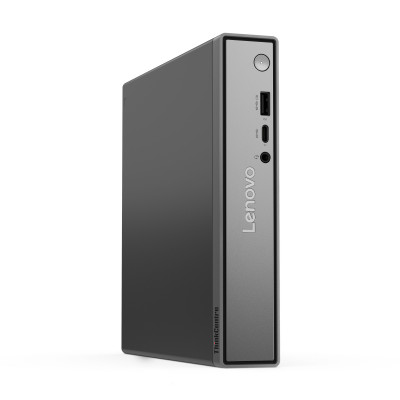

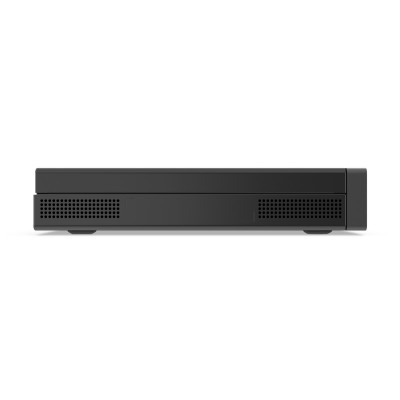

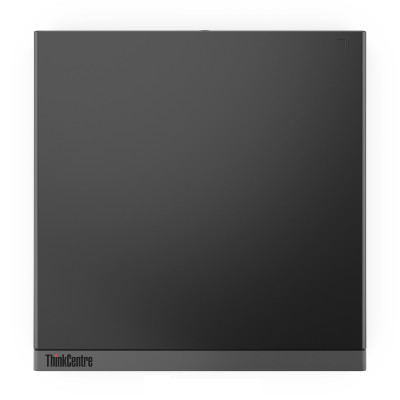

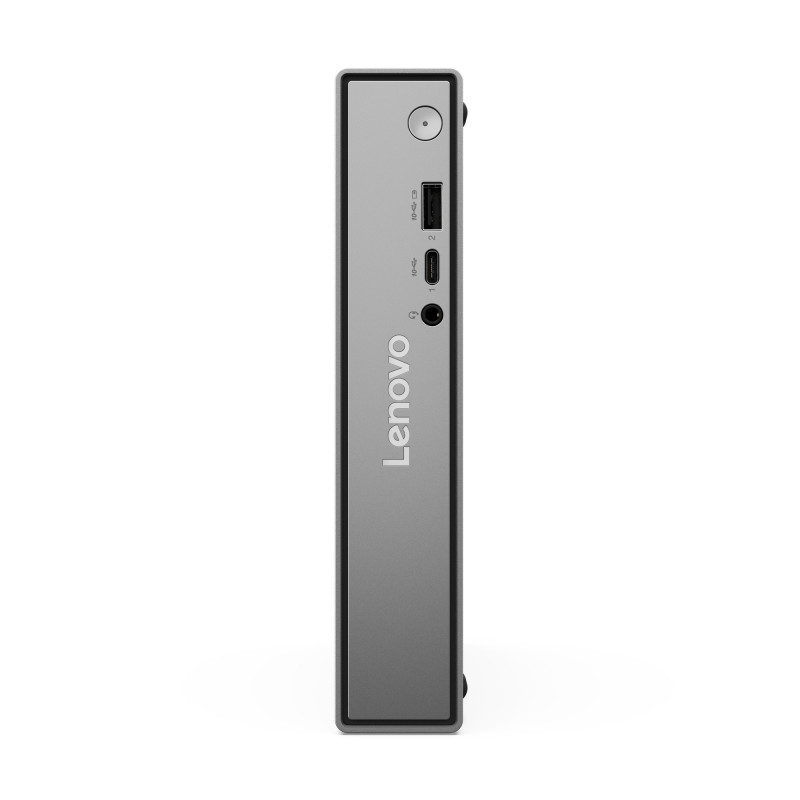

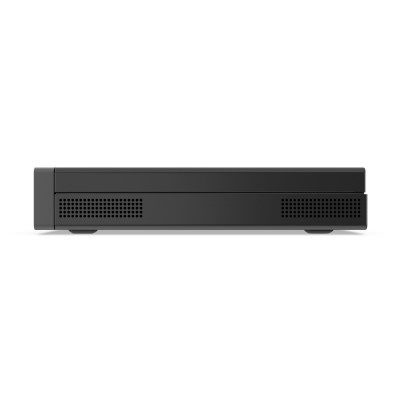

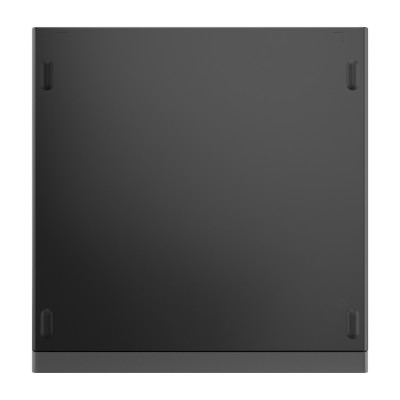

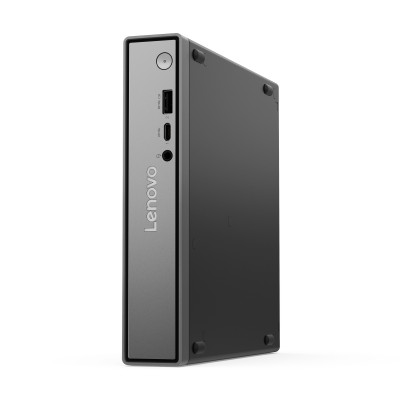

Lenovo ThinkCentre neo 50q Gen 6 Copilot+ PC Intel Core Ultra 5 226V 16 GB LPDDR5x-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
13HR000JIX
282 Items
Lenovo ThinkCentre neo 50q Gen 6. Processor family: Intel Core Ultra 5, Processor model: 226V. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 65 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.1 kg. Product colour: Black
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 226V |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.1 GHz |
| Low Power Efficient-core Base Frequency | 2100 MHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 37 W |
| Neural processor unit (NPU) | |
| Copilot+ PC | Yes |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 97 TOPs |
| NPU performance up to | 40 TOPs |
| GPU performance up to | 53 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory data transfer rate | 8533 MT/s |
| Storage | |
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics 130V |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Realtek |
| WLAN controller model | Realtek RTL8852BE |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

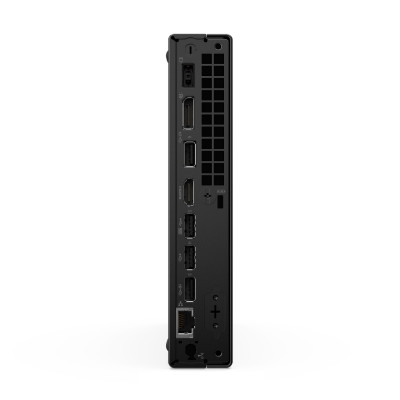

| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Design | |
| Chassis type | Mini PC |
| Colour name | Raven black |
| Volume | 1 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Product type | Mini PC |
| Motherboard chipset | Intel SoC |
| Built-in speaker(s) | Yes |
| Password protection | Yes |
| Password protection type | HDD |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system language | English, French, German, Dutch, Italian |
| Power | |
| Power supply | 65 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Certificates | |
| Certification | ENERGY STAR 9.0 RoHS compliant TCO Certified, generation 10 |
| Weight & dimensions | |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.1 kg |
| Packaging data | |
| Package width | 242 mm |
| Package depth | 250 mm |
| Package height | 187 mm |
| Package weight | 2.6 kg |
| Packaging content | |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
