Description

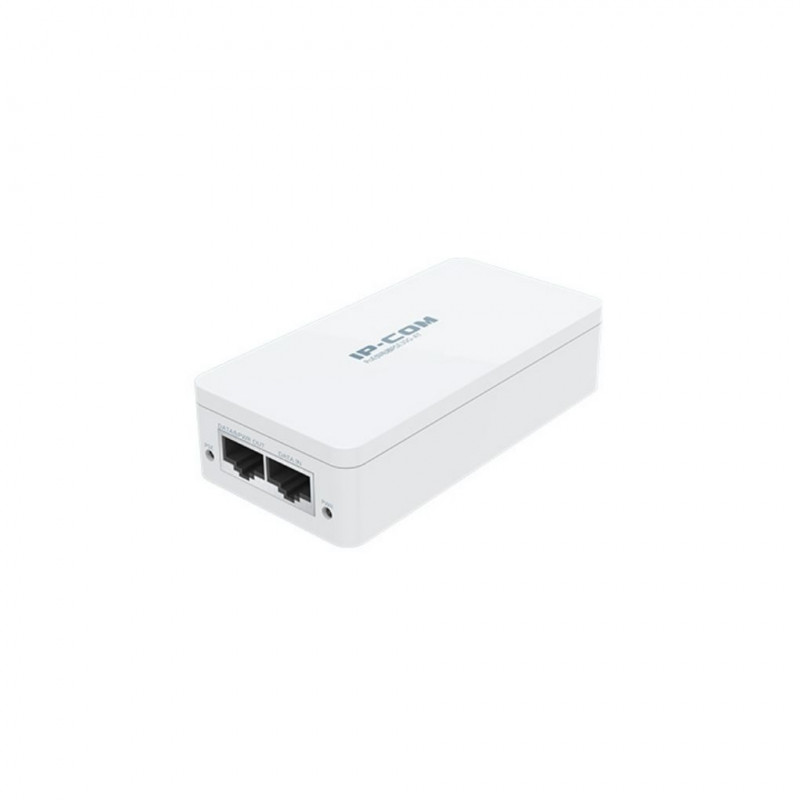

The IP-COM PSE30G-AT is a compact and reliable Gigabit PoE injector designed to deliver both power and data over a single Ethernet cable. Supporting IEEE 802.3af and 802.3at standards, it provides up to 30.6W of power, making it ideal for IP cameras, wireless access points, VoIP phones, and other PoE-enabled network devices.
With Plug & Play installation and a maximum transmission distance of up to 100 meters, this injector ensures a stable and efficient network setup without the need for additional power supplies.
Specifications:
Product type: PoE injectorColor: White
PoE standard support: IEEE 802.3af, IEEE 802.3at
Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Maximum output power: 30.6 W
Maximum operating distance: 100 m
Ethernet interface type: Fast Ethernet, Gigabit EthernetEthernet ports: 2 x RJ-45
Ethernet speed: 10/100/1000 Mbit/s
Power over Ethernet support: YesPlug & Play: Yes
Installation: Easy installation
Operating temperature: 0 °C to 40 °C
Storage temperature: -40 °C to 70 °C
Operating humidity: 10% to 90%
Storage humidity: 5% to 90%
Dimensions and weight:
Width: 131 mm
Depth: 60 mm
Height: 33 mm
Key features:
Gigabit PoE injector with up to 30.6W output
Supports IEEE 802.3af and 802.3at standards
Power and data transmission over a single Ethernet cable
Plug & Play operation with no configuration required
Suitable for IP cameras, access points, and VoIP devices
In the box:
IP-COM PSE30G-AT PoE injectorUser manual
