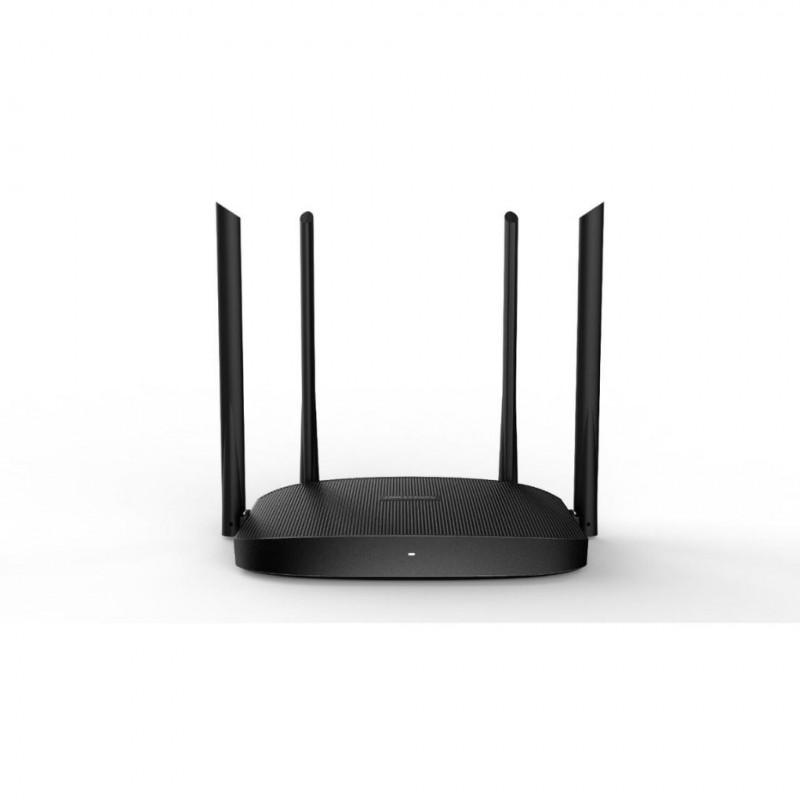

Hikvision DS-3WR12GC AC1200 Dual-band WiFi5 Router with 867Mbps 5GHz & 300Mbps 2.4GHz, 3x Gigabit LAN & 1x Gigabit WAN Ports

The Hikvision DS-3WR12GC-E is an AC1200 dual-band wireless router designed to deliver stable and high-speed connectivity for home and small office environments. Operating on both 2.4 GHz and 5 GHz bands, it provides combined wireless speeds of up to 1200 Mbps, ensuring smooth streaming, online gaming, and reliable multi-device connections.
Equipped with external high-gain antennas, MU-MIMO technology, and Gigabit Ethernet ports, this router offers enhanced coverage, efficient data handling, and fast wired connections. Advanced security features and easy management make it a practical and cost-effective networking solution.

Specifications:

• Product type: Desktop wireless router




• Wi-Fi standard: Wi-Fi 5 (802.11ac)




• Wireless standards supported: 802.11a, 802.11g, 802.11n, 802.11ac




• Wi-Fi bands: Dual-band 2.4 GHz / 5 GHz




• Maximum WLAN data rate: 867 Mbps




• WLAN data rate 2.4 GHz: up to 300 Mbps




• WLAN data rate 5 GHz: up to 867 Mbps




• MU-MIMO technology: Yes




• Antenna type: 2x2




• Antenna design: External




• Antenna gain: up to 5 dBi




• Ethernet LAN: Yes




• Ethernet interface type: Gigabit Ethernet




• Ethernet LAN ports (RJ-45): 4




• Ethernet LAN speed: 10/100/1000 Mbps




• WAN connection type: RJ-45 Ethernet




• DHCP server: Yes




• Reset button: Yes




• WPS push button security: Yes




• Firmware upgradable: Yes




• Guest access: Yes




• Access scheduling: Yes




• System event log: Yes




• Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK




• Maximum TX power 2.4 GHz: 20 dBm




• Maximum TX power 5 GHz: 23 dBm




• Power supply type: DC




• Output voltage: 9 V




• Output current: 1 A




• External power adapter: Yes




• Operating temperature: 0 °C to 40 °C




• Storage temperature: -40 °C to 70 °C




• Operating humidity: 10% to 90%




• Storage humidity: 5% to 90%

Dimensions and weight:

• Width: 247.4 mm




• Height: 154.8 mm




• Depth: 213.3 mm




• Weight: 238 g

Packaging data:

• Products included: 1 unit




• Package height: 290 mm




• Package width: 306 mm




• Package depth: 59 mm

Key features:

• AC1200 dual-band WiFi for balanced speed and coverage




• External high-gain antennas for extended wireless range




• MU-MIMO technology for improved multi-device performance




• 4 Gigabit Ethernet ports for fast wired connections




• WPA/WPA2 security with WPS support




• Firmware upgradable for long-term usability

In the box:

• Hikvision DS-3WR12GC-E wireless router




• External antennas




• Ethernet LAN cable (RJ-45)




• Quick installation guide
