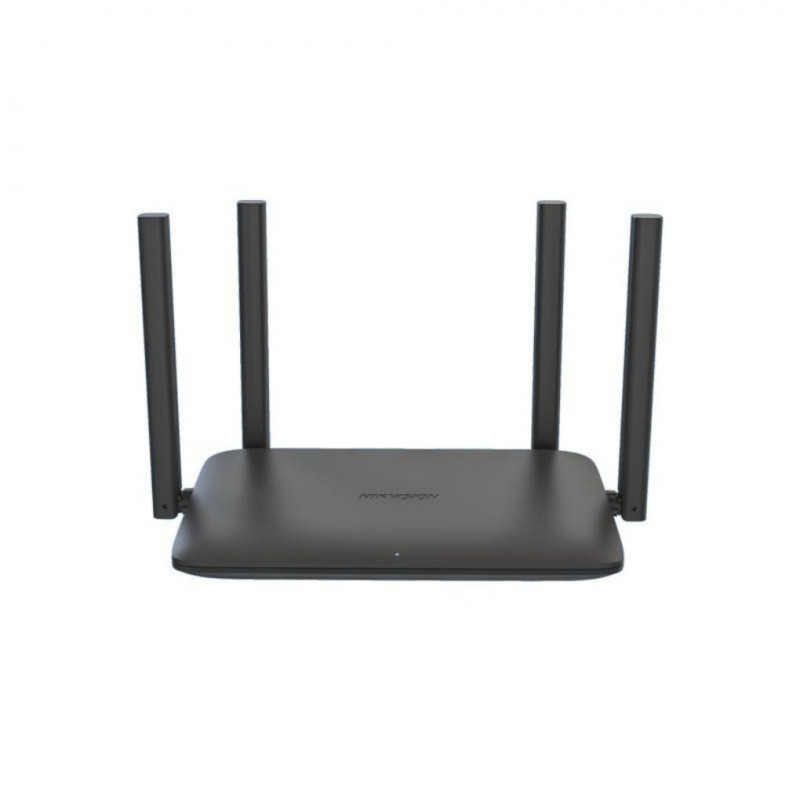

Hikvision DS-3WR15X AX1500M Dual-Band WiFi 6 Router, 5GHz 1201Mbps + 2.4GHz 300Mbps, 3×Gigabit LAN Ports, 1×Gigabit WAN Port, Ad

The Hikvision DS-3WR15X is a high-performance AX1500 wireless router featuring WiFi 6 technology, designed to deliver faster speeds, lower latency, and improved capacity for modern home and office networks.
With dual-band operation on 2.4 GHz and 5 GHz, MU-MIMO support, and Gigabit Ethernet ports, this router ensures stable connectivity for streaming, gaming, smart home devices, and remote work. External high-gain antennas enhance wireless coverage, while advanced security protocols including WPA3 provide strong network protection.

Specifications:

• Product type: Desktop / pole-mounted wireless router




• Wi-Fi standard: Wi-Fi 6 (802.11ax)




• Wireless standards supported: 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax




• Wi-Fi bands: Dual-band 2.4 GHz / 5 GHz




• Maximum WLAN data rate: 1501 Mbps




• WLAN data rate 5 GHz: up to 1201 Mbps




• WLAN data rate 2.4 GHz: up to 300 Mbps




• MU-MIMO technology: Yes




• Antenna design: External




• Antenna quality: 4




• Ethernet LAN: Yes




• Ethernet interface type: Gigabit Ethernet




• Ethernet LAN ports (RJ-45): 4




• Ethernet LAN speed: 10/100/1000 Mbps




• WAN connection type: RJ-45 Ethernet




• DHCP server: Yes




• Reset button: Yes




• Web-based management: Yes




• Firmware upgradable: Yes




• LED indicators: Yes




• Guest access: Yes




• Access scheduling: Yes




• Security algorithms: WPA-PSK2, WPA2-PSK, WPA3-SAE




• System event log: Yes




• Power supply type: DC




• Output voltage: 12 V




• Output current: 1 A




• External power adapter: Yes




• Operating temperature: 0 °C to 40 °C




• Storage temperature: -40 °C to 70 °C




• Operating humidity: 10% to 90%




• Storage humidity: 5% to 95%

Dimensions and weight:

• Width: 241.3 mm




• Height: 140.8 mm




• Depth: 156.3 mm




• Weight: 245 g

Packaging data:

• Package width: 380 mm




• Package height: 285 mm




• Package depth: 73 mm




• Package weight: 790 g

Key features:

• WiFi 6 AX1500 for faster and more efficient wireless performance




• Dual-band connectivity with optimized traffic management




• MU-MIMO technology for multiple connected devices




• 4 Gigabit Ethernet LAN ports for high-speed wired connections




• Advanced security with WPA3 support




• External antennas for extended coverage

In the box:

• Hikvision DS-3WR15X wireless router




• AC/DC power adapter




• Ethernet LAN cable (RJ-45)




• Quick installation guide
