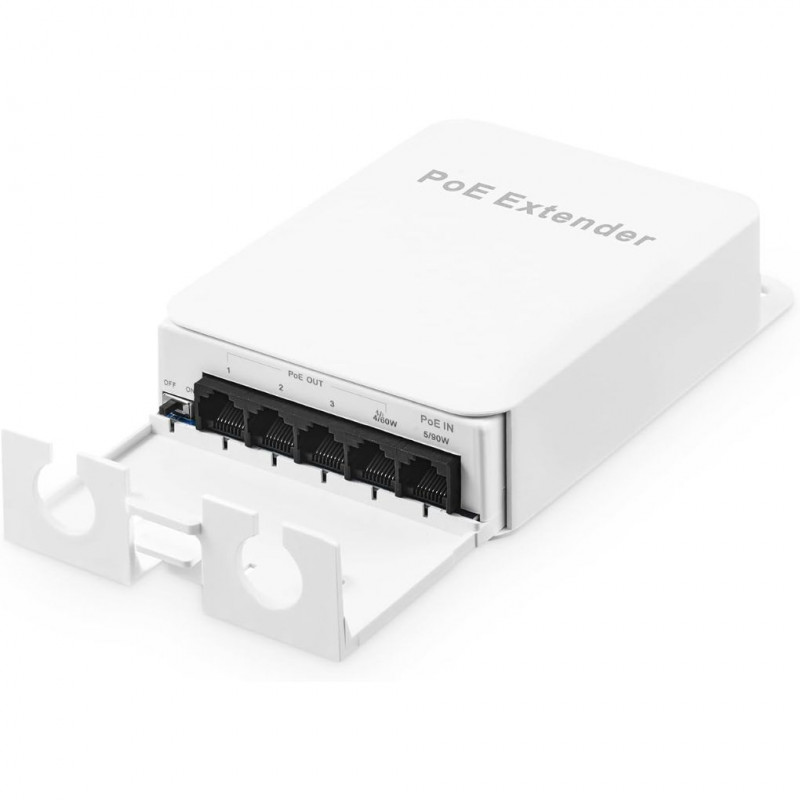

Binardat Outdoor PoE Extender Switch 1 In 4 Out IEEE802.3af/at/bt 90W Waterproof 100Mbps Wall Mount Plug Play

The Binardat Outdoor PoE Extender Switch is a reliable and efficient solution designed to expand your network and power multiple PoE devices using a single PoE input. Featuring 1 PoE input and 4 PoE output ports, this extender allows you to connect devices such as IP cameras, access points, and VoIP phones without requiring additional power sources.

Powered directly through PoE, it eliminates the need for AC power, making installation simpler and more flexible, especially in remote or outdoor environments. Supporting IEEE 802.3af/at/bt standards, the device delivers up to 90W input power, distributing energy efficiently across connected devices with up to 30W per port and a high-power 60W output on one port.

Built with durable industrial-grade ABS material, the extender is weather-resistant and designed for outdoor use. Its sealed enclosure protects against dust, water, and harsh environmental conditions, making it ideal for installations in warehouses, garages, attics, or outdoor surveillance systems.

With plug-and-play functionality, automatic device detection, and LED indicators for port status, the extender ensures quick deployment without any configuration. The compact design and wall-mount support make it easy to install in various locations, while additional features like VLAN mode and extended transmission up to 250 meters enhance its versatility.

Specifications:

•
  Brand: Binardat



•
  Type: Outdoor PoE extender switch



•
  Ports: 1 PoE input, 4 PoE output



•
  Speed: 10/100 Mbps



•
  PoE standards: IEEE 802.3af/at/bt



•
  Maximum input power: 90W



•
  Output power: Ports 1-3 up to 30W, Port 4 up to 60W



•
  Voltage: 44-57 Vdc



•
  Material: Industrial ABS polymer



•
  Installation: Wall mount



•
  Usage: Indoor and outdoor



•
  Color: White


Key features:

•
  1 PoE input and 4 PoE output ports for easy expansion



•
  No AC power required, powered directly via PoE



•
  Supports IEEE 802.3af/at/bt standards



•
  High power capacity up to 90W input



•
  Weather-resistant design for outdoor environments



•
  Plug and play with no configuration needed



•
  Automatic device detection for convenience



•
  LED indicators for port status monitoring



•
  Supports VLAN mode and up to 250m extension



•
  Compact and wall-mountable design



•
  Suitable for cameras, access points, and PoE devices


In the box:

•
  PoE extender switch



•
  Mounting accessories



•
  User manual
