Description

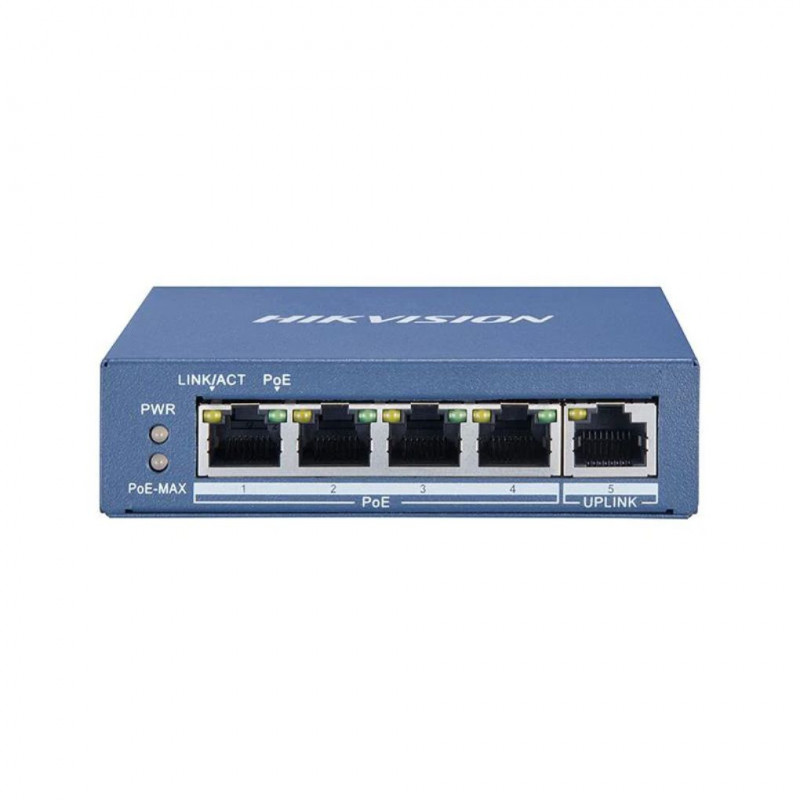

The Hikvision DS-3E0505P-E is a compact unmanaged Gigabit PoE switch designed for small surveillance and networking installations. It features 4 Gigabit PoE ports compliant with IEEE 802.3af/at standards and 1 Gigabit RJ45 uplink port, delivering a total PoE power budget of up to 60W. Its fanless metal housing ensures silent operation, reliable heat dissipation, and long-term stability, making it ideal for IP cameras, access points, and other PoE-powered devices.
Specifications:
Product type: Unmanaged PoE network switchNetwork layer: L2
Total ports: 5 × RJ45 Gigabit Ethernet (10/100/1000 Mbps)
PoE ports: 4 × IEEE 802.3af/at
PoE power per port: Up to 30 W
Total PoE power budget: 60 W
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entriesPacket buffer: 1 MB
Transmission method: Store-and-forwardAuto MDI/MDI-X: Yes
Cooling system: Fanless
Housing material: Metal
Colour: Blue
Power input: DC 48 V / 1.35 A
Maximum power consumption: 65 W
Operating temperature: -10 °C to 55 °C
Storage temperature: -40 °C to 85 °C
Operating humidity: 5% – 95%
Dimensions (W × D × H): 105 × 83.1 × 27.6 mmWeight: 260 g
Key features:
4 Gigabit PoE ports with up to 60 W total power budget
1 Gigabit uplink port for network backbone connection
IEEE 802.3af/at PoE compliant
Fanless metal design for silent and reliable operation
Plug-and-play unmanaged switch
Ideal for IP cameras and small PoE networks
In the box:
Hikvision DS-3E0505P-E switchUser documentation
