Product Overview

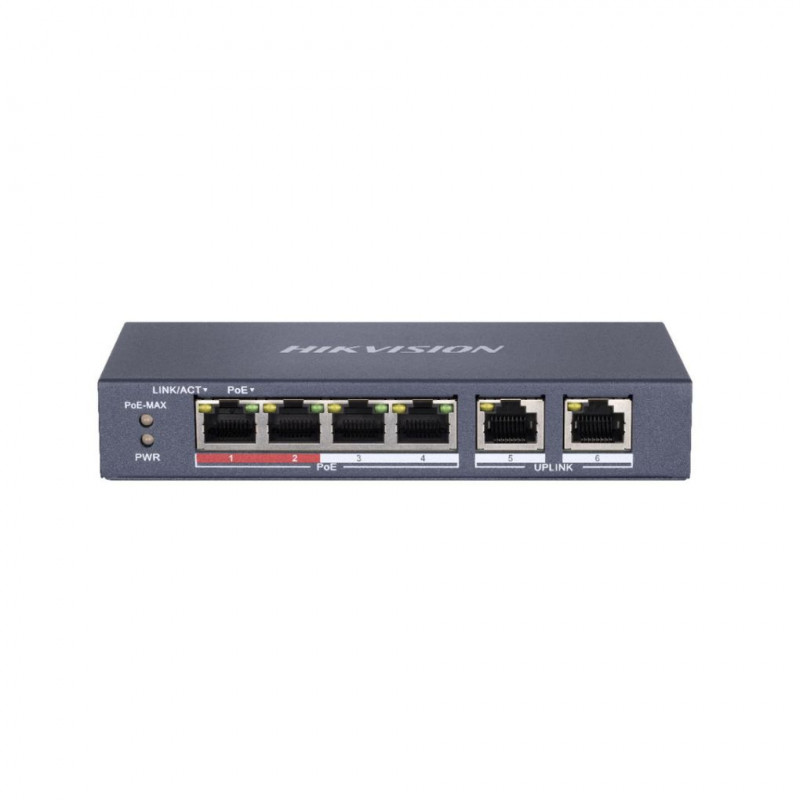

The Hikvision DS-3E0106P-E/M is an unmanaged Fast Ethernet switch designed for small-scale networking and surveillance applications. It features 4 Power over Ethernet (PoE) ports compliant with IEEE 802.3af/at standards, enabling simultaneous power and data transmission to connected IP cameras and PoE-enabled devices.
Its compact metal enclosure with fanless design ensures silent and reliable operation, suitable for office environments or small network installations. The plug-and-play function allows for straightforward setup without requiring complex configuration.
Specifications
- Product type: Unmanaged PoE network switch
- Ports: 6 x RJ45 Fast Ethernet (10/100 Mbps); 4 PoE-enabled, 2 uplink
- PoE Standard: IEEE 802.3af/at
- PoE Power per port: Up to 30 W
- Total PoE power budget: 35 W
- Switching capacity: 1.6 Gbit/s
- MAC address table: 4000 entries
- Transmission mode: Full duplex
- Auto MDI/MDI-X support: Yes
- Cooling: Fanless for silent operation
- Housing: Durable metal, blue colour
- Power input: DC 48 V / 0.8 A
- Maximum power consumption: 38 W
- Operating temperature range: -10 °C to 40 °C
- Dimensions (W×D×H): 145 × 68.5 × 25.6 mm
- Weight: 265 g
Key Features
- Four Fast Ethernet PoE ports supporting 802.3af/at standards for powering devices
- Two additional uplink ports for extended network connectivity
- Fanless metal design ensuring silent and robust performance
- Plug-and-play operation ideal for IP camera setups and basic PoE device networks
- Compact form factor suitable for small office or home networking environments
Package Contents
- Hikvision DS-3E0106P-E/M unmanaged PoE switch
- User documentation
Delivery Time
This product is available in Malta and can be delivered within 60 minutes in selected areas. Standard delivery across Malta and Gozo is available within 24/48 hours.
