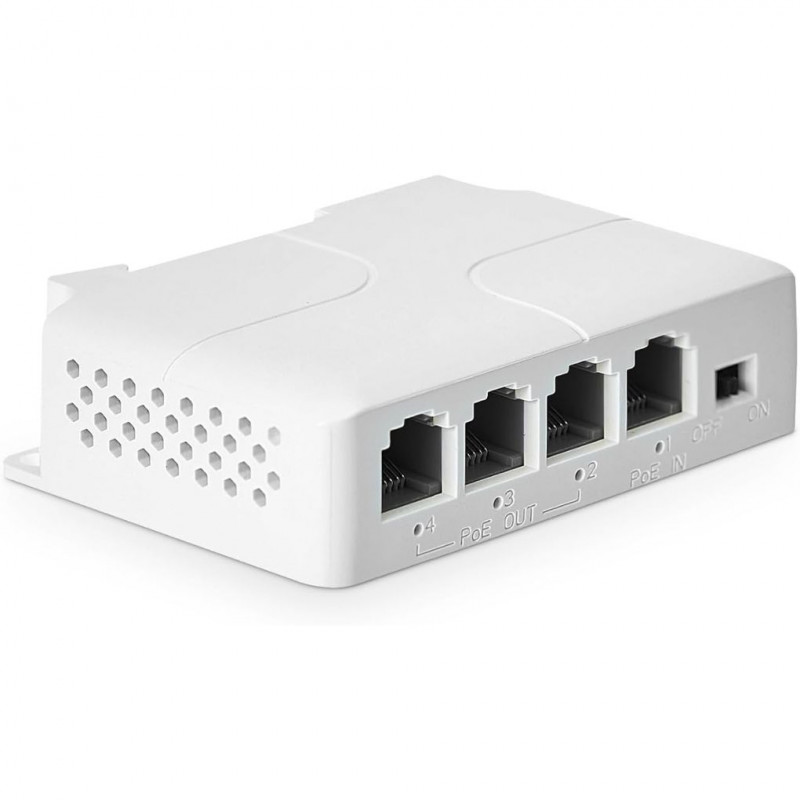

YuLinca 4 Port PoE Extender 1 In 3 Out IEEE802.3af/at 30W 10/100Mbps PoE+ Switch Wall DIN Rail Mount

The YuLinca 4 Port PoE Extender is a compact and efficient solution designed to expand your PoE network with ease. Featuring 1 PoE input and 3 PoE output ports, it allows you to power and connect multiple devices such as IP cameras, VoIP phones, and access points using a single Ethernet cable.

This PoE passthrough switch operates at 10/100Mbps speeds and supports IEEE 802.3af/at standards, delivering reliable power distribution without the need for an external power supply. With a maximum input of 30W and efficient output allocation, it ensures stable performance for connected devices.

Designed for flexibility, the extender supports both wall mounting and DIN rail installation, making it ideal for industrial setups, security systems, and structured network environments. Its compact size saves space while offering powerful functionality.

With plug-and-play operation and automatic device detection, the YuLinca PoE extender requires no configuration, making installation quick and hassle-free. It also supports VLAN mode and extended transmission up to 250 meters, providing a cost-effective way to increase PoE coverage in both indoor and outdoor environments.

Specifications:

•
  Brand: YuLinca



•
  Type: PoE extender / passthrough switch



•
  Ports: 1 PoE input, 3 PoE output



•
  Speed: 10/100 Mbps



•
  PoE standards: IEEE 802.3af/at



•
  Maximum input power: 30W



•
  Output power: Ports 2-4 up to 24W total (approx. 8W per port)



•
  Voltage: 44-57 Vdc



•
  Transmission distance: Up to 100m, extendable to 250m at 10Mbps



•
  Installation: Wall mount and DIN rail



•
  Color: White


Key features:

•
  1 PoE input and 3 PoE output ports for network expansion



•
  Powered directly via PoE, no external power supply required



•
  Supports IEEE 802.3af/at PoE standards



•
  Plug and play with automatic device detection



•
  Compact design for easy installation in tight spaces



•
  Supports wall mount and DIN rail mounting



•
  Extends PoE transmission up to 250 meters



•
  VLAN mode support for network optimization



•
  Suitable for cameras, phones, and PoE-enabled devices



•
  Ideal for security, industrial, and networking applications


In the box:

•
  PoE extender



•
  User manual
